1,078.99 1,078.99

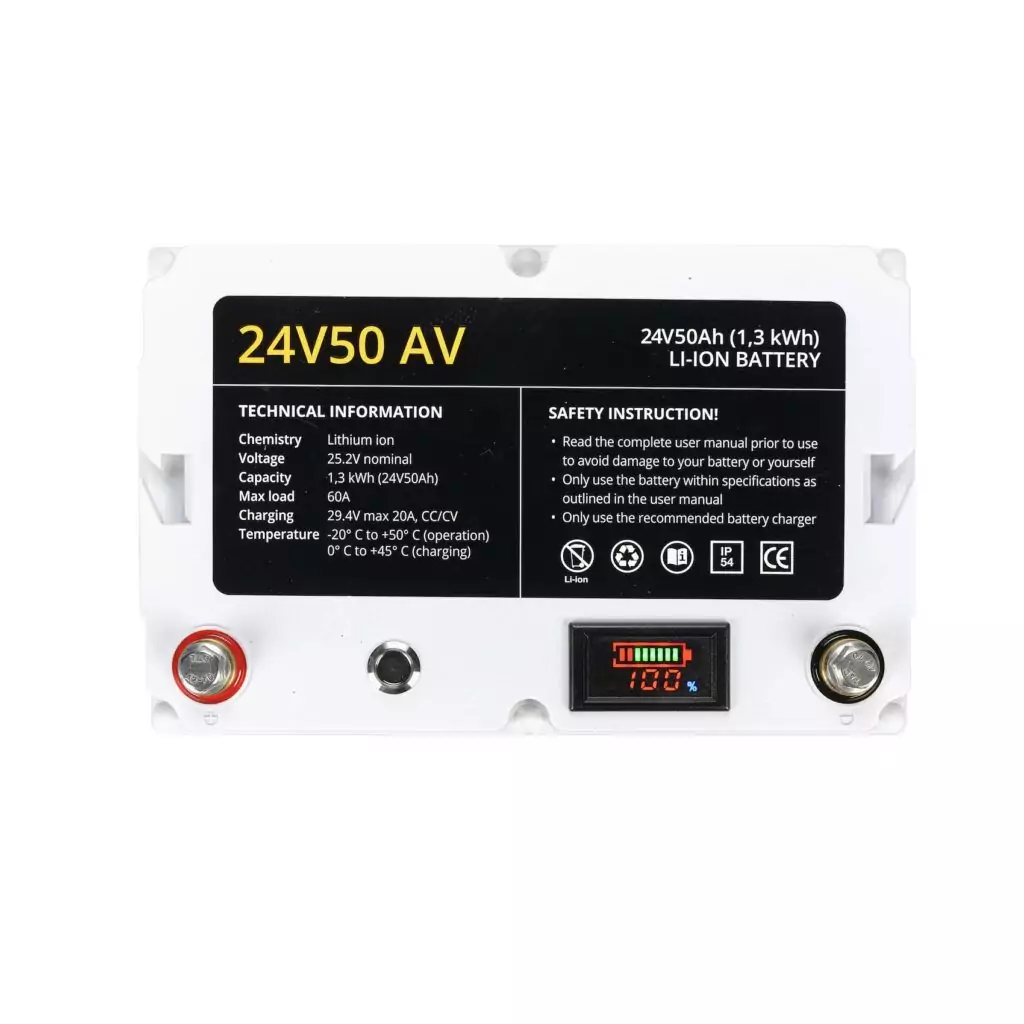

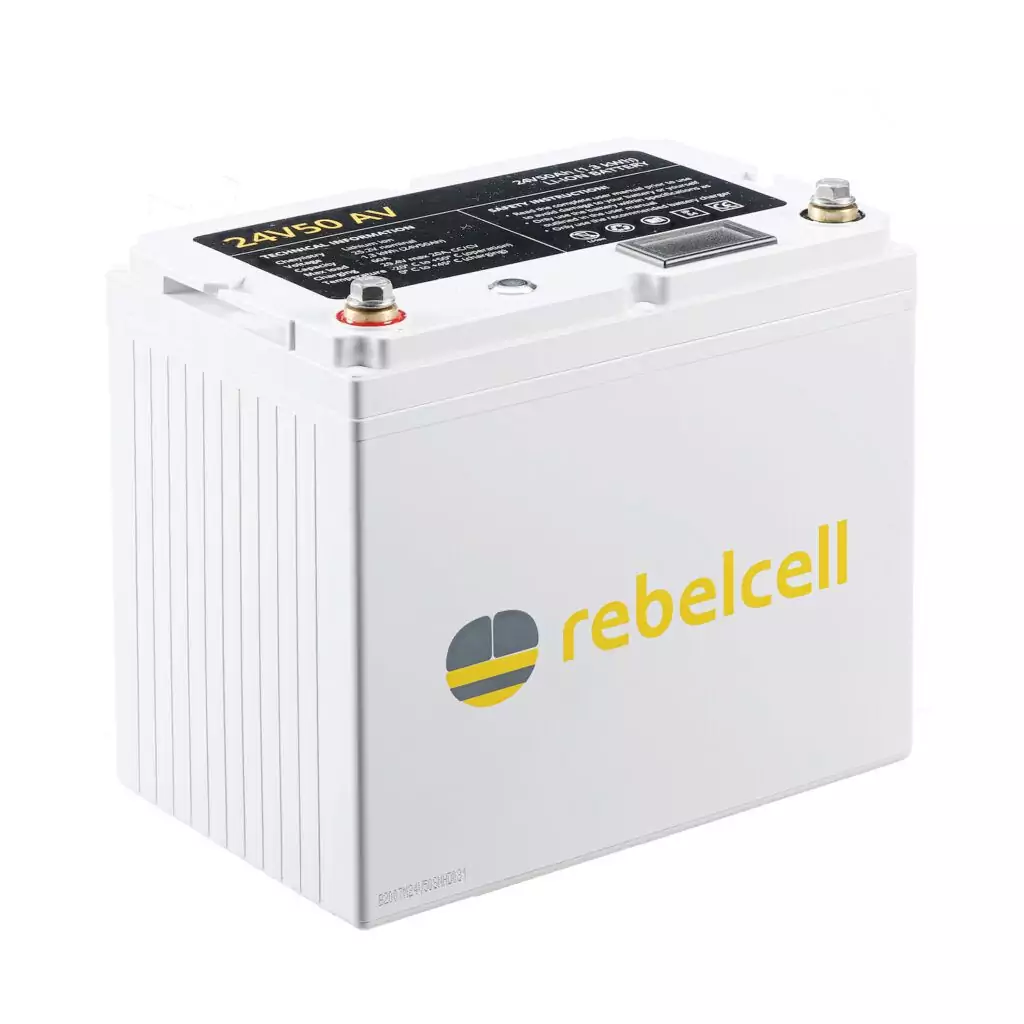

24V50 Lithium battery (1,25 KWh) with integrated digital state of charge indicator. Specially developed for use:

  • Angling: in predator fishing boats with 24V trolling engine
  • E-Boating: as power source for electric boating with 24V electric outboard engine.

Tip! Extend your fishing day and charge ‘on the go’ with the Range Extender.

  • Power: 24V - 50 Amps - 1.25 kWh. Replaces a 2 x 12V105Ah lead-acid battery pack.
  • Application: 24V electric outboard engines to 80 Lbs
  • Ease of use: charged within 4-5 hours (12A charger), deep discharge up to 100%
  • Runtime: depends on boat load, weather conditions, currents and use of e-motor, indicative runtime up to 1 fishing day with a 24V 80 Lbs e-motor.

Warranty: 24 Months

Quantity

In stock

SKU: 7106623686690
  • Compact & lightweight: the battery weighs just 9.5 kg and is up to 70% smaller than an equivalent (2 x 12V105A lead-batteries) pack.
  • High Ease of Use: lightweight and compact, can be recharged quickly and in between charges (full recharge in 5 hours with 12A charger). State of charge indicator.
  • Low battery costs: up to 50% per year lower than a lead battery.
  • Top performance: deep discharge (up to 100%) without negative effects on performance or cycle life.
  • Reliable and long life: built-in abuse protection (against deep discharge, over voltage, high temperatures etc.) through BMS and service life up to 10 years.
  • Warranty: two years.

PAY ATTENTION! READ THE FOLLOWING INFORMATION BEFORE PURCHASING THE PRODUCT:

Weight10 kg
Target

, ,

PLEASE REVIEW THE BELOW INFORMATION BEFORE COMPLETING YOUR ORDER

  • 1Only use with 24V electric outboard engines. Always use a suitable fuse between the battery and trolling motor to protect both and use battery cables (with M8 tongue connectors) of sufficient thickness and (ANEN) plug connectors to connect your trolling motor to the battery for a safe and reliable connection.
  • 2Only charge with li-ion battery charger with CC/CV charge profile (29.4V max 25A).
  • 3Never use crocodile clamps to connect your trolling engine to the battery! These connections are not safe and can result in heat development, dangerous situations and damage to your trolling engine and battery. Damage caused by unsuitable connectors or cabling is explicitly excluded from our warranty terms.
  • 4Our batteries are splash-water proof according to the IP54 standard. They cannot be fully immersed in water or handle heavy rains. To avoid problems use a waterproof battery container or battery bag and position the battery upright on a slightly elevated level so that it is not continuously standing in the water, or water can enter via the top of the battery. Water damage is explicitly excluded from our warranty terms.
TECHNICAL SPECIFICATIONS
Chemistry
Lithium-ion
Voltage
25.2V
Capacity (C1-C20)
50Ah
EqPb (comparable lead battery)
tot 2x 12V105Ah
Nominal energy
1.25 kWh
Maximum continuous discharge
50 A
Peak discharge (10 sec)
75 A
Lifetime (#charges) (@ 80% DoD)
1500
Lifetime (#charges) (@ 100% DoD)
1000
Size
259 x 167 x 212 (in mm)
Weight
9.5 kg
Energy density
104 Wh/kG
ELECTRONICS & BMS
Bandwidth voltage
21.0V -29.4V
Charge temperature
0°C - 45°C
Discharge temperature
-20°C - 60°C
Storage temperature
0°C - 45°C
Maximum charging current
20A
State of charge indicator
yes, digital
Integrated cell balancing
yes
Temperature protection
yes
Maximum discharge current protection
yes
Overvoltage protection
yes
Undervoltage protection
yes
PROTECTION & CERTIFICATION
Security class (IEC 529)
IP54
CE certificate
yes
Warranty
two years
