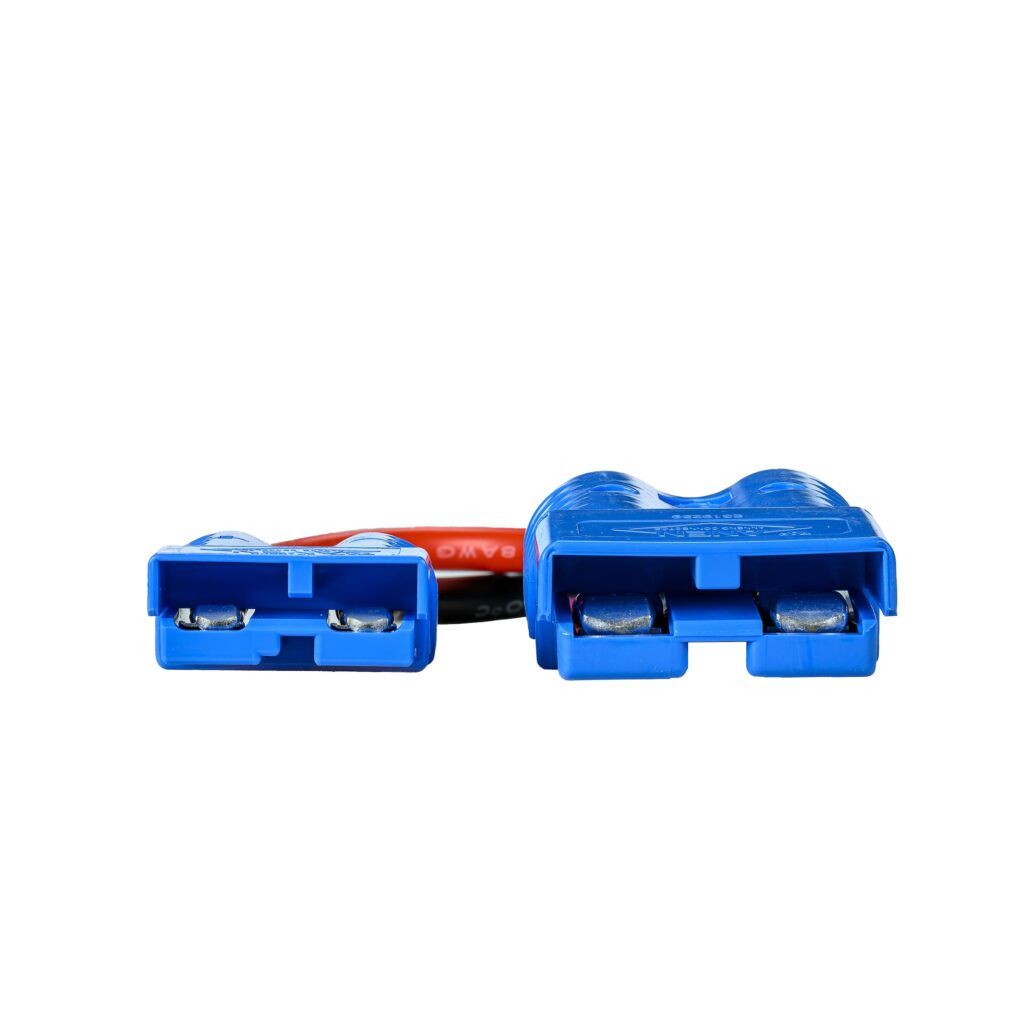

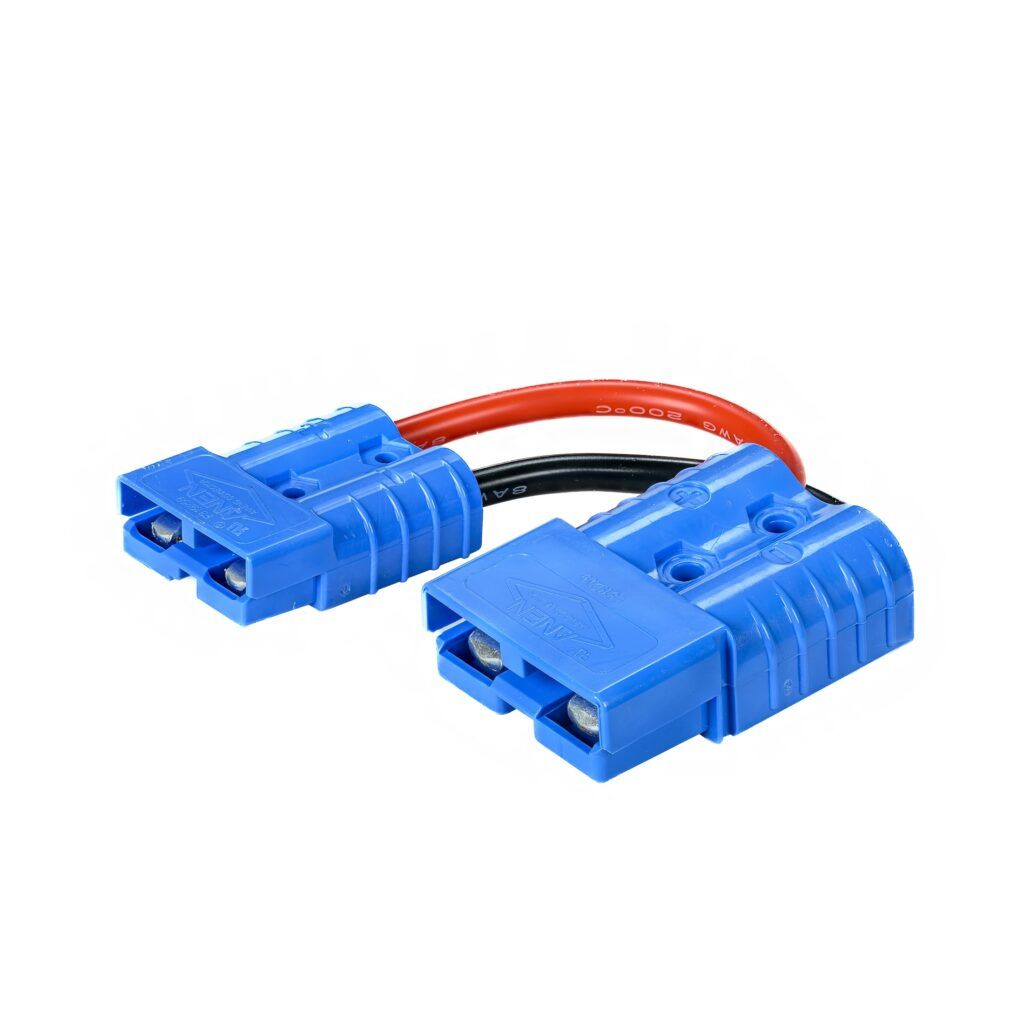

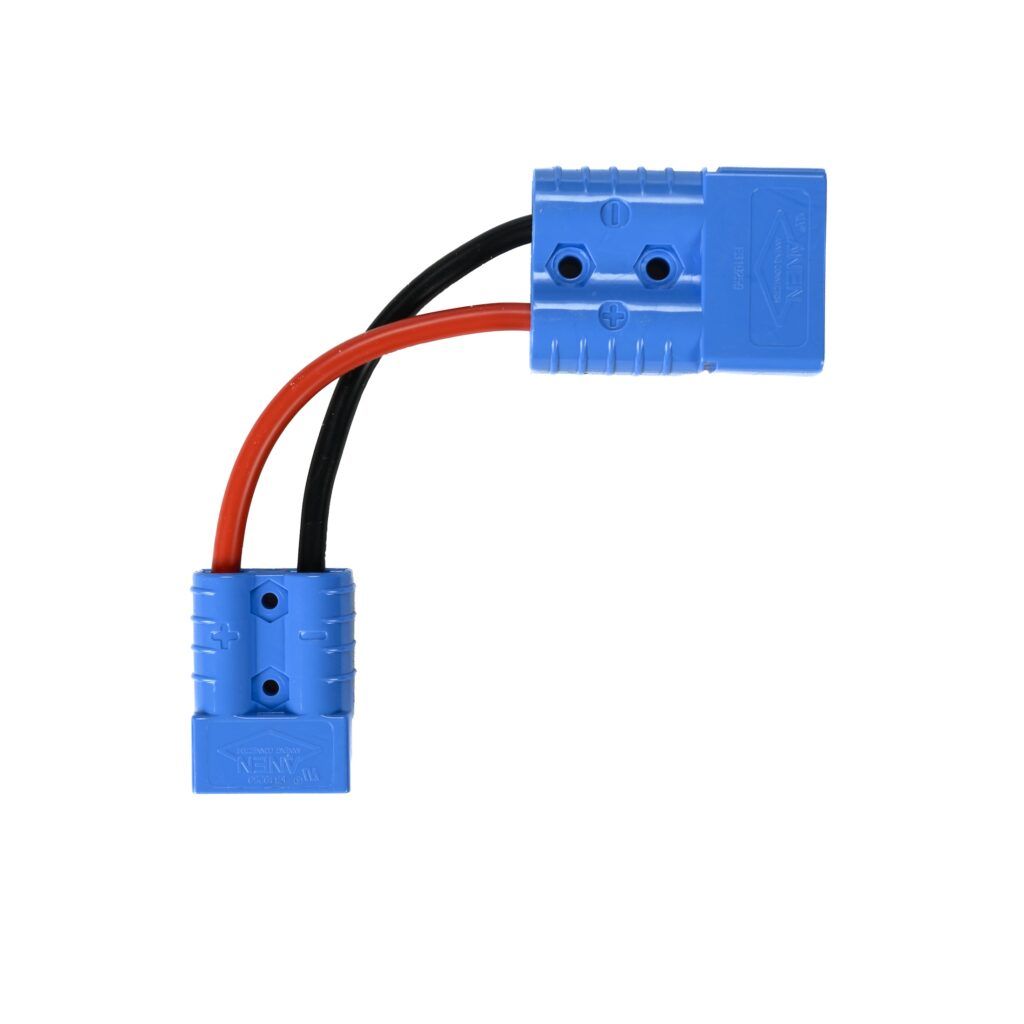

Adapter kabel Outdoorbox

Installation and usage:

• 1Ensure the ANEN 100A connector of your Outdoorbox 12.70 BT / 12.115 BT is clean and free of debris before connecting the adapter.
• 2Insert the ANEN 100A plug of the adapter straight into the 100A output port until you hear or feel a secure click.
• 3Connect your existing blue ANEN 50A charger, trolling motor cable or device to the 50A end of the adapter cable. Make sure the connectors are aligned properly.
• 4Verify that both connectors are fully seated. A properly connected adapter should not come loose when gently pulled.
• 5Once connected, your 50A accessory can now be used safely with the 100A Outdoorbox BT models.

Important:

• 1The adapter is intended for use with low-power accessories such as fish finders or other 12V electronics originally designed for the Outdoorbox 50A output.
• 2Ensure that the connected accessory does not exceed the maximum current draw of your 50A cable or device.
• 3Do not modify, open, or alter the ANEN connectors—this may compromise safety and void warranty.
• 4Always inspect cables and connectors for damage before use. Replace the adapter if any wear or damage is observed.
