Original price was: €2,499.00.Current price is: €1,624.35. €1,624.35

This is a returned product on Resale! Read below about the condition of this product.
The most powerful battery in the 36V line. The 36V70 Lithium Battery with digital battery status indicator. This battery operates at 36V, has a capacity of 70Ah (2,69kWh) and weighs 15.0Kg. This battery is specially designed for use in predatory fishing boats with 36V electric motor (front troller).
Read more >

  • Power: 36V - 70 Amps - 2.69 kWh
  • Application: 36V electric outboard engines to 120 Lbs
  • Ease of use: charged within 5-6 hours with 20A charger, deep discharge up to 100%
  • Runtime: dependent on weather conditions, currents, weight and load of boat and if carbon brush or brushless motor is used. Indicative runtime: 1 -2 full fishing days.

SKU: 7106623764862
OUT OF STOCK
  • Compact & lightweight: the battery weighs 15.0 kg and is up to 70% more compact than an equivalent (3 x 12V130Ah) lead-battery pack. Saves up to 100kg in battery weight.
  • High Ease of Use: can be recharged quickly and in between charges (full recharge within 5-6 with 20A charger. Digital state of charge indicator (voltage / %).
  • Low battery costs: up to 50% per year lower than a lead battery.
  • Top performance: deep discharge (up to 100%) and continuous high thrust without negative effects on performance or cycle life.
  • Reliable and long life: built-in abuse protection (against deep discharge, over voltage, high temperatures etc.) through BMS and service life up to 10 years.
  • Warranty: two years.

PAY ATTENTION! READ THE FOLLOWING INFORMATION BEFORE PURCHASING THE PRODUCT:

Weight 16.6 kg

PLEASE REVIEW THE BELOW INFORMATION BEFORE COMPLETING YOUR ORDER

  • 1Only use with 36V electric outboard engines. Always use a suitable fuse between the battery and trolling motor to protect both and use battery cables (with M8 tongue connectors) of sufficient thickness and (ANEN) plug connectors to connect your trolling motor to the battery for a safe and reliable connection.
  • 2Only charge with li-ion battery charger with CC/CV charge profile (42V max 50A).
  • 3Never use crodocile clamps to connect your trolling engine to the battery! These connections are not safe and can result in heat development, dangerous situations and damage to your trolling engine and battery. Damage caused by unsuitable connectors or cabling is explicitly excluded from our warranty terms.
  • 4Our batteries are splash-water proof according to the IP54 standard. They cannot be fully immersed in water or handle heavy rains. To avoid problems use a waterproof battery container and position the battery upright on a slightly elevated level so that it is not continuously standing in the water, or water can enter via the top of the battery. Water damage is explicitly excluded from our warranty terms.
TECHNICAL SPECIFICATIONS
Chemistry
Lithium
Voltage
37.0V
Capacity (C1-C20)
70Ah
EqPb (comparable lead battery)
Up to 3x 12V130Ah
Self discharge
2-4% per month
Nominal energy
2,69 kWh
Energy density
162 Wh/kg
Maximum continuous discharge
100A
Peak discharge (10 sec)
120A
Lifetime (#charges) (@ 80% DoD)
1500
Lifetime (#charges) (@ 100% DoD)
1000
Dimensions (in mm)
407 x 173 x 233
Weight
15.0 kg
Weight package
15.6 kg
Connectors
M8
SUITABLE CHARGERS
CHARGING TIME

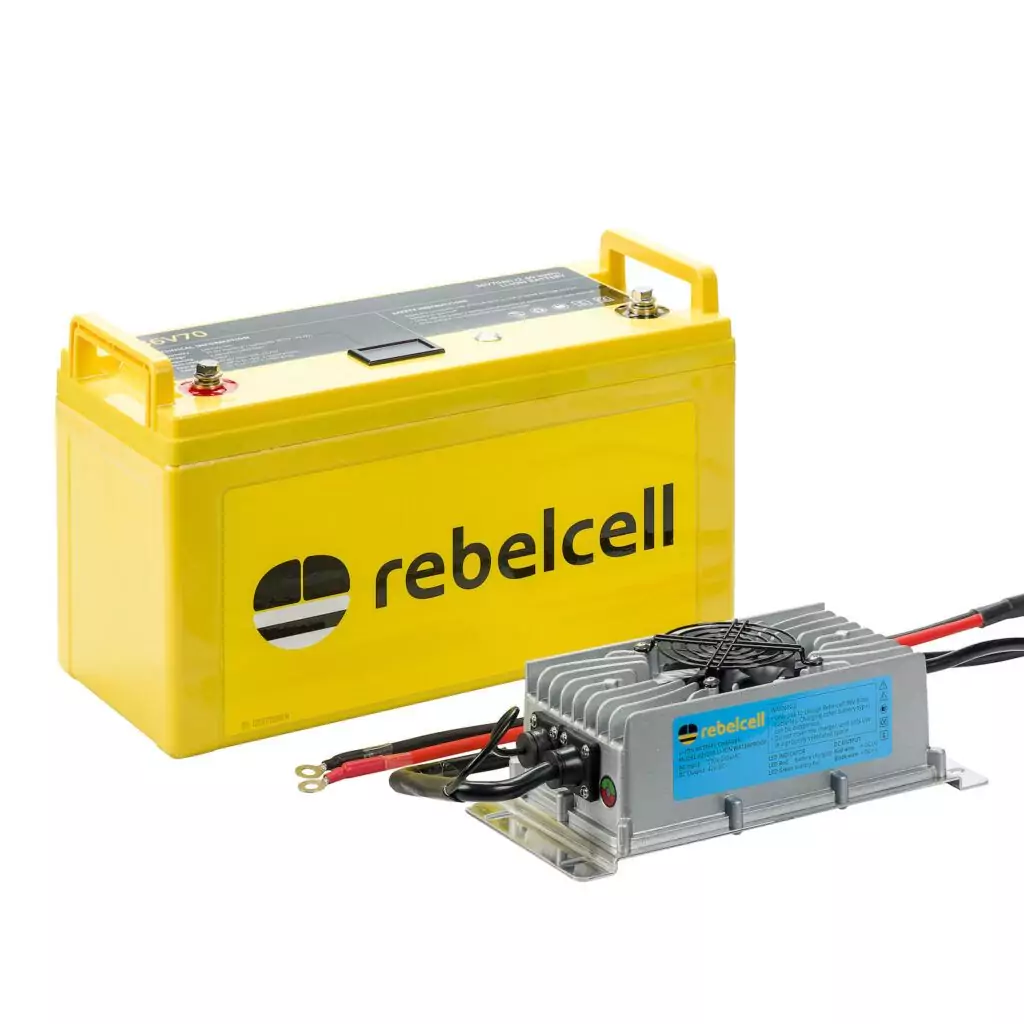

42V20A Lithium charger waterproof
5-6 h.
ELECTRONICS & BMS
Bandwidth voltage
30V - 42V
Charge temperature
0°C - 45°C
Discharge temperature
-20°C - 60°C
Storage temperature
0°C - 45°C
Charging profile
CC/CV

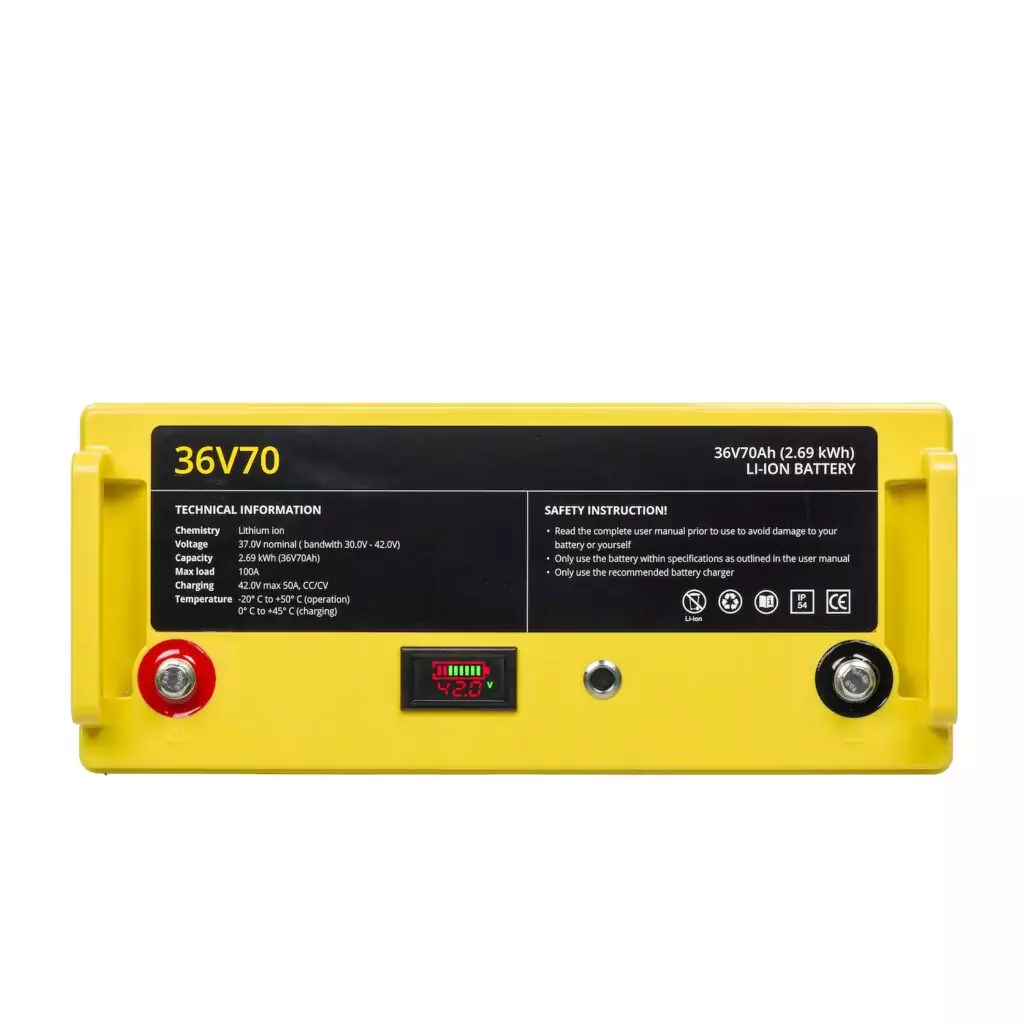

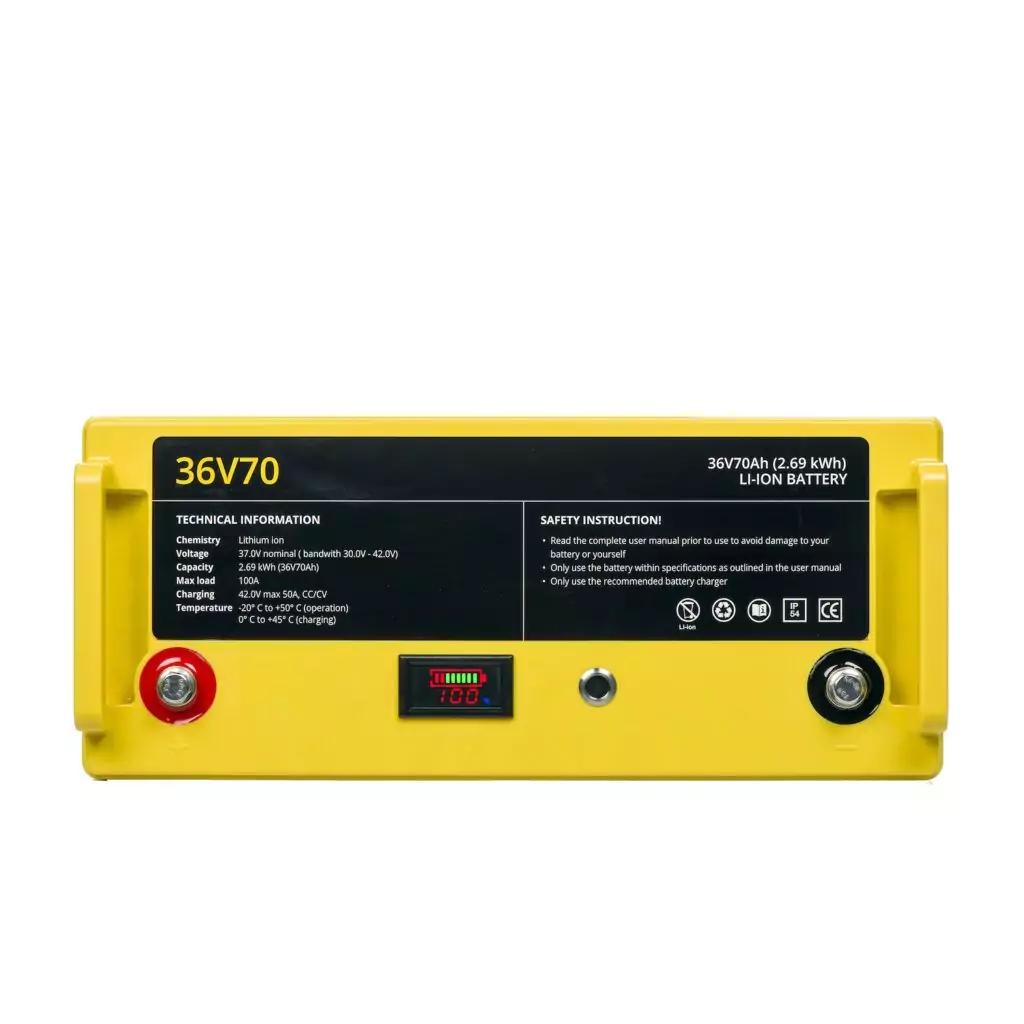

State of charge indicator
Yes, digital
Charging via alternator
No
Maximum charging current
50A
Charging voltage
42V
Maximum alternator charging current
N/A
Integrated cell balancing
Yes
Temperature protection
Yes
Maximum discharge current protection
Yes
Overvoltage protection
Yes
Undervoltage protection
Yes
Short circuit protection
Yes
Bluetooth app
No
Frost control
No
PROTECTION & CERTIFICATION
Security class (IEC 529)
IP54
Certification
CE
Shipping classification
UN3480, lithium-ion batteries, class 9
Warranty
Two years
Barcode
7106623686157
EAN
8720964630199
Product code
36070REUA1A
HS code (International / EU)
850760 / 85076000
ADR
Yes, UN 3480

User manual Rebelcell 36V70 battery

Reviews

There are no reviews yet.

Be the first to review “36V70 Lithium battery Resale Cat – C”

Your email address will not be published. Required fields are marked *

Product description Rebelcell 36V70 Lithium Battery

The most powerful battery in the 36V line! The 36V70 Lithium Battery with digital battery status indicator. This battery operates at 36V and has a capacity of 70Ah (2,69kWh).

This battery is specially designed for use in predatory fishing boats with 36V electric motor (front troller). The 36V70 can be used with both traditional 36V (carbon brush) electric motors (such as the Minn Kota Ultrex, Ulterra and Riptide) and brushless electric motors (such as the Lowrance Ghost, Garmin Force).

  • As many as 1000 cycles
  • Thanks to the Battery Management System, you can never discharge too deeply
  • Compact battery with high power

The battery is completely maintenance-free and has as many as 1000 charge-cycles. That means 1,000 charges and discharges. It is significantly lighter than a comparable lead battery and has a much lower annual loss. Thanks to the built-in Battery Management System, you never have to worry about discharging the battery too deeply and damaging it.

Product code: 36070REUA1A

Barcode: 7106623686157

EAN: 8720964630199

Product Condition

Category A – Products and packaging in excellent condition.
Category B – Only packaging damage. Product in like-new condition.
Category C – Product has minor damage (small scratch/dent).
Category D – Product has visible damage (scratches/dents).
