299.00 299.00

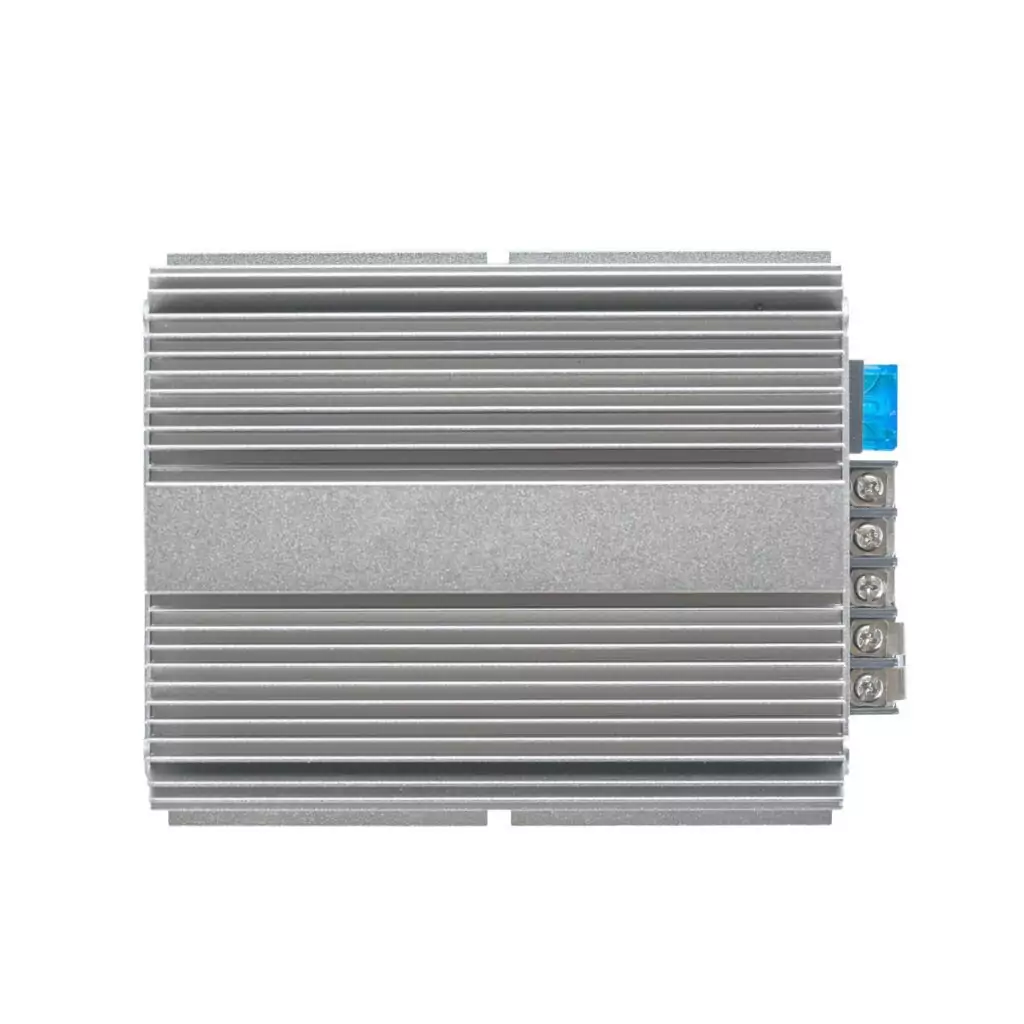

NEW! Introducing the waterproof (IP65) Range Extender 12.6V13A, engineered to extend your fishing day while on the water by recharging your Rebelcell 12V AV battery directly from the alternator of your outboard engine. It is easy to install and suitable for permanent fixing in your boat.
Read more>

  • Compatible with: (outboard) engines with 12V alternator with at least 15A charge current. Works with both lead-acid and LiFePO4 starter batteries (minimum capacity of LiFePO4 battery is 50A). Compatible with all known brands (e.g. Honda, Mercury, Yamaha, Suzuki etc.).

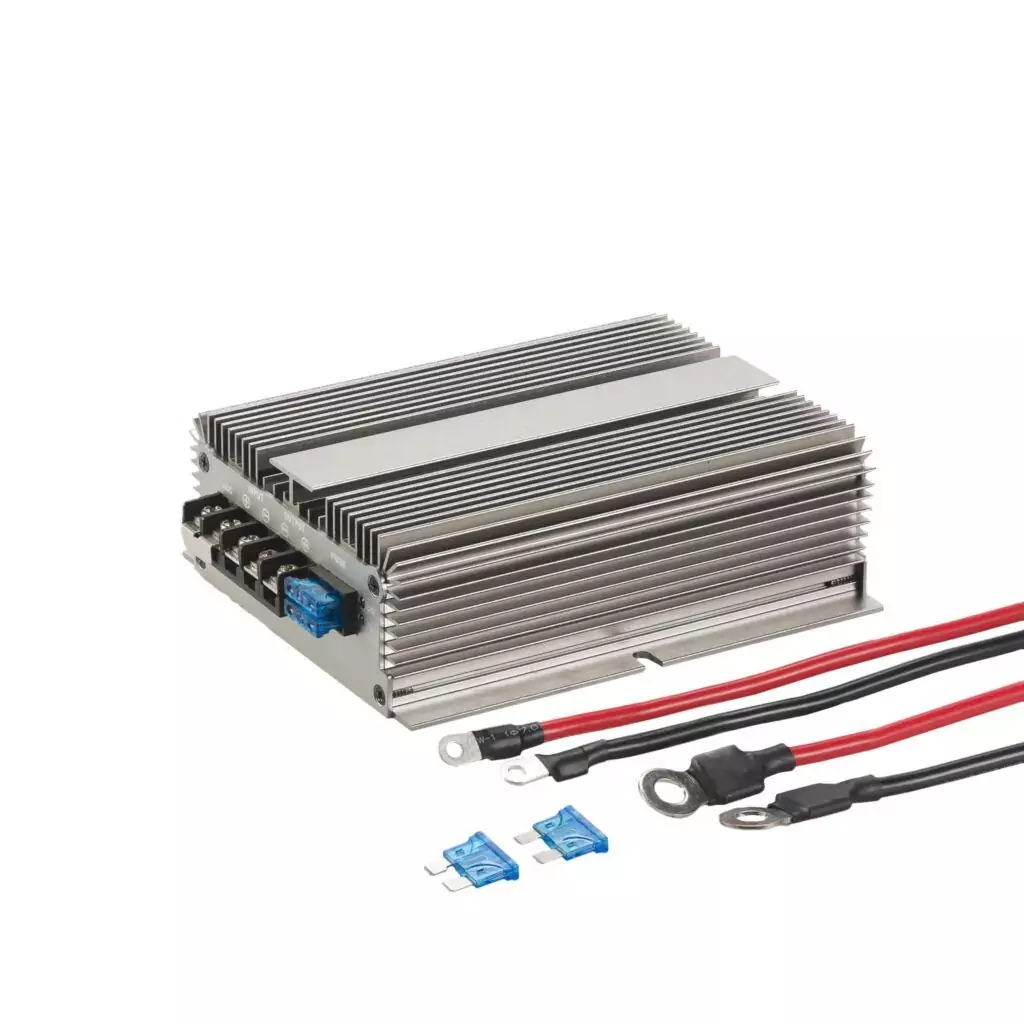

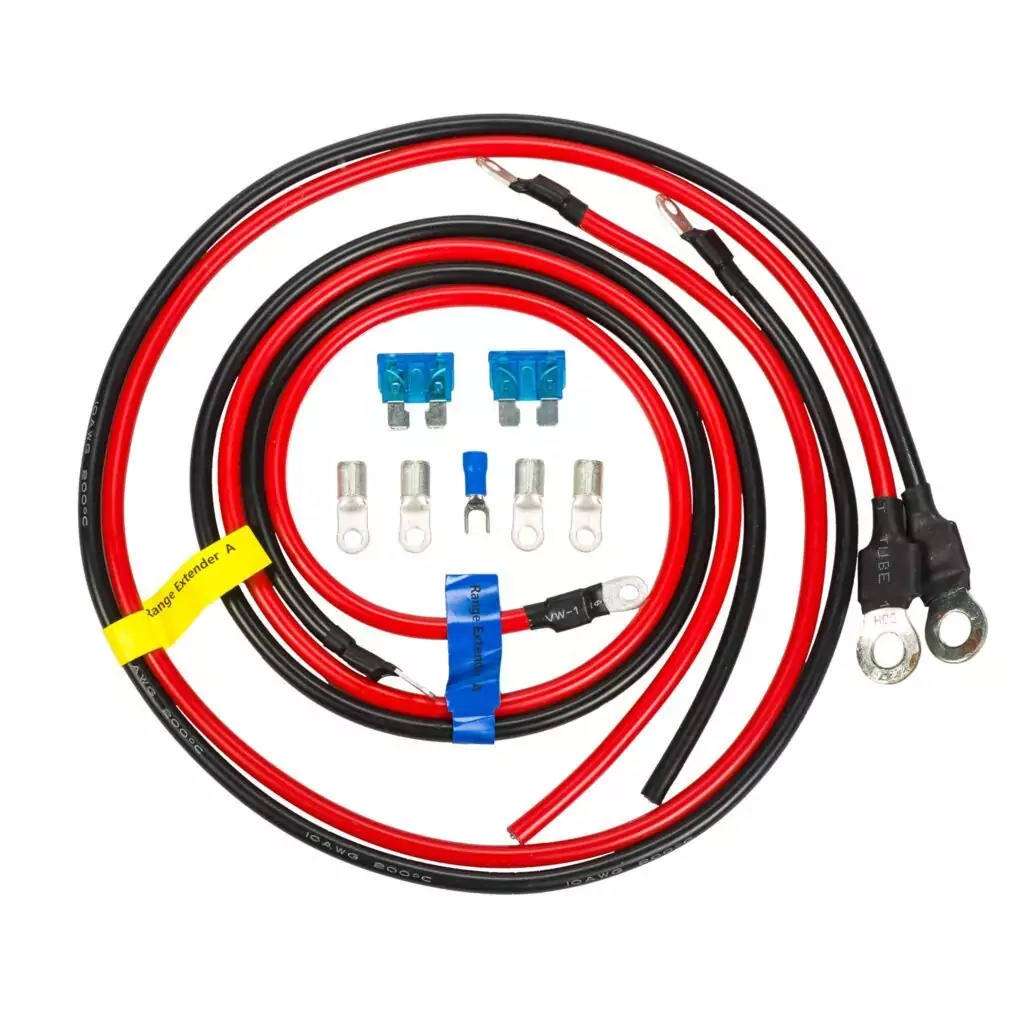

  • In your package: 1x Range Extender 12.6V13A WP, 1x connecting cable set (with extra fuses + tongue connectors).
  • Charge indicator: LED indicator shows charge status.
  • IP Rating: IP65 waterproof.

Warranty: 2 Years

Quantity

In stock

SKU: 7106623697528
  • Compatible with: (outboard) engines with 12V alternator with at least 15A charge current. Works with both lead-acid and LiFePO4 starter batteries (minimum capacity of LiFePO4 battery is 50A). Compatible with all known outboard brands (e.g. Honda, Mercury, Yamaha, Suzuki etc.).
  • Optimal charging profile: provides the correct charging profile (charge voltage and current) to safely charge your Rebelcell 12V AV battery.
  • Starter battery discharge protection: The Range Extender monitors the voltage in the starter battery and will only start charging if voltage starter battery is above 13.2V and stops if voltage drops below 12.8V.
  • Overcharge protection: will automatically adjust the alternator output charge current to avoid overcharging of your battery.
  • Temperature protection: the ‘dynamic thermal output control’ limits the charge current to reduce the temperature.
  • Short circuit protection: automatic shutdown with short circuit.
  • Charge indicator: LED indicator shows charge status.
  • Warranty: two years.

PAY ATTENTION! READ THE FOLLOWING INFORMATION BEFORE PURCHASING THE PRODUCT:

Weight 1.45 kg
Target

PLEASE REVIEW THE BELOW INFORMATION BEFORE COMPLETING YOUR ORDER

  • 1The Range Extender is only suitable for use with (outboard) engines that meet the minimum alternator output requirements as indicated before. It is NOT suitable for use with (outboard) engines that use a charging coil instead of an alternator: the capacity is not sufficient to charge both the starter battery and Rebelcell battery. Consult the manual of your (outboard) engine for this information. Lower than specified charge current from the alternator will lead to de-activation of the Range Extender to avoid discharge of the starter battery.
  • 2The Range Extender works with both lead-acid and LiFePO4 starter batteries (attention: minimum requirements for LiFePO4 battery capacity is 50A).
  • 3Mount the Range Extender in accordance with the installation guidelines (in user manual) in a dry and cool place with sufficient space around for ventilation and cooling. Never mount it on the bottom of your boat or in a location that does not remain dry.
  • 4Only use the Range Extender with the suitable Rebelcell 12V AV battery (12V70 AV batteries and up)! Using it with a different battery can lead to irreversible damage to your equipment and battery. This damage is explicitly excluded from warranty.
  • 5Additional connectors (not included) for the input cable are required to connect the Range Extender to the starter battery. For specifications please see the Installation guidelines in the user manual and consult a certified electrician if you have any questions about installation.
TECHNICAL SPECIFICATIONS
Capacity
160W
Galvanic seperation
no
Input voltage range (alternator output)
9 – 18V
Output voltage
12.6V
Output charge current
Max 13A
Input/ output isolated
No
Output Ripple & Noise
<100mV RMS
Peak efficiency
93%
Parallel connection
No
Temperature range
-20°C tot +80°C
Dimensions
150 x 130 x 50 (mm)
Weight
1.45 kg
LED Charge indicator
RED flashing: low starter battery voltage
RED solid: charging
GREEN: charging complete

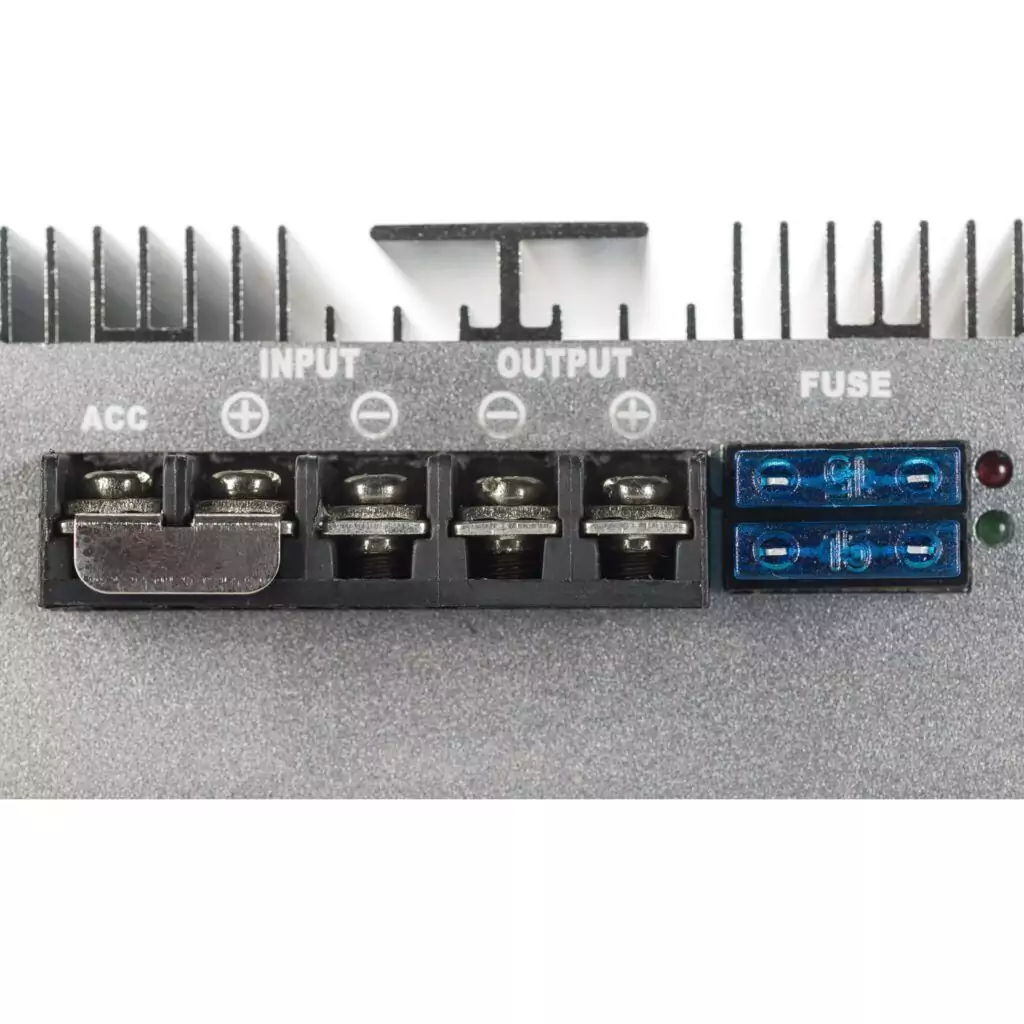

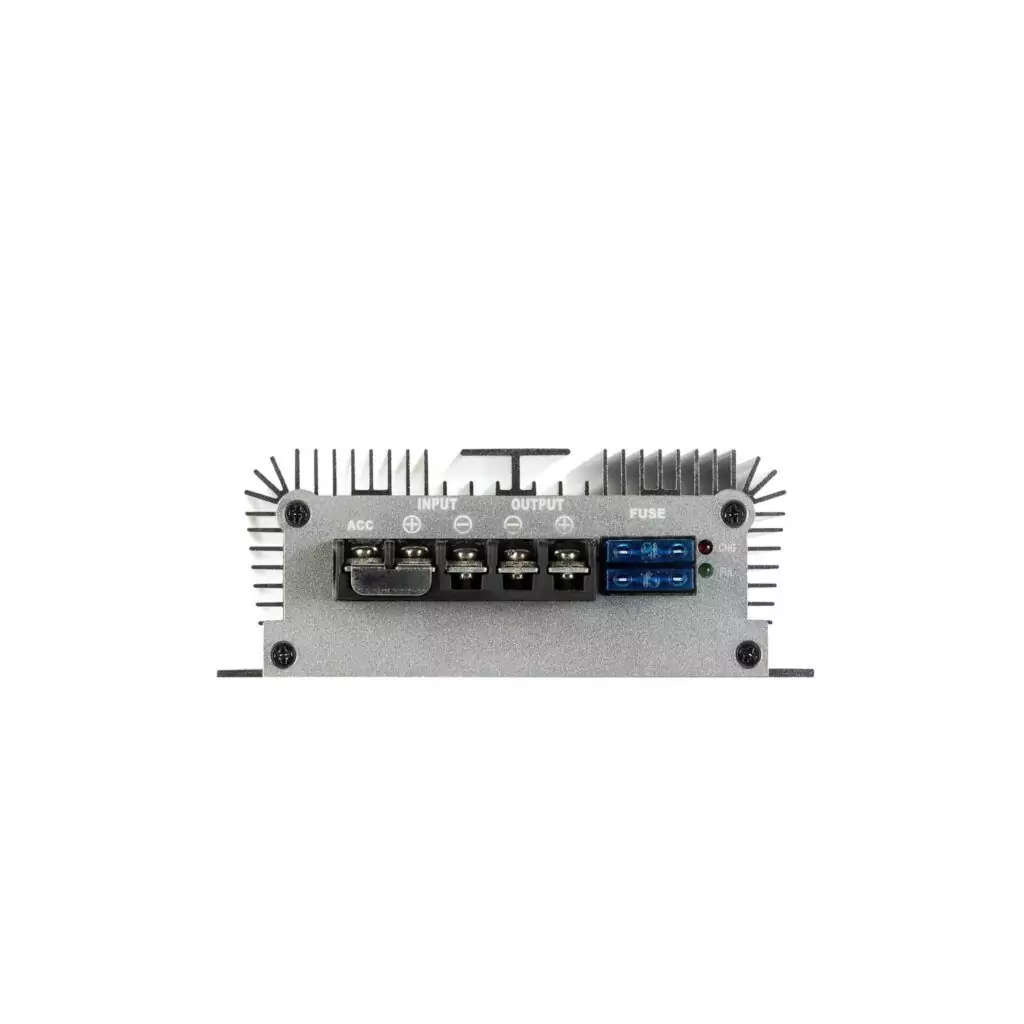

Connectors input / output
M4
PROTECTION
Overcharge / short circuit
Yes, output only
Over voltage
Yes, output only
Reverse polarity protection
No
High temperature protection
Yes
Starter battery discharge protection
Yes, The RE starts charging if voltage starter battery > 13.2V and stops if voltage < 12.8V.
Input fuse
25A (external)
Output fuse
25A (external)
PROTECTION & CERTIFICATION
Security class (IEC 529)
IP65
Certification
CE, UKCA, RoHS (EU 2015/863 and EU 2017/2102)
EU-EMC standard
EN55032:2015/A11:2020, EN55035:2017/A11:2020, EN61000-3-2:2019/A1:2021, EN61000-3-3:2013/A2:2021
UKCA-EMC standard
BS EN55032:2015/A11:2020, BS EN55035:2017/A11:2020, BS EN61000-3-2:2019/A1:2021, BS EN61000-3-3:2013/A2:2021
Warranty
Two years
Barcode
7106623697528
EAN
872096430939
Product code
DC12V13REWP
HS code (International / EU)
850440 / 85044060

User manual Range Extender Waterproof

Reviews

There are no reviews yet.

Be the first to review “12.6V13A Range Extender waterproof”

Your email address will not be published. Required fields are marked *

PRODUCT DESCRIPTION REBELCELL RANGE EXTENDER 12.6V13A WATERPROOF

Introducing the waterproof (IP65) Range Extender 12.6V13A, engineered to extend your fishing day while on the water. With this innovative device, you can conveniently recharge your Rebelcell 12V AV battery directly from the alternator of your outboard engine, ensuring uninterrupted power throughout your fishing day.

Compact and lightweight, the Range Extender is easy to install and suitable for permanent fixing in your boat. It provides a reliable output of 12.6V and a maximum of 13A, ensuring efficient and safe charging performance.

Equipped with advanced features, the Range Extender continuously monitors the voltage in the starter battery to prevent accidental discharge. It also regulates the alternator output current as needed and delivers the correct charging profile (voltage, current) to safely charge your 12V-AV battery.

Thanks to the built-in LED indicator, you can easily monitor the charging status of your battery at a glance. Compatible with leading outboard brands such as Honda, Yamaha, Mercury, and Suzuki, this Range Extender model ensures compatibility and seamless integration with your existing setup.

Please note: for optimal functionality, ensure that the alternator of your outboard engine delivers a minimum output of 15A, as the Range Extender will not operate otherwise. This Range Extender (12.6V13A) is only suitable for use with Rebelcell 12V AV batteries (12V70 AV and up!).  Check our webshop for applicable models for 24V and 36V Range Extenders.

Product code: DC12V13REWP
Barcode: 7106623697528
EAN: 872096430939
