12V100 Battery

12V100 Battery

1,079.00

Power: 12V - 100 Amps - 1,290 kWh
Application: 12V electric outboard engines to 55 Lbs, onboard energy supply for fish finders
Ease of use: charged within 5 hours, 100% dischargeable
Runtime: depends on load, weather conditions, currents and use of trolling engine (running it in lower gear can more than double the runtime!). Indicative runtime:  4  ~ 8 hrs with a  55 Lbs e-motor at low speed).

Limited stock

Warranty: 2 Years

Compact & lightweight: the battery weighs just 10 kg with the same dimensions of 2 standard 12V105A lead-batteries.
High Ease of Use: lightweight and compact, can be recharged quickly and in between charges (full recharge in 5 hours).
Low battery costs: up to 50% per year lower than a lead battery.
Top performance: deep discharge (up to 100%) without negative effects on performance or cycle life.
Reliable and long life: built-in abuse protection (against deep discharge, over voltage, high temperatures etc.) through BMS and service life up to 10 years.
Warranty: two years.

PLEASE REVIEW THE BELOW INFORMATION BEFORE COMPLETING YOUR ORDER

  • 1The voltage of our 12V batteries is slightly higher than with lead-acid batteries, so please review the instruction manual of your 12V  trolling engine to check whether your engine accepts voltages up to 16.8V. Only use the battery when this is the case. Always use a suitable fuse between the battery and trolling motor to protect both and use battery cables (with M8 tongue connectors) of sufficient thickness and (ANEN) plug connectors to connect your trolling motor to the battery for a safe and reliable connection.
  • 2Only charge with li-ion battery charger with CC/CV charge profile (16.8V max 25A).
  • 3This battery is not suitable for use (connected in series) with 24V e-motor). For specific use with the 24V e-motors, the 24V50 / 24V100  li-ion batteries have been developed.
  • 4Never use crodocile clamps to connect your trolling engine to the battery. These connections are not safe and can result in heat development, dangerous situations and damage to your trolling engine and battery. Damage caused by unsuitable connectors or cabling is expliclty excluded from our warranty terms.
  • 5Our batteries are splashwater proof according to the IP54 standard. They cannot be fully immersed in water or handle heavy rains. To avoid problems use a waterproof battery container and position the battery upright on a slightly elevated level so that it is not continously standing in the water, or water can enter via the top of the battery. Waterdamage is explicitly excluded from our warranty terms.

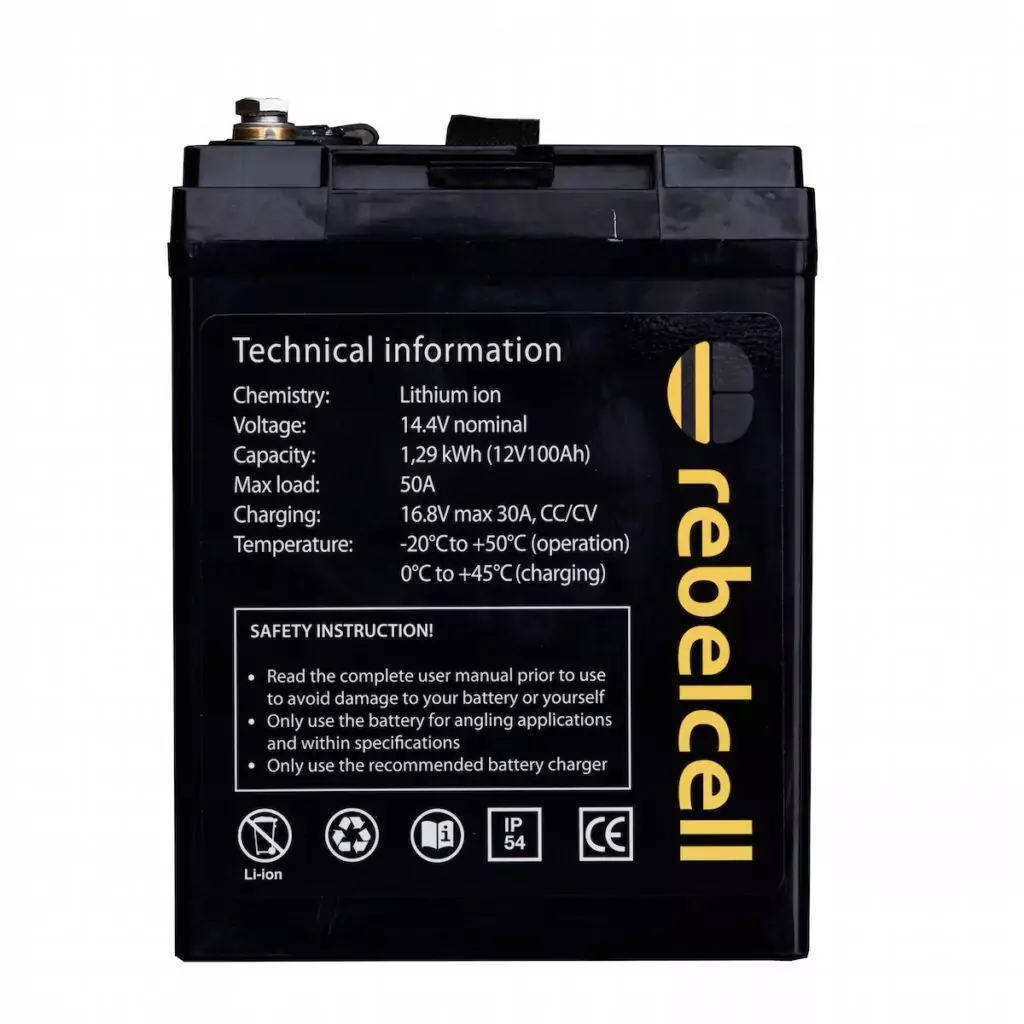

TECHNICAL SPECIFICATIONS
Chemistry
Lithium ion
Voltage
14.4V
Capacity (C1-C20)
100Ah
EqPb (comparable lead battery)
tot 2x12V105Ah
Nominal energy
1.29 kWh
Maximum continuous discharge
50 A
Peak discharge (10 sec)
75 A
Lifetime (#loads) (@ 80% DoD)
1500
Lifetime (#loads) (@ 100% DoD)
1000
Size
295 x 167 x 212 (mm)
Weight
10 Kg
Energy density
104 Wh/Kg
ELECTRONICS & BMS
Bandwidth voltage
12.0V - 16.8V
Charge temperature
0°C - 45°C
Discharge temperature
-20°C - 60°C
Storage temperature
0°C - 45°C
Maximum charging current
25A
State of charge indicator
yes, digital
Integrated cell balancing
yes
Temperature protection
yes
Maximum discharge current protection
yes
Overvoltage protection
yes
Undervoltage protection
yes
PROTECTION & CERTIFICATION
Security class (IEC 529)
IP54
CE certificate
yes
Guarantee
two years

Reviews

There are no reviews yet.

Be the first to review “12V100 Battery”

Your email address will not be published. Required fields are marked *

12V100 li-on battery with digital charge state of charge indicator. Drop in replacement for two lead-acid batteries of 12V105Ah.
