Original price was: €559.00.Current price is: €359.00.

CLEARANCE SALE, just a few items left!

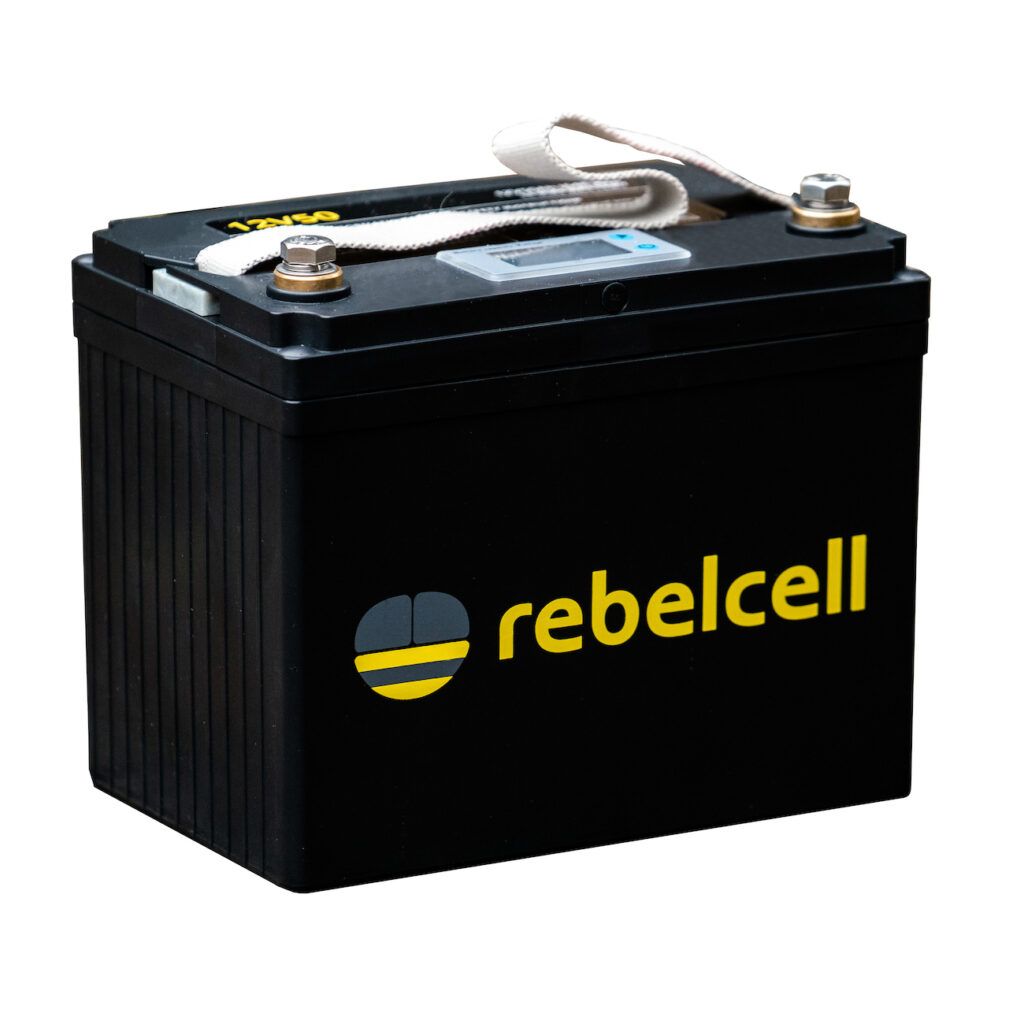

Compact and lightweight 12V50 Angling Lithium Battery that runs on 12V, has an output of 50Ah (648Wh) and features a digital battery status indicator.

Power: 12V - 50 Amps - 648 Wh

Application: 12V electric outboard engine to 55 Lbs, fish finders, waterside energy

Ease of use: charged within 6 hours, deep discharge up to 100%

Runtime: depends on load, weather conditions, currents and use of trolling engine (running it in lower gear can more than double the runtime!). Indicative runtime: 2 ~ 4 hrs with a 55 Lbs e-motor at low speed).

Limited stock

Compact & lightweight: the battery weighs just 5 kg with the same dimensions of a standard 12V105 Ah lead-battery.

High Ease of Use: lightweight and compact, can be recharged quickly and in between charges (full recharge in 5-6 hours).

Low battery costs: up to 50% per year lower than a lead battery.

Top performance: deep discharge (up to 100%) without negative effects on performance or cycle life.

Reliable and long life: built-in abuse protection (against deep discharge, over voltage, high temperatures etc.) through BMS and service life up to 10 years.

Warranty: two years.

PLEASE REVIEW THE BELOW INFORMATION BEFORE COMPLETING YOUR ORDER

1The voltage of this 12V lithium-ion battery is slightly higher than with lead-acid batteries, so please review the instruction manual of your 12V trolling engine to check whether your engine accepts voltages up to 16.8V. Only use the battery when this is the case. Always use a suitable fuse between the battery and trolling motor to protect both and use battery cables (with M8 tongue connectors) of sufficient thickness and (ANEN) plug connectors to connect your trolling motor to the battery for a safe and reliable connection.

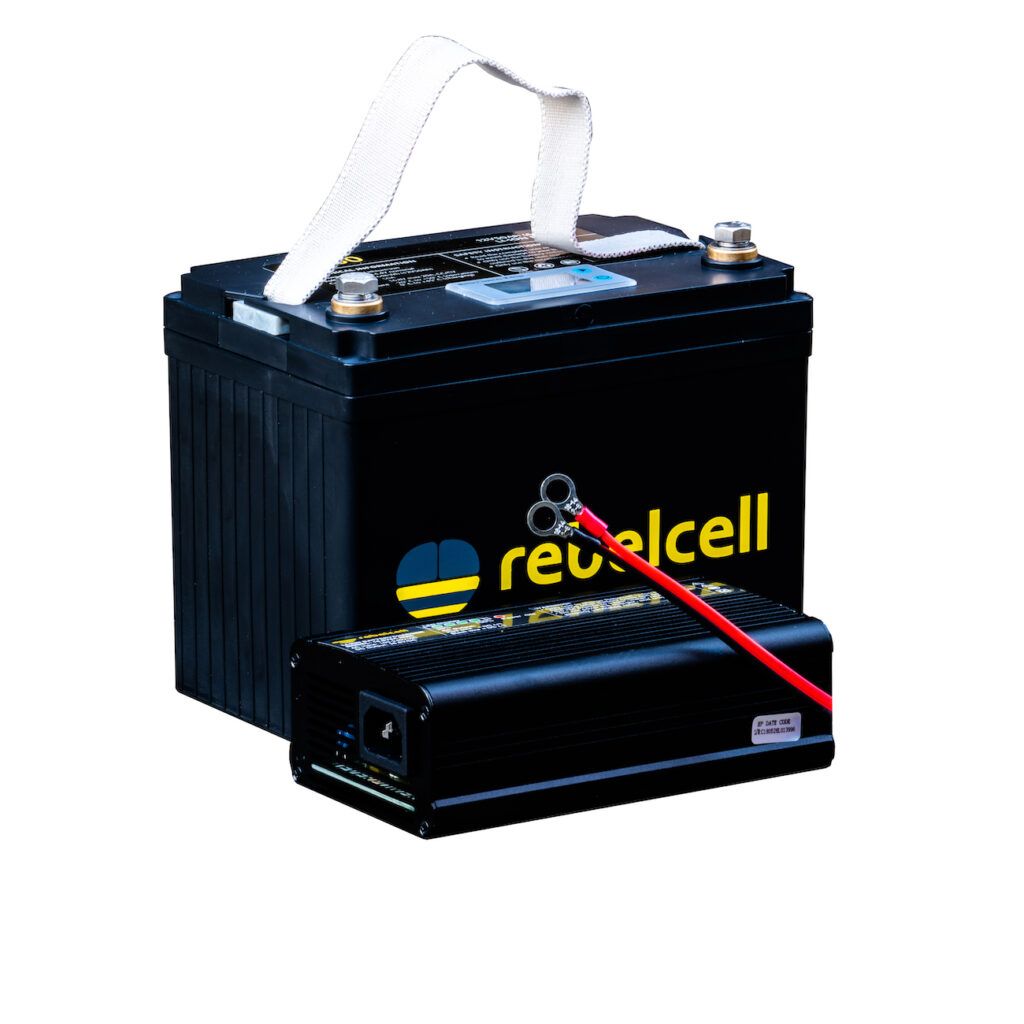

2Only charge with li-ion battery charger with CC/CV charge profile (16.8V max 25A). This battery is not suitable for use (connected in series) with 24V e-motors. For specific use with the 24V e-motors, the 24V50 / 24V100 li-ion batteries have been developed.
3Never use crocodile clamps to connect your trolling engine to the battery! These connections are not safe and can result in heat development, dangerous situations and damage to your trolling engine and battery. Damage caused by unsuitable connectors or cabling is explicitly excluded from our warranty terms.
4Our batteries are splash water proof according to the IP54 standard. They cannot be fully immersed in water or handle heavy rains. To avoid problems use a waterproof battery container or battery bag and position the battery upright on a slightly elevated level so that it is not continuously standing in the water, or water can enter via the top of the battery.
5If you use a battery carrying case please ensure that NO water (from rain for instance) remains in the battery bag as this can damage the battery. Waterdamage is explicitly excluded from our warranty terms.

TECHNICAL SPECIFICATIONS

Chemistry

Lithium-ion

Voltage

14.4V

Capacity (C1-C20)

50Ah

EqPb (comparable lead battery)

up to 105Ah

Nominal energy

648 Wh

Maximum continuous discharge

60 A

Peak discharge (10 sec)

75 A

Lifetime (#loads) (@ 80% DoD)

1500

Lifetime (#loads) (@ 100% DoD)

1000

Size

195 x 130 x 155 (mm)

Weight

5.0 KG

Energy density

104 Wh/KG

ELECTRONICS & BMS

Bandwidth voltage

9.0V -12.6V

Charge temperature

0°C - 45°C

Discharge temperature

-20°C - 60°C

Storage temperature

0°C - 45°C

Maximum charging current

35A

Integrated cell balancing

yes

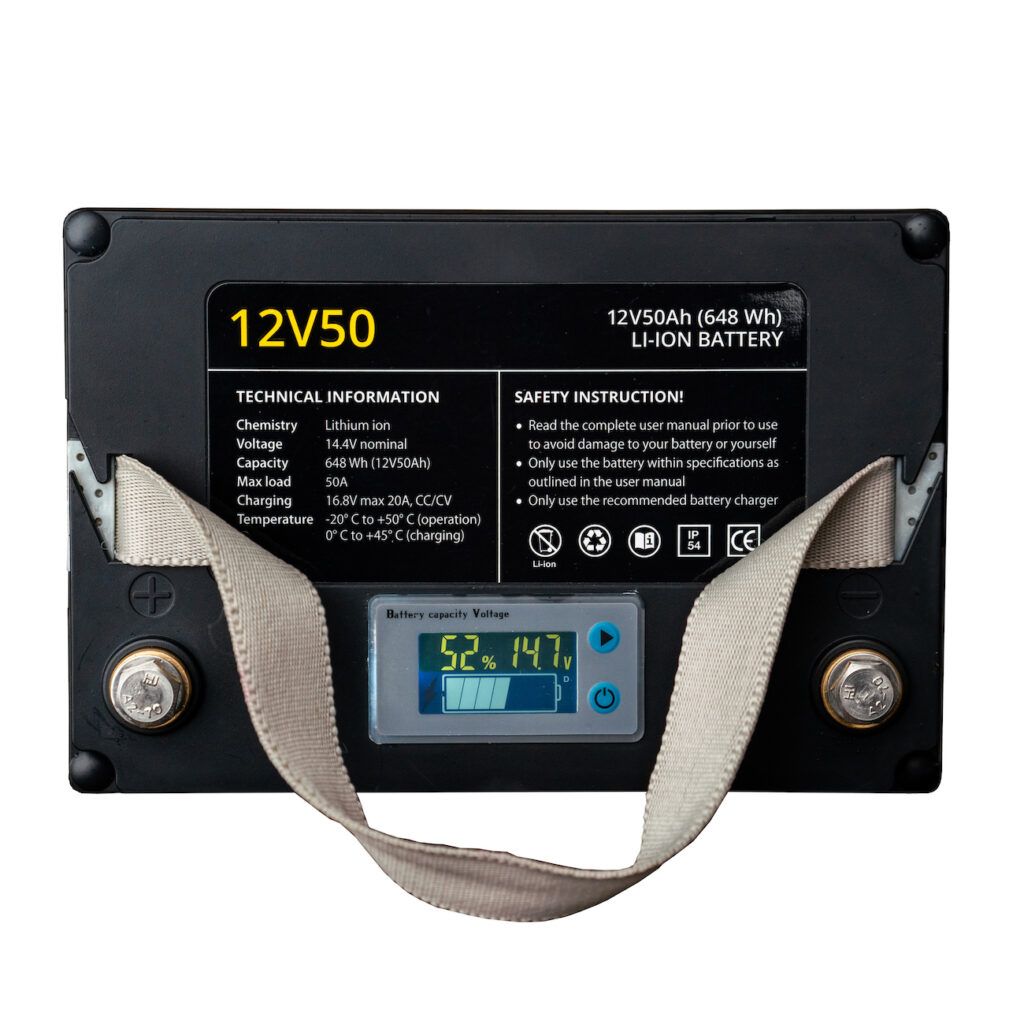

State of charge indicator

yes, digital

Temperature protection

yes

Maximum discharge current protection

yes

Overvoltage protection

yes

Undervoltage protection

yes

PROTECTION & CERTIFICATION

Security class (IEC 529)

IP54

CE certificate

yes

Warranty

two years

Reviews

There are no reviews yet.

Be the first to review “12V50 Angling Line Battery”

Compact and lightweight 12V50 AV Lithium Battery that runs on 12V, has an output of 50Ah (648Wh) and features a digital battery status indicator. This battery can be used for many applications, for example:

Electric boating: as power supply and drive for 12V electric motors
Recreation: as a service battery for motorhomes, motorboats, etc.
Angling: as power supply for multi day use of larger-sized (10-12 inch) fish finders

Note: the voltage of this 12V lithium-ion battery is slightly higher than with lead-acid or other lithium batteries, so please review the instruction manual of your 12V trolling engine or fish finder to check whether your engine accepts voltages up to 16.8V.

The battery is completely maintenance-free and has as many as 1000 charge-cycles. That means 1,000 charges and discharges. It is significantly lighter than a comparable lead battery and has a much lower annual loss. Thanks to the built-in Battery Management System, you never have to worry about discharging the battery too deeply and damaging it.

Tip: Keep your 12V50 AV battery dry with our battery bag!
