24V75 EDGE (1,92 kWh) with Charger 29.2V20A waterproof

Home

Products

€1,198.00

NEW! The 24V75 EDGE delivers 24V75Ah (1.92 kWh) of LiFePO₄ energy in an ultra-compact casing that fits almost any battery compartment. Ideal for 24V trolling motors, marine electronics, and service battery use in campers and caravans, it provides reliable power where space is limited.
Read more >

Power: 24V - 75A - 1,92 kWh

Easy charging: charges quickly via your LiFePO4 charger

Application: power source for 24V trolling engine, 24V service battery for campervan or caravan

App to view charge status, estimated runtime, current, charge cycles, temperature, battery health

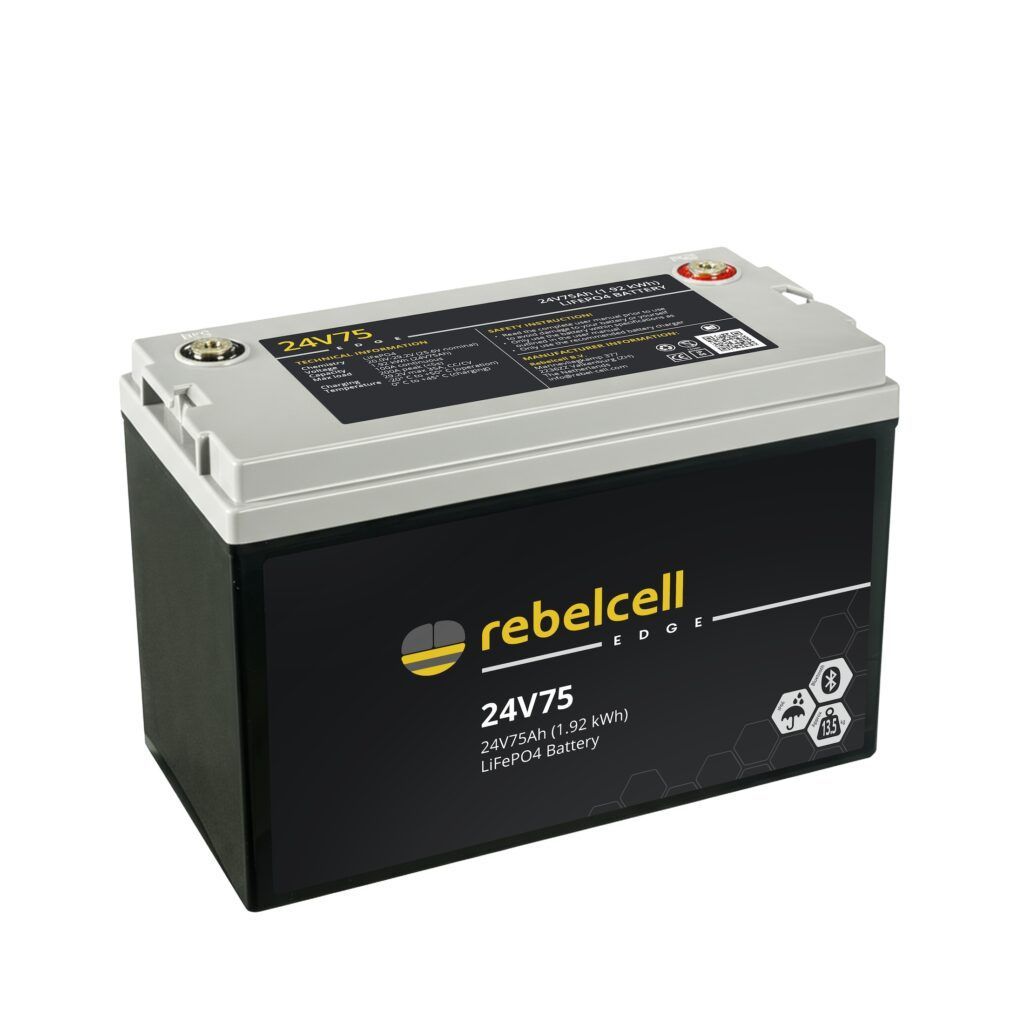

24V75 EDGE LiFePO4 battery

€899.00

In stock

29.2V20A LiFePO4 charger waterproof (IP65)

The 29.2V20A Lithium charger (IP65) waterproof has been specially engineered to charge Rebelcell 24V EDGE LiFePO4 batteries. This charger is sealed with epoxy resin, making it ideal for permanent installation in your boat. This charger is sealed with epoxy resin, making it ideal for permanent installation in your boat.
Read more>

€299.00

In stock

Warranty: 3 Years

In stock

Versatility: power supply for 24V trolling engines; 24V service battery for caravan of campervan. Connect in parallel or series to increase your range or voltage.

Compact: the battery weighs 13.5 kg, is up to 70% smaller than an equivalent lead-battery and fits in every battery compartment.

Parallel / Series connection: can connect up to 4 batteries in parallel - to quadruple your capacity for a 24V300Ah power source, or 2 in series - to create a 48V75Ah power source for a 48V electric engine.

App: to view charge status, estimated runtime, current, charge cycles, temperature, battery health.

Top performance: deep discharge (up to 100%) without negative effects on performance or cycle life.

High Ease of Use: compatible with all 24V trolling engines. Easy monitoring of charge status, estimated runtime, battery health, and performance via the Rebelcell App.

Reliable and long life: built-in abuse protection through BMS and service life up to 10 years. IP66 waterproof.

Warranty: three years.

PLEASE REVIEW THE BELOW INFORMATION BEFORE COMPLETING YOUR ORDER

1Only charge with recommended lithium (LiFePO4) battery charger with CC/CV charging profile and 29.2V max 35A. Using an unsuitable charger can be unsafe and will automatically void warranty.
2Securely tighten the battery bolts with a socket wrench: improperly fixed terminals can be dangerous and generate heat, which can lead to irreversible damage to your 24V outboard, 24V equipment and battery!
3Always use a suitable fuse between the battery and your equipment to protect both.
4Always use batteries of the same brand, voltage, capacity, age and charge status when connecting in series or parallel. Use cables of same length and of sufficient thickness to connect batteries together and connect tightly with a socket wrench. Fully charge batteries before connecting together. Failure to do so may void your warranty.
5Consult an electrician if you need assistance in connecting or installing your batteries.
6Your battery is ‘waterproof’ according to the IP66 standard. To avoid issues, we recommend placing the battery in a waterproof battery container and/or on a elevation to ensure that the battery is never partly or fully in the water on the bottom of your boat.

TECHNICAL SPECIFICATIONS

Chemistry

LiFePO4

Voltage nominal

25.6V

Capacity (C1-C20)

75Ah

EqPb (comparable lead battery)

Up to 24V150 Ah

Self discharge

2-4% per month

Nominal energy

1.92 kWh

Energy density

142 Wh/kg

Maximum continuous discharge

100A

Peak discharge (<5s)

200A

Parallel / series connection

Parallel: Yes, max 4 batteries (4P)

Series: Yes, max 2 batteries (2S)

Lifetime (#charges) (@ 80% DoD)

7500

Lifetime (#charges) (@ 100% DoD)

5000

Dimensions (in mm)

330 x 175 x 214

Weight

13.5 kg

Weight package

14.1 kg

SUITABLE CHARGERS

CHARGING TIME

29.2V20A Li-ion charger (normal or waterproof)

5-6 h.

29.4V12A Li-ion charger (normal)

7-8 h.

ELECTRONICS & BMS

Bandwidth voltage

20.0V - 29.2V

Charge temperature

0°C - 45°C

Discharge temperature

-20°C - 60°C

Storage temperature

0°C - 45°C

Charging profile

CC/CV

Charging voltage

29.2V ± 0.2V

Charging via alternator

Yes, Range Exender or DC DC converter recommended

Maximum charging current

35A (charger)

State of charge indicator

Yes, via Rebelcell BT app

Integrated cell balancing

Yes

High temperature protection

Yes

Low temperature protection

Yes

Maximum discharge current protection

Yes

Overvoltage protection

Yes

Undervoltage protection

Yes

Short circuit protection

Yes

Bluetooth app

Yes, for charge status, estimated runtime, current, temperature, cycle life.

Frost control

PROTECTION & CERTIFICATION

Security class (IEC 529)

IP66

Certfication

CE, MSDS, RohS, UN38.3

Shipping classification

UN3480, lithium-ion batteries, class 9

Warranty

3 years

Barcode

8720964631431

EAN

8720964631431

Product code

24075RCEDGE

HS code (International / EU)

850760 / 85076000

ADR

Yes, UN3480

User manual 24V75 EDGE LiFePO4 Battery

Reviews

There are no reviews yet.

Be the first to review “24V75 EDGE (1,92 kWh) with Charger 29.2V20A waterproof”

Product description Rebelcell 24V75 EDGE LiFePO4 Battery

The 24V75 EDGE is a compact, deep-cycle LiFePO₄ battery developed for marine and recreational applications. With 24V75Ah (1.92 kWh) of capacity in a casing that fits into almost any battery compartment, it is ideal for 24V trolling motors, marine electronics, and service battery systems in campervans or caravans where space is limited but high battery capacity is required.

The battery is equipped with a robust Battery Management System (BMS) for safe operation, Bluetooth connectivity for real-time monitoring via the Rebelcell App, and an IP66 waterproof rating for use in demanding environments. For extended power needs, the 24V75 EDGE supports flexible configurations:

Up to 4 batteries in parallel: 24V300Ah system (7.68 kWh)
2 batteries in series: 48V75Ah system, suitable for 48V electric engines

The 24V75 EDGE comes with a 3-year warranty for added assurance.

Product code: 24075RCEDGE

EAN: 8720964631431

24V75 EDGE (1,92 kWh) with Charger 29.2V20A waterproof

24V75 EDGE LiFePO4 battery

29.2V20A LiFePO4 charger waterproof (IP65)

Reviews

Product description Rebelcell 24V75 EDGE LiFePO4 Battery
