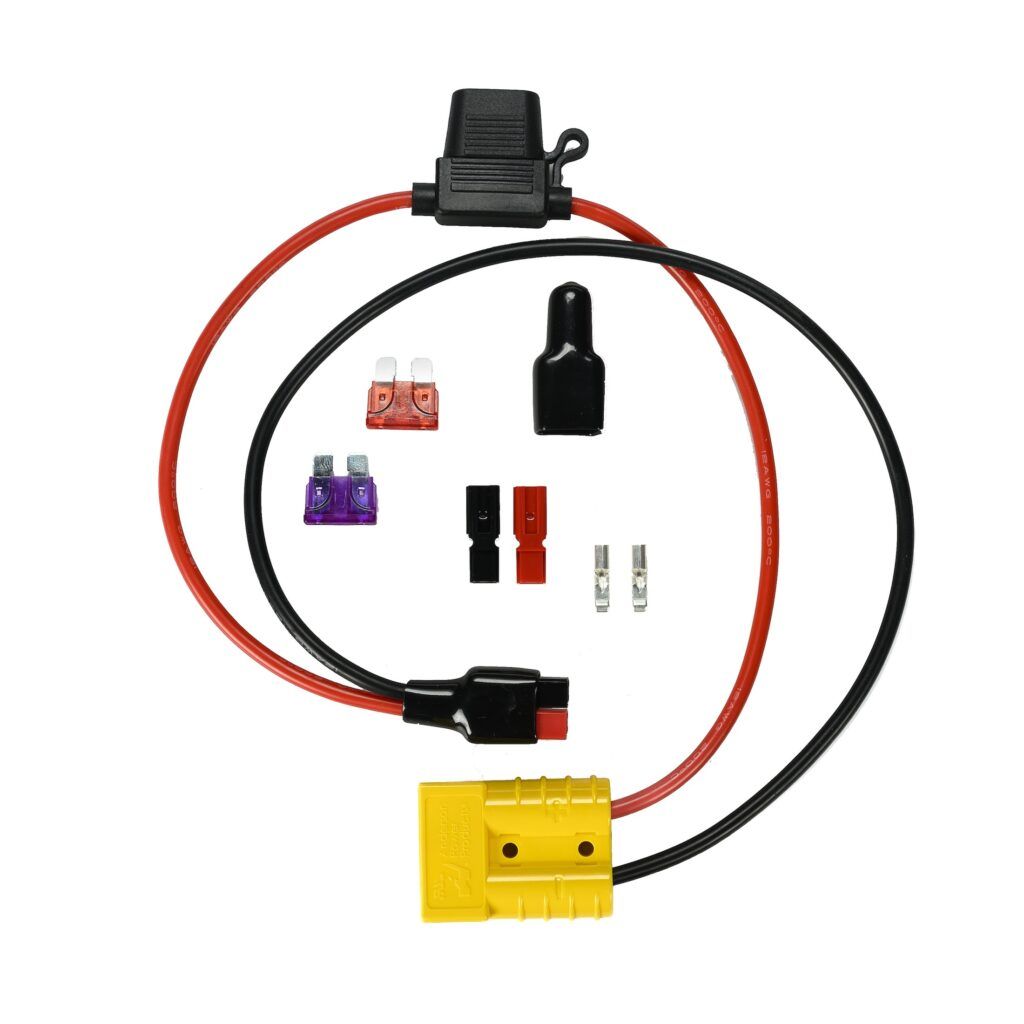

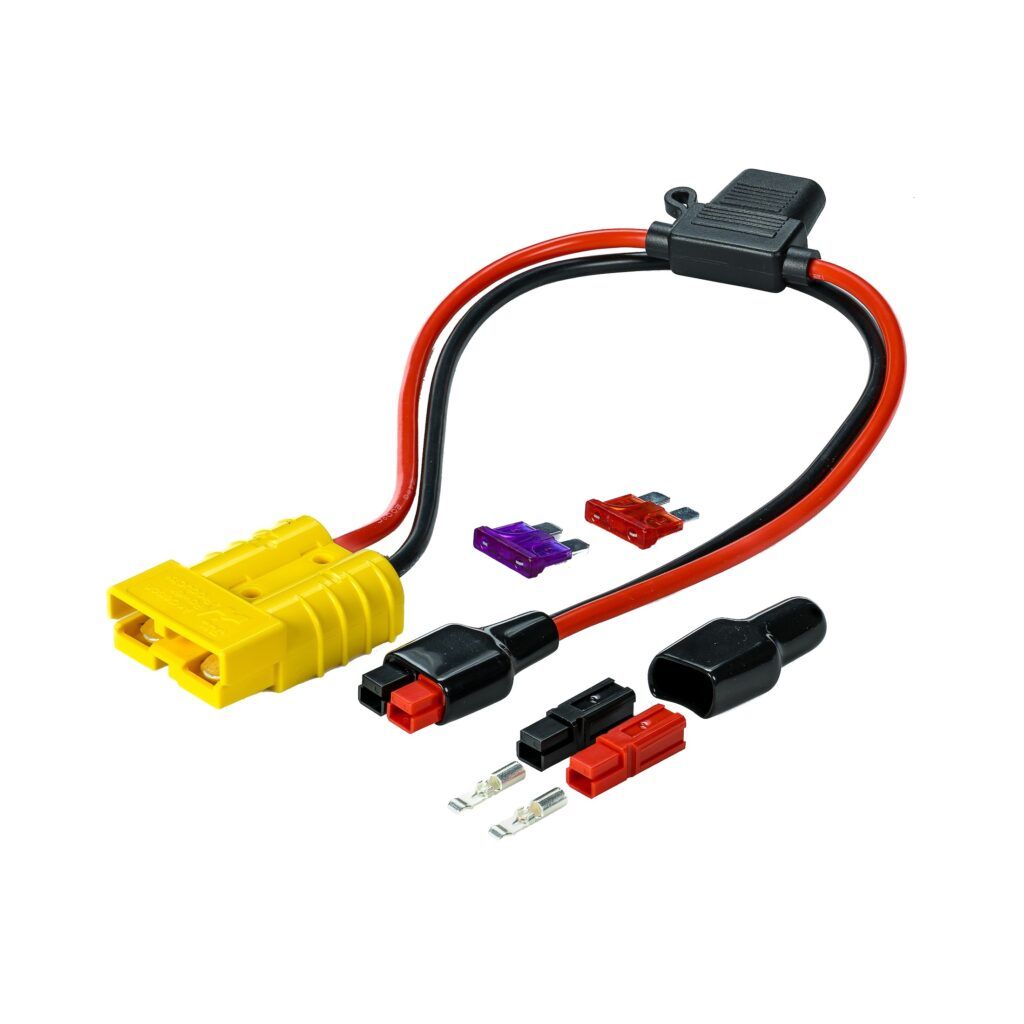

Quick Connect Outdoorbox EDGE – Fish Finder

Installation and usage:

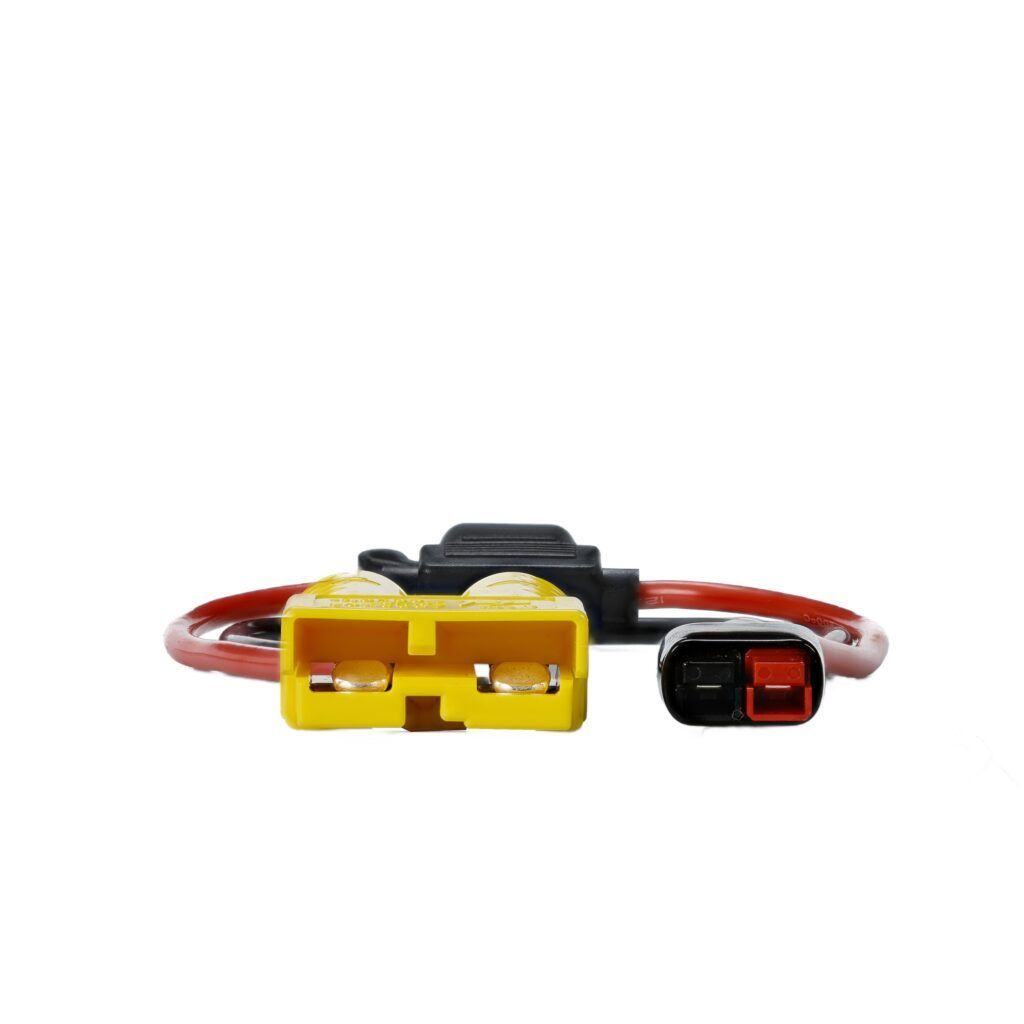

• 1Insert the yellow Anderson SB50 plug of the Quick Connect cable into the matching SB50 output of your Outdoorbox EDGE until it clicks securely.
• 2Prepare the power cable of your fish finder. Strip the wire ends (+ / –) according to the terminal specifications.
• 3Crimp the PA45/ANEN terminals:
  * The silver-colored terminals of the ANEN PA45 connector can be crimped using an AMP-style crimping tool for non-insulated cable connectors.
  * After crimping, insert the terminals into the red (+) and black (–) connector housings until you hear a clear “click”. The terminals are now locked and cannot be removed.
• 4Slide the red and black connector housings into the black protective sheath to complete the PA45 plug assembly.
• 5Connect the finished PA45 plug to the PA45 connector on the Quick Connect cable. Make sure polarity matches.
• 6Check that the 3A inline fuse is installed correctly and replace it if needed with one of the included spare fuses.
• 7Ensure all connectors are clean, dry and fully seated. Your fish finder is now ready for use.

Important information:

• 1This cable is intended only for low-power electronics such as fish finders, chartplotters and depth sounders. Do not use it for electric motors or other high-load devices.
• 2Ensure that your device’s power consumption does not exceed the installed fuse value. Check your fish finder specifications before use.
• 3The inline fuse protects both your device and the Outdoorbox EDGE. Only open the fuse holder to replace the fuse. Do not modify, alter or bypass the fuse holder or the SB50 / PA45 connectors.
• 4Keep all connectors — including the SB50 plug, PA45 plug and fuse holder — clean, dry and free from debris during use. The Outdoorbox EDGE is IP65 when closed, but connectors themselves are not waterproof.
• 5Inspect the cable, connectors and fuse before each use. Discontinue use immediately if you notice damage, corrosion, melting, discoloration or abnormal heat.
• 6Always match polarity (+ / –) when assembling or connecting the PA45 plug. Incorrect wiring can damage your fish finder or the Outdoorbox EDGE.
• 7Only use the included replacement fuses (3A, 5A or 10A as appropriate for your device). Never operate the cable without a fuse installed.
