12V08 AV li-ion battery with Charger 12.6V4A Li-ion with XT60

Home

Products

€178.50

12V08 AV (89Wh) battery with 12.6V4A charger. This battery is a compact and ultra-light (0.7kg) lithium-ion battery designed to power small 12V devices like fish finders, bait boats and alarms. It features advanced engineering, a robust Battery Management System (BMS), IP67 waterproof protection and a 3-year warranty. Includes 12.6V4A charger.
Read more >

Power: 12V - 18 Amps - 199 Wh

Application: belly boats, bait boats, small-sized fishfinders and depth sounders, kayaks, waterside energy

Weight: 1.3 kg

Ease of use: charged within 3,5-4,5 hours with 6A charger, deep discharge up to 100%

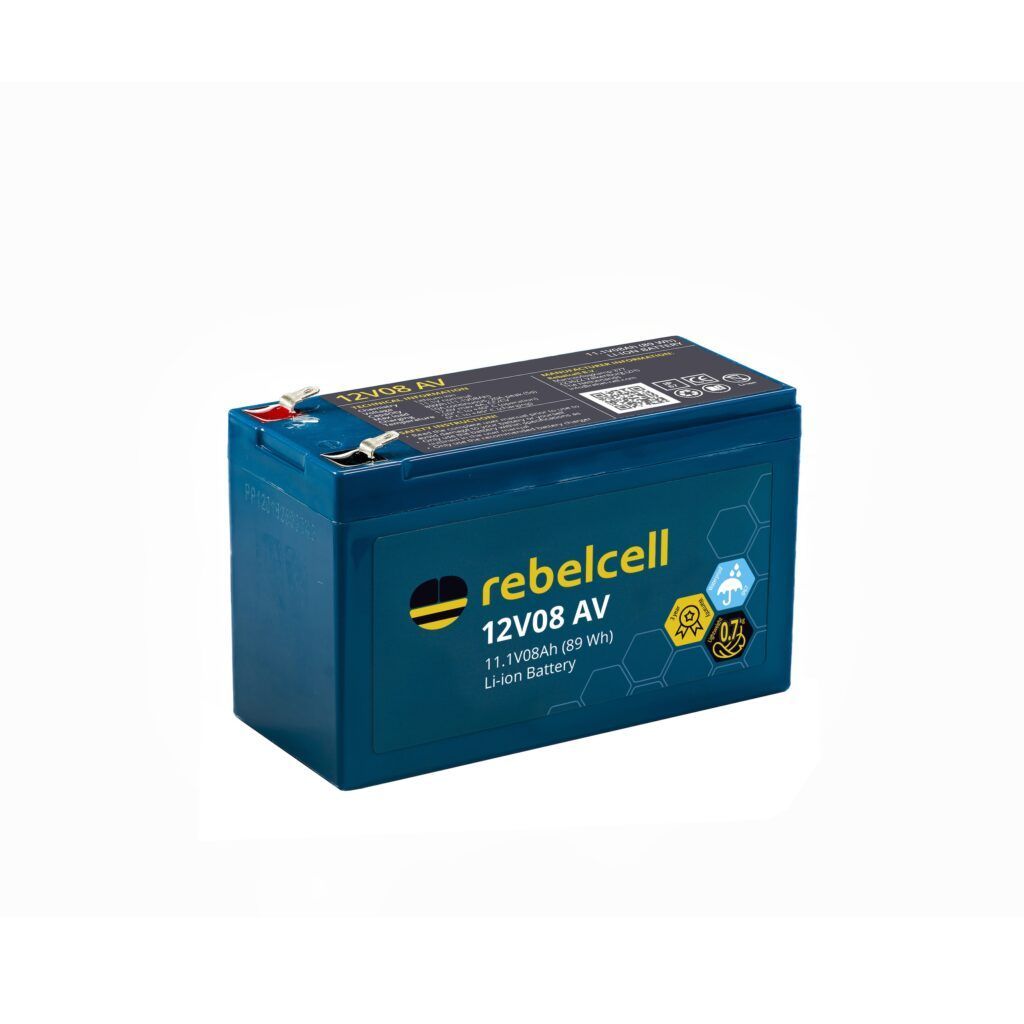

12V08 AV Lithium Battery - NEW

NEW! The 12V08 AV (89Wh) is a compact and lightweight (0.7 kg) lithium-ion battery designed as power supply for (small-sized: 4-5 inch) 12V depth sounders / fish finders, bait boats, (mobile) alarm systems and more. It features advanced engineering, a robust Battery Management System (BMS), IP67 waterproof protection and a 3-year warranty. This battery can be carried in your hand luggage when flying.
Read more >

€129.00

In stock

12.6V4A XT60 Lithium charger

The 12.6V4A XT60 charger has been specially engineered to charge 12V AV Rebelcell Lithium batteries. The specially designed charging programme ensures that your battery is charged quickly, safely and automatically with the correct charging profile (voltage / charging current). For example, a 12V30 AV Lithium battery can be charged within 9 hours.
Read more>

€49.50

In stock

Warranty: 3 Years

In stock

Compact & lightweight: the battery weighs just 1.3 kg with the same dimensions of a standard 9A lead-battery.

High Ease of Use: lightweight and compact, can be recharged quickly and in between charges (full recharge in 3,5-4,5 hours with 6A charger).

Low battery costs: up to 50% per year lower than a lead battery.

Top performance: deep discharge (up to 100%) without negative effects on performance or cycle life.

Reliable and long life: built-in abuse protection (against deep discharge, over voltage, high temperatures etc.) through BMS and service life up to 10 years.

Warranty: three years.

PLEASE REVIEW THE BELOW INFORMATION BEFORE COMPLETING YOUR ORDER

1Only charge the battery with a recommended 12.6V charger with a maximum charging current of 6A. Using other chargers can be unsafe and will void the warranty.
2Extra (ballast) weight might be required when using with bait boats. Please consult your bait boat specialist for specific advice.
3Your battery is ‘waterproof’ according to the IP67 standard. To avoid issues, we recommend placing the battery in a waterproof battery container and/or on an elevation to ensure that the battery is never partly or fully in the water on the bottom of your (bait)boat.

TECHNICAL SPECIFICATIONS

Chemistry

Li-ion

Voltage

11.1V

Capacity (C1-C20)

18Ah

EqPb (comparable lead battery)

Up to 35Ah

Self discharge

2-4% per month

Nominal energy

199 Wh

Energy density

133 Wh/kg

Maximum continuous discharge

20A

Peak discharge (10 sec)

40A

Parallel / Series Connection

Parallel: Yes, max 4 batteries (4P)

Series: No

Lifetime (#charges) (@ 80% DoD)

1500

Lifetime (#charges) (@ 100% DoD)

1000

Dimensions (in mm)

151 x 65 x 95

Weight

1.3 kg

Weight package

1.4 kg

Connectors

Faston

SUITABLE CHARGERS

CHARGING TIME

12.6V4A XT60 Lithium charger

5-6 h.

12.6V6A Lithium charger

3,5-4,5 h.

ELECTRONICS & BMS

Bandwidth voltage

9.0V - 12.6V

Charge temperature

0°C - 45°C

Discharge temperature

-20°C - 60°C

Storage temperature

0°C - 45°C

Charging profile

CC/CV

State of charge indicator

Charging via alternator

Maximum charging current

15A

Charging voltage

12.6V

Maximum alternator charging current

N/A

Integrated cell balancing

Yes

Temperature protection

Yes

Maximum discharge current protection

Yes

Overvoltage protection

Yes

Undervoltage protection

Yes

Short circuit protection

Yes

Bluetooth app

Frost control

PROTECTION & CERTIFICATION

Security class (IEC 529)

IP67

Certification

Shipping classification

UN3480, lithium-ion batteries, class 9

Warranty

Three years

Barcode

8720964631264

EAN

8720964631264

Product code

12018REUA1A

HS code (International / EU)

850760 / 85076000

ADR

Yes, UN 3480

User manual Rebelcell 12V18 AV battery

Reviews

There are no reviews yet.

Be the first to review “12V08 AV li-ion battery with Charger 12.6V4A Li-ion with XT60”

Product description Rebelcell 12V18 AV li-ion battery

The 12V18 AV (199Wh) is a compact and lightweight (1.3kg) lithium-ion battery designed as power supply for (small-sized: 4-5 inch) 12V depth sounders / fish finders, bait boats, (mobile) alarm systems and more. It features advanced engineering, a robust Battery Management System (BMS), IP67 waterproof protection and a 3-year warranty.

Looking for the right battery for your fish finder or depth sounder? We are happy to help you in our knowledge base!

Tip: keep your 12V18AV battery dry with our battery bag!

Product code: 12018REUA1A

Barcode: 8720964631264

EAN: 8720964631264

PRODUCT DESCRIPTION REBELCELL 12.6V4A XT60 BATTERY CHARGER

The charger has a XT60 connector + a separate XT60-Faston charge cable to connect to your battery. Simply connect the XT60 connector to the XT60 charge cable connector and the charger will do the rest. You can easily monitor the status of the charging process via the LED indicator on the charger. The charger is equipped with a number of protection features such as short-circuit, reverse-polarity and overvoltage protection.

This charger is only designed for charging a Rebelcell 12V AV battery. If you charge other batteries than specified, (irreparable) damage may occur. The charger is designed for indoor use only and is not waterproof. If you need a charger for permanent fixing in your boat, check our waterproof chargers here. You can find more information on our chargers in our knowledge base.

Product code: LC12V04XT60

Barcode: 8720964630137

EAN: 8720964630137

EAN code of this set

8720964631660
