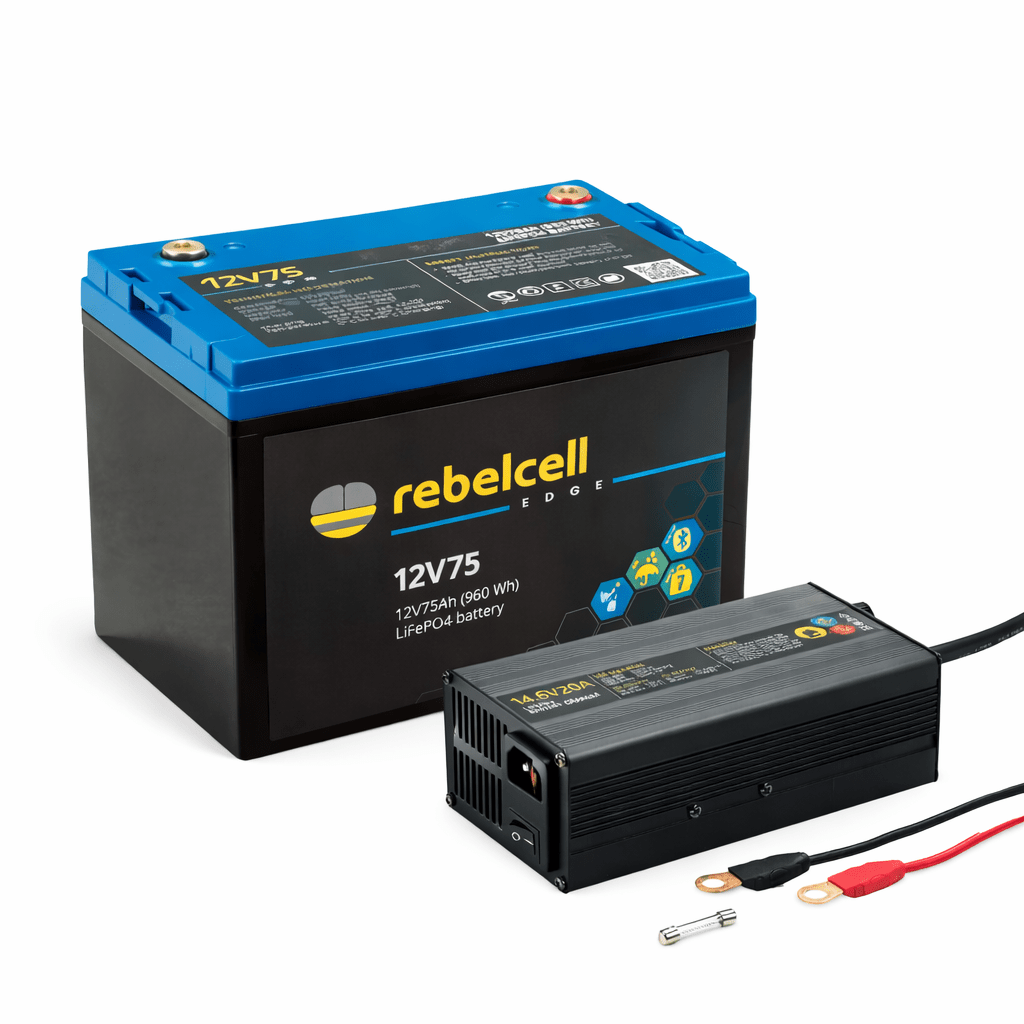

12V75 EDGE (960 Wh) with Charger 14.6V20A LiFePO4

Home

Products

€668.00

12V75 Edge (960Wh) battery with 14.6V20A charger. This LiFePO4 battery is a compact and powerful (6.2kg) solution for powering larger 12V trolling motors, fish finders, and marine electronics. It features Bluetooth app monitoring, a smart BMS, IP67 waterproof protection and a 3-year warranty. Includes 14.6V20A charger.
Read more >

Power: 12V - 75A - 960 Wh

Easy charging: charges quickly via your LiFePO4 charger

Application: power source for depth sounder and fishfinder, 12V trolling engine, service battery for campervan or caravan

App to view charge status, remaining runtime, current, charge cycles, temperature, battery health

12V75 EDGE LiFePO4 battery

NEW! The 12V75 EDGE LiFePO4 battery is a compact, lightweight (6.9kg), and high-performance battery designed for marine use and deep-cycle applications such as powering 12V trolling motors, fish finders, and service battery for campervan or caravan.

With IP66 waterproof protection, 3 year warranty, bluetooth connectivity for seamless monitoring via the Rebelcell BT app, the 12V75 EDGE delivers reliability and convenience for your adventures.
Read more >

€499.00

In stock

Charger_14.6V20A_XT60_top_side_overview_A

14.6V20A XT60 LiFePO4 Charger

The 14.6V20A XT60 LiFePO4 charger has been specially engineered to charge Rebelcell 12V EDGE / Outdoorbox EDGE / PRO LiFePO4 batteries. The specially designed charging programme ensures that your battery is charged safely and automatically with the correct charging profile (voltage / charging current). The charger features an automatic shut-off function, LED-indicator for charging status and protection features such as short-circuit, reverse-polarity and overvoltage protection.
Read more>

€169.00

In stock

Warranty: 3 Years

In stock

Versatility: power supply for 12V trolling engines, depth sounder; service battery for angling boat, sailing yacht, motorboat or campervan.

Compact & lightweight: the battery weighs just 6.9 kg and is up to 70% smaller than an equivalent lead-battery.

Parallel / Series connection: can connect up to 4 batteries in parallel (4P) or 2 batteries in series (2P) for additional capacity or higher voltage.

App: to view charge status, remaining runtime, current, charge cycles, temperature, battery health.

Top performance: deep discharge (up to 100%) without negative effects on performance or cycle life.

High Ease of Use: compatible with all 12V trolling engines and depth sounders. Easy monitoring of charge status, estimated runtime, battery health, and performance via the Rebelcell App.

Reliable and long life: built-in abuse protection through BMS and service life up to 10 years. IP66 waterproof.

Warranty: three years.

PLEASE REVIEW THE BELOW INFORMATION BEFORE COMPLETING YOUR ORDER

1 Only charge with recommended lithium (LiFePO4) battery charger with CC/CV charging profile and 14.6V max 35A voltage. Using a unsuitable charger can be unsafe and will automatically void warranty.
2 Securely tighten the battery bolts with a socket wrench: improperly fixed terminals can be dangerous and generate heat, which can lead to irreversible damage to your outboard, 12V equipment and battery!
3 Always use a suitable fuse between the battery and your equipment to protect both.
4 Always use batteries of the same brand, voltage, capacity, age and charge status when connecting in series or parallel. Use cables of same length and of sufficient thickness to connect batteries together and connect tightly with a socket wrench. Fully charge batteries before connecting together. Failure to do so may void your warranty.
5 Consult an electrician if you need assistance in connecting or installing your batteries.
6 Your battery is ‘waterproof’ according to the IP66 standard. To avoid issues, we recommend placing the battery in a waterproof battery container and/or on a elevation to ensure that the battery is never partly or fully in the water on the bottom of your boat.

TECHNICAL SPECIFICATIONS

Chemistry

LiFePO4

Voltage nominal

12.8V

Capacity (C1-C20)

75Ah

EqPb (comparable lead battery)

Up to 12V150 Ah

Self discharge

2-4% per month

Nominal energy

960 Wh

Energy density

139 Wh/kg

Maximum continuous discharge

100A

Peak discharge (<5s)

200A

Parallel / series connection

Parallel: Yes, max 4 batteries (4P)

Series Yes, max 2 batteries (2S)

Lifetime (#charges) (@ 80% DoD)

7500

Lifetime (#charges) (@ 100% DoD)

5000

Dimensions (in mm)

260 x 168 x 209

Weight

6.9 kg

Weight package

7.5 kg

SUITABLE CHARGERS

CHARGING TIME

14.6V20A LiFePO4 charger (normal or waterproof)

4-5 h.

14.6V35A LiFePO4 charger waterproof

3-4 h.

ELECTRONICS & BMS

Bandwidth voltage

10.8V - 14.6V

Charge temperature

0°C - 45°C

Discharge temperature

-20°C - 60°C

Storage temperature

0°C - 45°C

Charging profile

CC/CV

Charging voltage

14.6V ± 0.2V

Charging via alternator

Yes, DC DC converter recommended

Maximum charging current

35A (charger)

State of charge indicator

Yes, via Rebelcell BT app

Integrated cell balancing

Yes

High temperature protection

Yes

Maximum discharge current protection

Yes

Overvoltage protection

Yes

Undervoltage protection

Yes

Short circuit protection

Yes

Bluetooth app

Yes, for charge status, estimated runtime, current, temperature, cycle life.

Frost control

PROTECTION & CERTIFICATION

Security class (IEC 529)

IP66

Certfication

CE, MSDS, RohS, UN38.3

Shipping classification

UN3480, lithium-ion batteries, class 9

Warranty

3 years

Barcode

8720964631158

EAN

8720964631158

Product code

12075RCEDGE

HS code (International / EU)

850760 / 85076000

ADR

Yes, UN3480

User manual 12V EDGE LiFePO4 batteries

Reviews

There are no reviews yet.

Be the first to review “12V75 EDGE (960 Wh) with Charger 14.6V20A LiFePO4”

Product description Rebelcell 12V75 EDGE LiFePO4 Battery

The 12V75 EDGE LiFePO4 Battery is one of the new Rebelcell EDGE Series lithium batteries. The 12V75 EDGE (960 Wh) battery is a high-performance battery designed for marine use and deep-cycle applications such as powering 12V trolling motors, fish finders, and service battery for campervan or caravan. It features advanced engineering, a robust Battery Management System (BMS), and integrated Bluetooth connectivity for seamless monitoring via the Rebelcell Bluetooth App.

With IP66 waterproof protection and a 3-year warranty, the 12V75 EDGE delivers peace of mind for your adventures. Need more power? You can connect up to 4 batteries in parallel (or 2 in series).

The battery is completely maintenance-free and has as many as 5000 charge-cycles. That means 5000 charges and discharges. It is significantly lighter than a comparable lead battery and has a much lower annual loss. Thanks to the built-in Battery Management System, you never have to worry about discharging the battery too deeply and damaging it.

Product code: 12075RCEDGE

EAN: 8720964631158

PRODUCT DESCRIPTION REBELCELL 14.6V20A LiFePO4 BATTERY CHARGER

The 14.6V20A LiFePO4 charger has been specially engineered to charge Rebelcell 12V EDGE or PRO LiFePO4 batteries. The specially designed charging programme ensures that your battery is charged safely and automatically with the correct charging profile (voltage / charging current). The charger shuts off automatically when the charging process is completed.

You can easily monitor the status of the charging process via the LED indicator on the charger. The charger is equipped with a number of protection features such as short-circuit, reverse-polarity and overvoltage protection.

If you charge other batteries than specified, (irreparable) damage may occur. The charger is designed for indoor use only and is not waterproof. If you need a charger for permanent fixing in your boat, check our waterproof charger here. You can find more information on our chargers in our knowledge base.

Indicative charging times
12V75 EDGE: 4-5 h

Product code: LC14V20REPR

Barcode: 8720964631561

EAN: 8720964631561

EAN Code of this set

8720964631691

12V75 EDGE (960 Wh) with Charger 14.6V20A LiFePO4

12V75 EDGE LiFePO4 battery

14.6V20A XT60 LiFePO4 Charger

Reviews

Product description Rebelcell 12V75 EDGE LiFePO4 Battery

PRODUCT DESCRIPTION REBELCELL 14.6V20A LiFePO4 BATTERY CHARGER

EAN Code of this set
