36V75 BT li-ion battery with bluetooth (2,69 kWh) with Charger 42V20A li-ion (IP65) waterproof

Home

Products

€2,898.00

NEW! The 36V75 BT Lithium Battery – a compact, lightweight 36V lithium-ion battery with Bluetooth. It delivers 75 Ah (2.775 kWh) of power and weighs just 12.7 kg. With features like IP67 waterproof protection, 3 year warranty, an advanced Battery Management System (BMS) and bluetooth connectivity, it is perfect for powering 36V electric outboard motors and 24V/36V trolling motors.
Read more >

Power: 36V - 75 Amps - 2.775 kWh. Replaces 3 x 12V130Ah lead-acid battery pack.

Application: Application: 36V electric outboard engines. Can be charged via a regular charger and 'on the go' via your outboard engine in combination with the Range Extender.

Runtime: dependent on weather conditions, currents, weight and load of boat and if carbon brush or brushless motor is used. Indicative runtime: 1 -2 full fishing days.

BT-App: to view charge status, current, estimated runtime, charge cycles, temperature, battery health

Stacked from 13 images. Method=B (R=8,S=4)

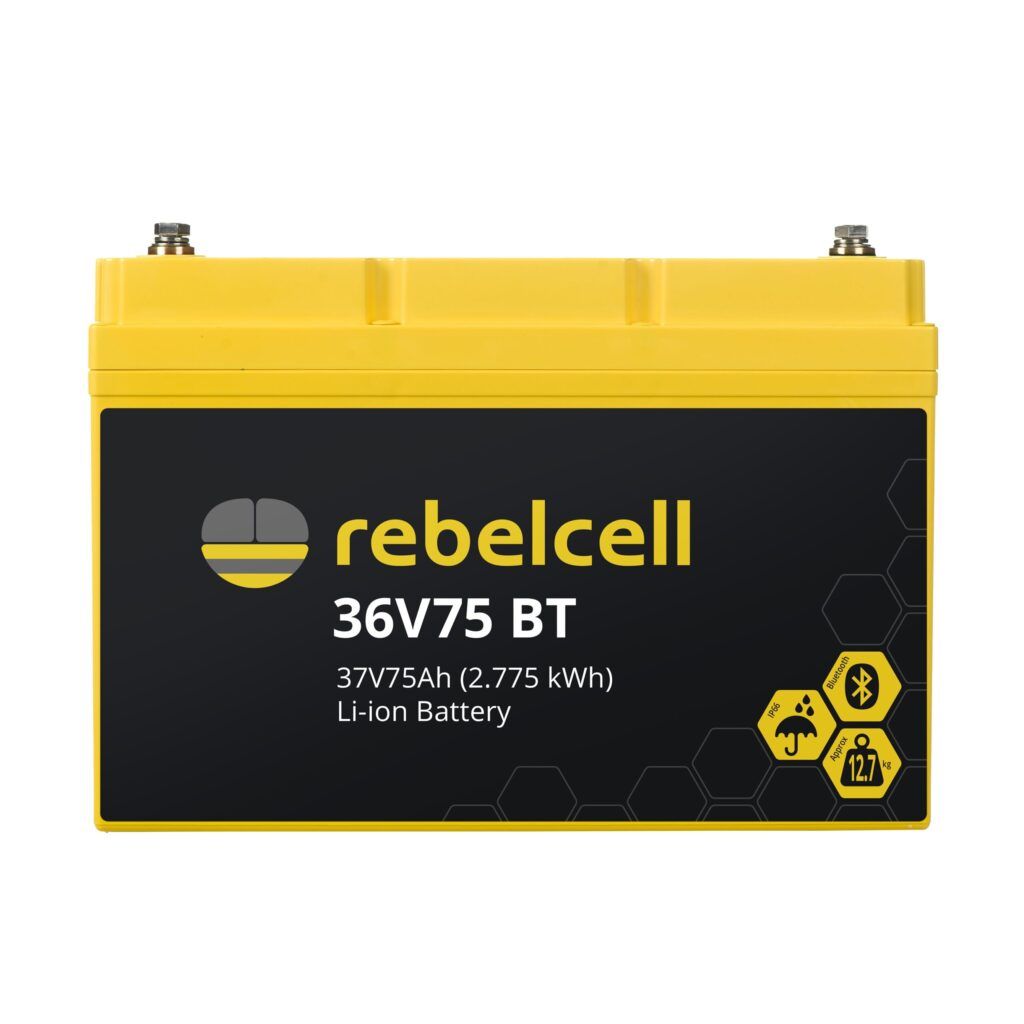

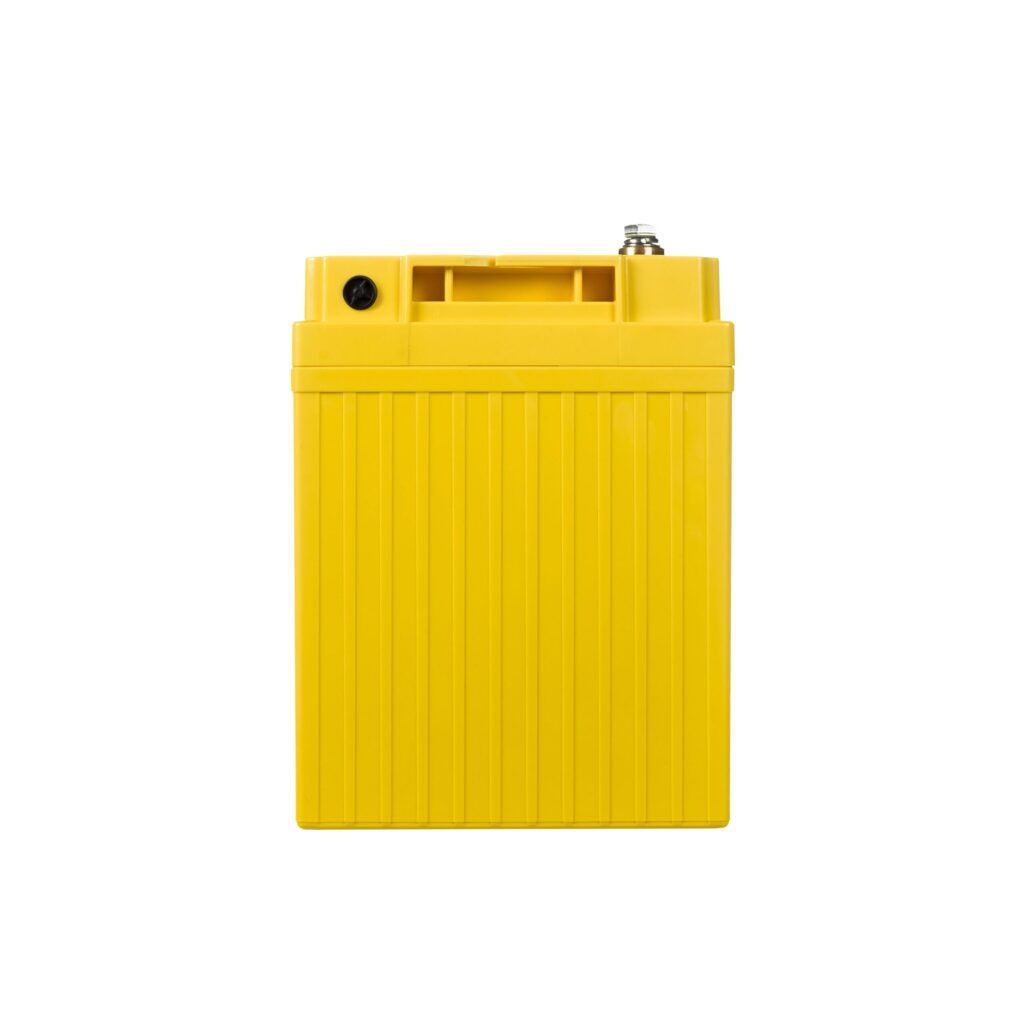

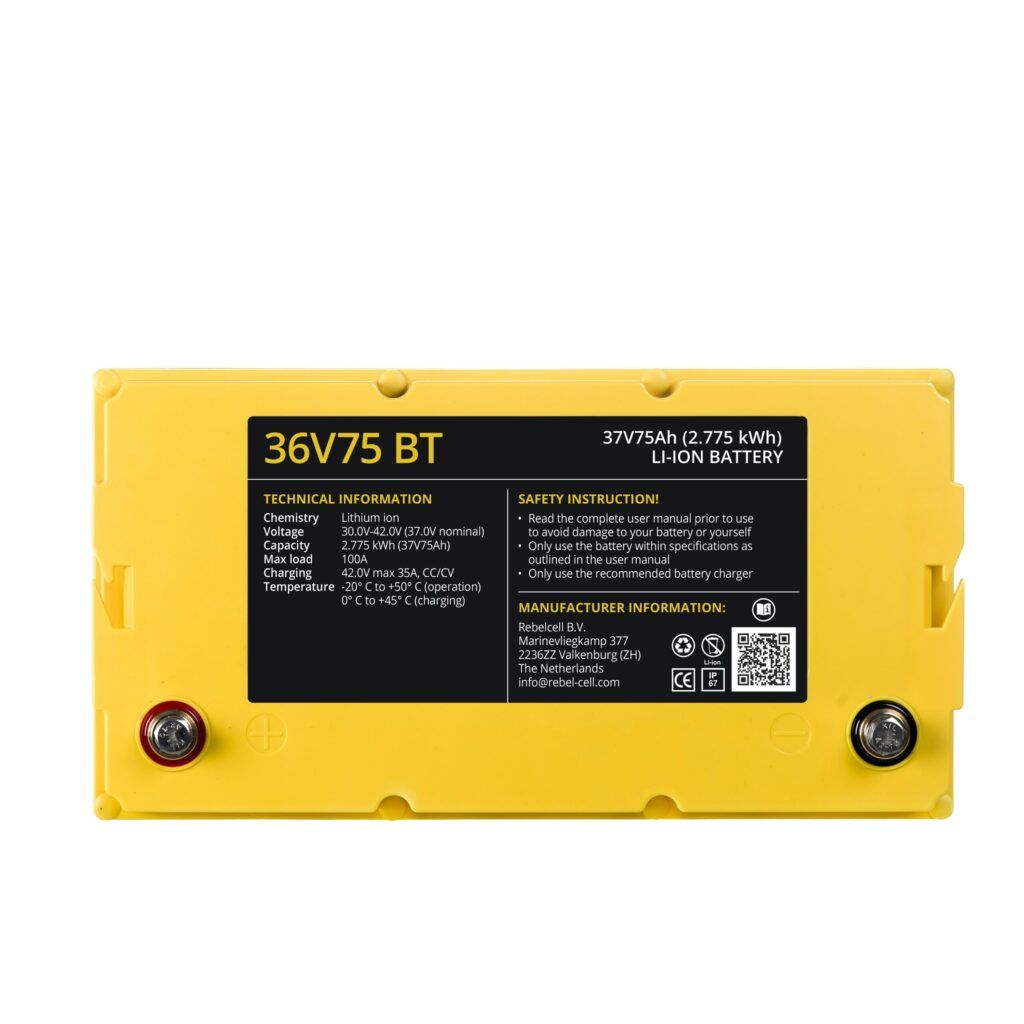

36V75 BT Lithium battery

€2,499.00

In stock

42V20A Lithium charger waterproof (IP65)

NEW! The 42V20A Lithium charger (IP65) waterproof has been specially engineered to charge Rebelcell 36V Lithium batteries. The specially designed charging programme ensures that your battery is charged safely and automatically with the correct charging profile (voltage / charging current). For example, a 36V70 BT Lithium Battery can be charged within 6 hours. This charger is sealed with epoxy resin, making it ideal for permanent installation in your boat.
Read more>

€399.00

In stock

Warranty: 3 Years

In stock

Compact & lightweight: the battery weighs 12.7 kg and is up to 100% more compact than an equivalent (3 x 12V130Ah) lead-battery pack. Saves up to 100kg in battery weight.

High Ease of Use: can be recharged quickly and in between charges (full recharge within 5-6 with 42V20A charger.

BT-app: app to view charge status, current, estimated runtime, charge cycles, temperature, battery health.

Top performance: deep discharge (up to 100%) and continuous high thrust without negative effects on performance or cycle life.

Reliable and long life: built-in abuse protection (against deep discharge, over voltage, high temperatures etc.) through BMS and service life up to 10 years.

Warranty: three years.

PLEASE REVIEW THE BELOW INFORMATION BEFORE COMPLETING YOUR ORDER

Use Only with 36V Electric Outboard Motors: never use crocodile clamps to connect equipment to the battery. These connections are unsafe and can cause overheating, damaging your equipment or battery. Always use a fuse between the battery and trolling motor, and connect using thick battery cables with M8 tongue connectors and ANEN plug connectors for a secure connection.
Charging: only charge with a lithium-ion charger that has a CC/CV charge profile (42V max 35A) or charge by your outboard in combination with the Range Extender.
Waterproof: the battery is IP67 waterproof. However, do not let the battery sit in water. Secure it in place with fixation bands on a vibration-free surface to prevent sliding.

Take these considerations into account to maximize the performance and lifespan of your Rebelcell 36V75 BT. If you have any further questions or concerns, feel free to reach out to our customer support team.

TECHNICAL SPECIFICATIONS

Chemistry

Lithium

Voltage

37.0V

Capacity (C1-C20)

75Ah

EqPb (comparable lead battery)

Up to 3x 12V130Ah

Self discharge

2-4% per month

Nominal energy

2,775 kWh

Energy density

218 Wh/kg

Maximum continuous discharge

100A

Peak discharge (10 sec)

200A

Lifetime (#charges) (@ 80% DoD)

1500

Lifetime (#charges) (@ 100% DoD)

1000

Dimensions (in mm)

327 x 173 x 225

Weight

12.7 kg

Weight package

13.0 kg

Connectors

SUITABLE CHARGERS

CHARGING TIME

42V20A Lithium charger waterproof

5-6 h.

ELECTRONICS & BMS

Bandwidth voltage

30V - 42V

Charge temperature

0°C - 45°C

Discharge temperature

-20°C - 60°C

Storage temperature

0°C - 45°C

Charging profile

CC/CV

State of charge indicator

Yes, via BT app

Charging via alternator

Yes, via the Range Extender 42V5A

Maximum charging current

35A

Charging voltage

42V

Maximum alternator charging current

no maximum with Range Extender 42V5A

Parallel connection

Yes, max 2 batteries (2P)

Series connection

Cell balancing

Yes

High temperature protection

Yes

Low temperature protection

Yes

Frost control

Yes

Maximum discharge current protection

Yes

Overvoltage protection

Yes

Undervoltage protection

Yes

Reverse polarity protection

Yes

Short circuit protection

Yes

Bluetooth app

Yes, for charge status, estimated runtime, current, temperature, cycle life.

PROTECTION & CERTIFICATION

Security class (IEC 529)

IP67

Certification

CE, UN38.3, MSDS

Shipping classification

UN3480, lithium-ion batteries, class 9

Warranty

Three years

Barcode

8720964631554

EAN

8720964631554

Product code

36075REUABT

HS code (International / EU)

850760 / 85076000

ADR

Yes, UN 3480

User manual 36V75 BT lithium-ion battery

Reviews

There are no reviews yet.

Be the first to review “36V75 BT li-ion battery with bluetooth (2,69 kWh) with Charger 42V20A li-ion (IP65) waterproof”

NEW! The 36V75 BT Lithium Battery is a compact, lightweight 36V lithium-ion battery with Bluetooth. It delivers 75 Ah (2.775 kWh) of power and weighs just 12.7 kg. With features like IP67 waterproof protection, 3 year warranty, an advanced Battery Management System (BMS) and bluetooth connectivity, it is perfect for powering 36V electric outboard motors and 24V/36V trolling motors.

This battery is maintenance-free and much lighter and smaller than lead batteries, saving up to 100 kg in weight. You can easily monitor charging, temperature, and battery health using the Rebelcell app.

Key features:

Compatible with 36V (and 24V/36V) electric outboard motors like Garmin Force / Kraken, Minn Kota Quest Series, Lowrance Ghost / Recon, and more
Charges in 5-6 hours with the 42V20A waterproof charger
Can charge ‘on the go ‘with your outboard engine and the 42V5A Range Extender
Up to 1500 charge cycles for extended use. Comes with a 3 year warranty.

Product code: 36075REUABT

Barcode: 8720964631554

EAN: 8720964631554
