43.8V20A LiFePO4 charger waterproof (IP65)

Home

Products

€399.00

NEW! The 43.8V20A LiFepo4 (IP65) waterproof has been specially engineered to charge Rebelcell 36V105 EDGE LiFePO4 batteries. The specially designed charging programme ensures that your battery is charged safely and automatically with the correct charging profile (voltage / charging current). A 36V105 EDGE LiFePO4 Battery can be charged within 9-10 hours. This charger is sealed with epoxy resin, making it ideal for permanent installation in your boat.
Read more>

Compatible: to charge 36V105 EDGE LiFePO4 Battery

Protection: IP65 waterproof and ideal for permanent installation in your boat.

Safety of use: no risk of overcharging, protected against reverse polarity

Quick charging: full charging within 9-10 hours (36V105 EDGE)

In stock

Compact & lightweight: the charger weighs just 2.8 kg.

High Ease of Use: Lightweight and compact, quick recharge

Reliable: built-in protection: no risk for overcharging. Charger switches off automatically when the battery is fully charged. Protected against reverse polarity.

Warranty: two years.

PLEASE REVIEW THE BELOW INFORMATION BEFORE COMPLETING YOUR ORDER

The Rebelcell 43.8V20A LiFePO4 charger is only intended for use with the 36V105 EDGE LiFePO4 batteries. Read the safety warnings and instructions on the charger before use.

TECHNICAL SPECIFICATIONS

Technology

MCU three-stage intelligent charging technology

Efficiency

Charging voltage

Size (in mm)

232×137×76 (including handle)

Weight

2.8±0.3 Kg

Weight package

4 kg

AC input

100-245Vac 46-63Hz

Power

1200W

Charging voltage

43.8V

Maximum charge current

20A

Charging profile

Pre-charge/CC/CV/Cut-off

Connector

Charge status indicator

Yes, via LED

Minimal battery voltage

Works at temperature

0⁰C to +45⁰C

COMPATIBLE WITH

CHARGING TIME

36V105 EDGE LiFePO4 BT Battery

9-10 h.

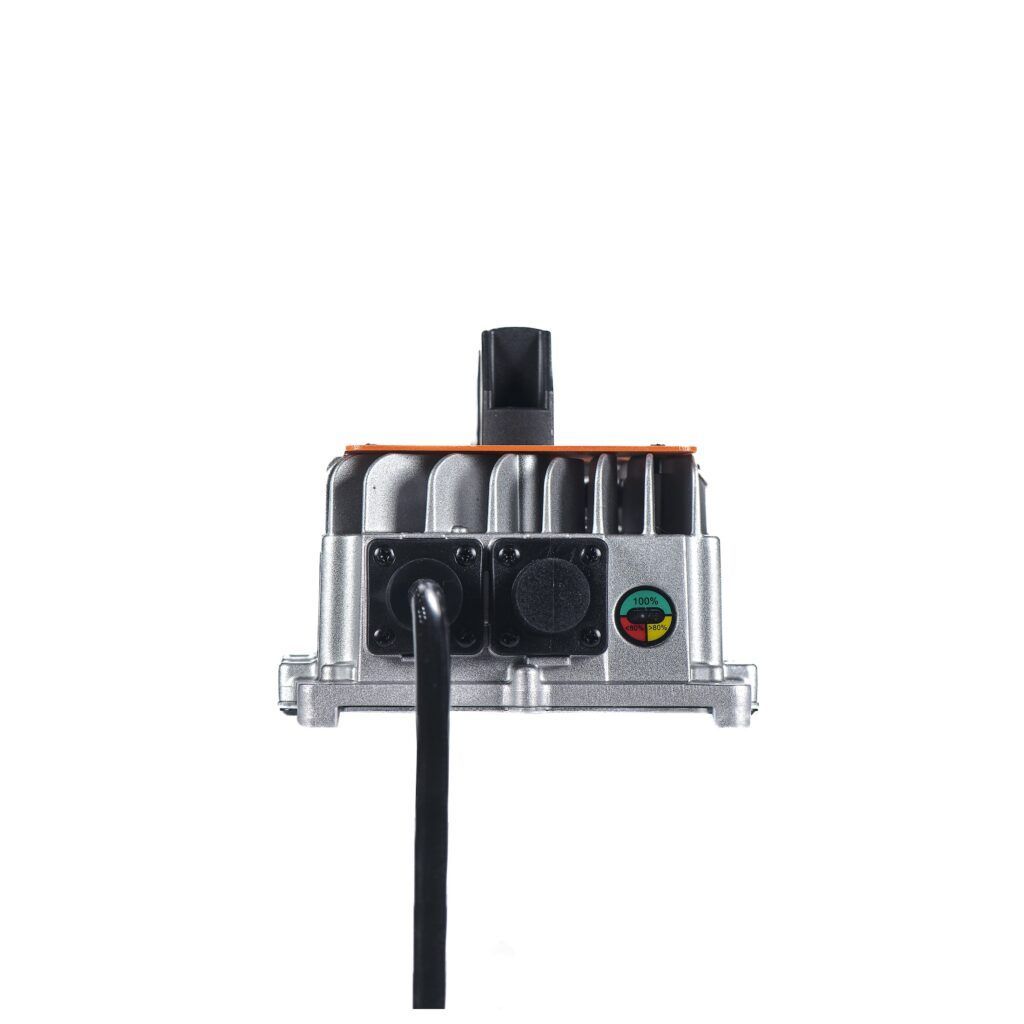

ELECTRONICS AND CHARGING INDICATOR

LED indicator

Standby: flashes alternatively

Red flashing: charging. Yellow flashing: charge > 80%

Green flashing: charge >98%. Green solid: charging complete (fan stops)

Over charge protection

Yes

Reverse polarity protection

Yes

Short circuit protection

Yes

Overvoltage protection

Yes

High temperature protection

Yes

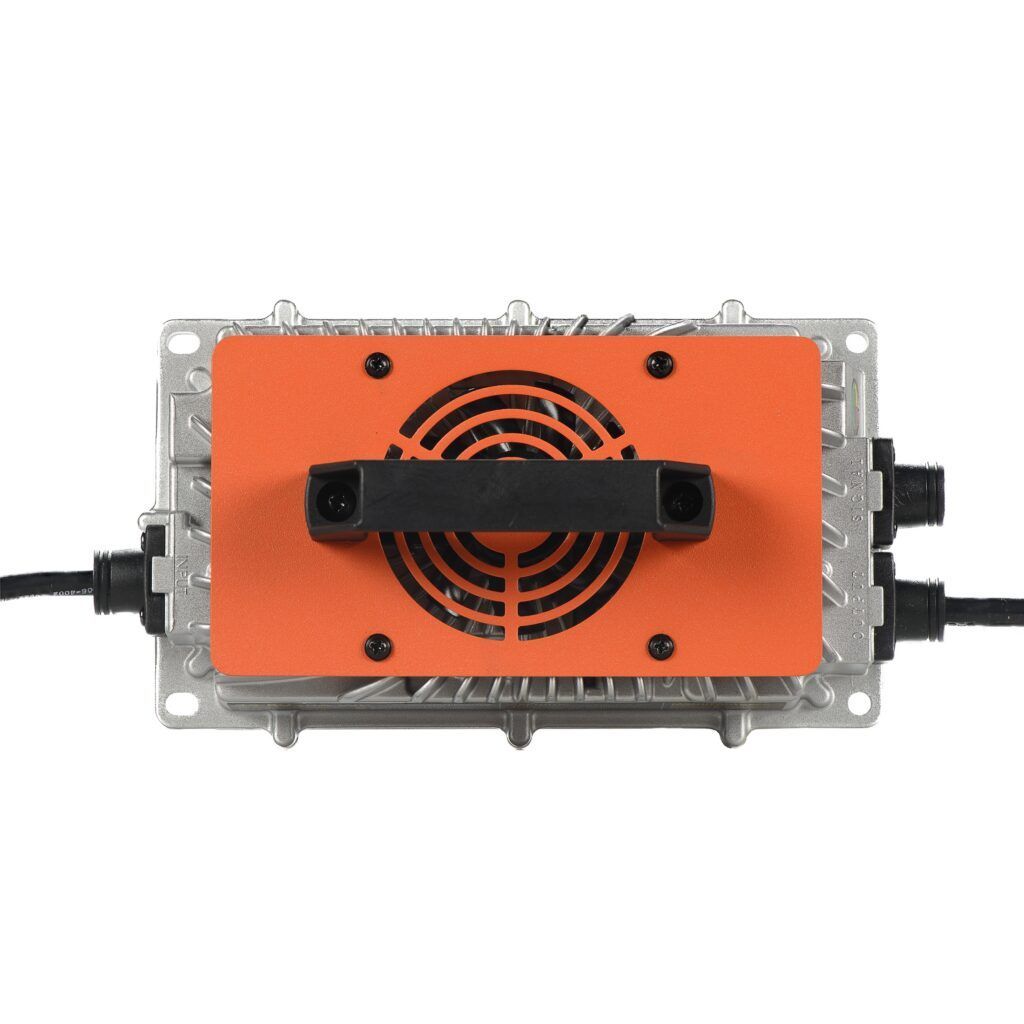

Cooling

Yes, forced ventilation with fan to cool charger

Heat sink

Yes, the outside case of the charger functions as heat sink

CERTIFICATION AND WARRANTY

Warranty

Two years

Certification

Standards (IEC 529)

IP65

Barcode

8720964631233

EAN

8720964631233

Product code

WC43V20REUA

HS code (International / EU)

850440 / 85044060

Reviews

There are no reviews yet.

Be the first to review “43.8V20A LiFePO4 charger waterproof (IP65)”

PRODUCT DESCRIPTION REBELCELL 43.8V20A LiFePO4 battery charger (IP65) waterproof

The 43.8V20A LiFePO4 charger waterproof (IP65) has been specially engineered to charge Rebelcell 36V105 EDGE LiFePO4 batteries. The specially designed charging programme ensures that your battery is charged safely and automatically with the correct charging profile (voltage / charging current). The charger shuts off automatically when the charging process is completed.

You can easily monitor the status of the charging process via the LED indicator on the charger. The charger is equipped with a number of protection features such as short-circuit, reverse-polarity and overvoltage protection, which ensure that you can safely use your charger in any situation. This charger is sealed with epoxy resin, making it ideal for permanent installation in your boat.

This charger is only designed for charging a Rebelcell 36V105 EDGE LiFePO4 battery. If you charge other batteries than specified, (irreparable) damage may occur. You can find more information in our knowledge base.

Charging times
36V105 EDGE: 9-10 h

Product code: WC43V20REUA

Barcode: 8720964631233

EAN: 8720964631233

43.8V20A LiFePO4 charger waterproof (IP65)

PLEASE REVIEW THE BELOW INFORMATION BEFORE COMPLETING YOUR ORDER

Reviews

PRODUCT DESCRIPTION REBELCELL 43.8V20A LiFePO4 battery charger (IP65) waterproof
