NEW! Outdoorbox 12V45 EDGE

Home

Products

€499.00

NEW! The compact, robust and lightweight Outdoorbox 12V45 EDGE (12V45 Ah / 576 Wh) combinessmart LiFePO4 technology, high performance, and ease of use. With features such as IP66 waterproof protection,a 3-year warranty, an advanced Battery Management System (BMS) and seamless monitoring via the Rebelcell BT app, the Outdoorbox is the ultimate weatherproof power supply: energy supply for 12V electric motors, fish finders and camping.
Read more>

Power: 12V - 45 Amps - 576 Wh

Application: 12V trolling engine, depth sounders, outdoor power supply

Runtime: depends on boat load, weather conditions, currents and type and use of e-motor. The ODB 12V45 EDGE replaces a lead-battery pack up to 12V90Ah (indicative runtime: 4-5 hours with 55 Lbs electric motor).

BT-App bluetooth enabled for use with Rebelcell App

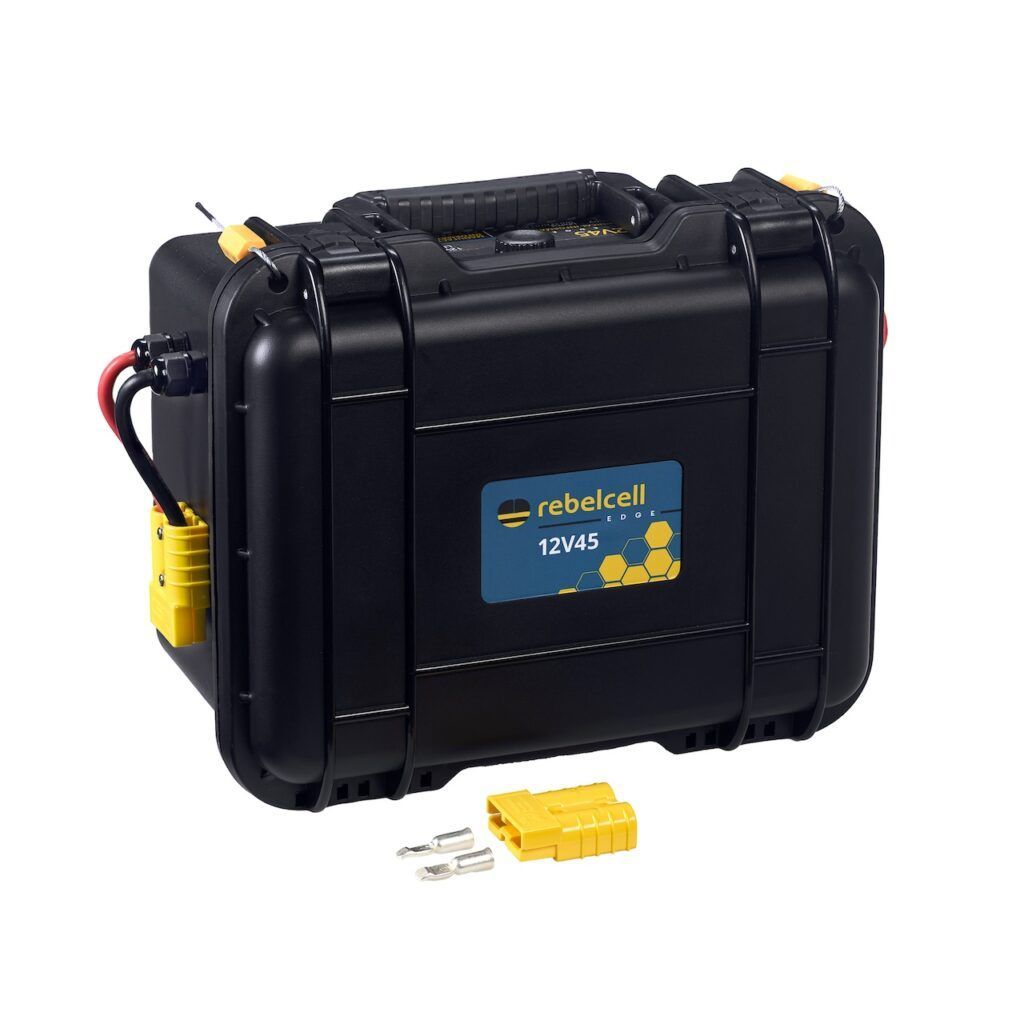

In your package: Outdoorbox 12V45 EDGE, yellow Anderson SB50-connector, user manual

In stock

Compact and lightweight: the Outdoorbox 12V45 EDGE weighs just 5.0 kg, replacing a lead-battery pack up to 12V90 Ah.

Top performance: up to 100A continuous discharge with deep discharge (up to 100%) without negative effects on performance or cycle life.

BT-App: to view charge status, current, charge cycles, estimated remaining runtime, temperature, battery health.

Compatibility: seemless compabitility with all 12V trolling engines and fish finders.

High ease of use: easy connection of trolling motor, fish finder or camping-equipment. Rebelcell BT app to monitor battery performance.

Reliable and long life: built-in abuse protection (against deep discharge, high voltage, high temperatures etc.)by BMS. User life up to 10 seasons.

Warranty: 3 years.

PLEASE REVIEW THE BELOW INFORMATION BEFORE COMPLETING YOUR ORDER

1Only charge with the Rebelcell 14.6V20A XT60 Lithium battery charger with yellow Anderson SB50 connector. Other connector plugs are not compatible with the connector of the ODB 12V45 EDGE!
2Do not use the ODB as a starter battery for combustion engines (e.g., cars or outboard motors).
3The ODB is waterproof according to IP66 standards, making it suitable for use in rainy conditions. To prevent issues, do not submerge the Outdoorbox in water for extended periods

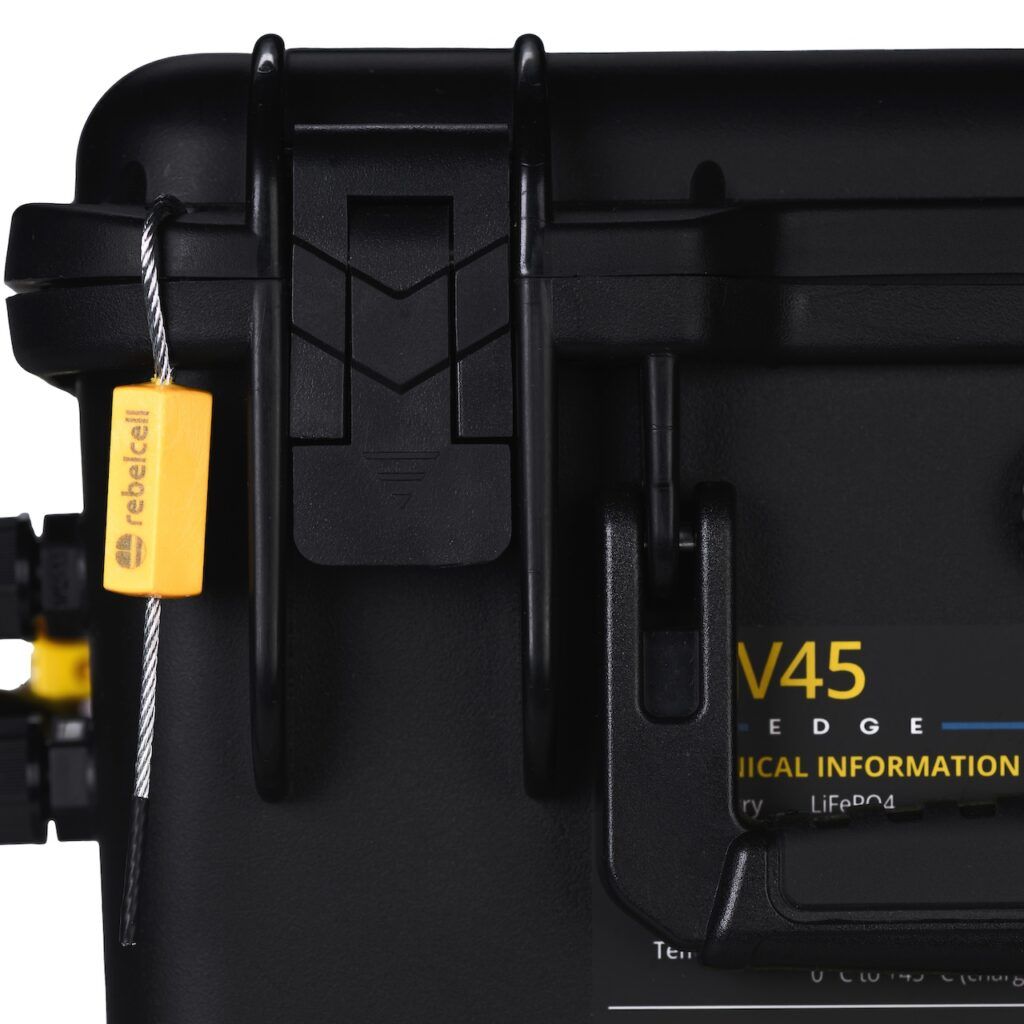

4Never try to open or remove the seal between the lid and the bottom of the Outdoorbox. Doing so may be dangerous and will automatically void the warranty.

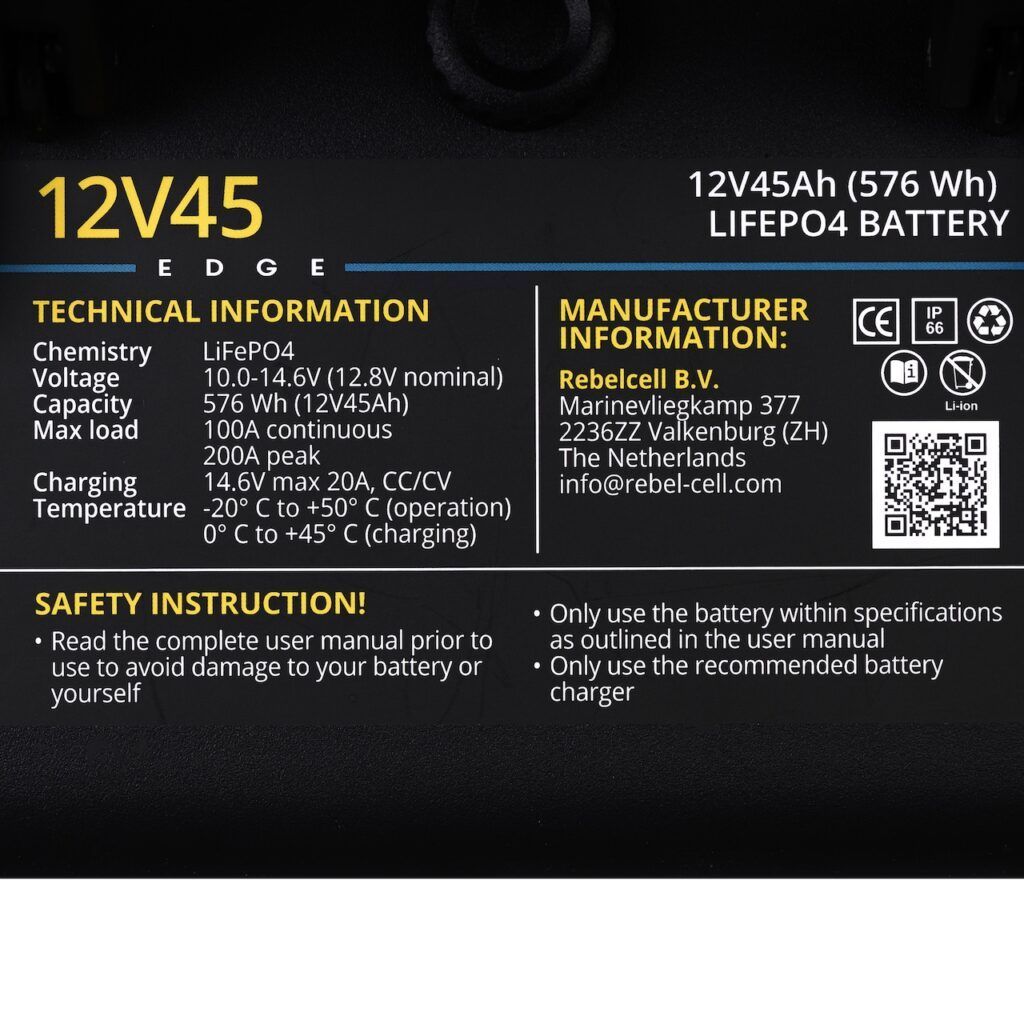

TECHNICAL SPECIFICATIONS

Chemistry

LiFePO4

Voltage

10V-14.6V (nominal 12.8V)

Capacity (C1-C20)

45Ah

EqPb (comparable lead battery)

Up to 90Ah

Nominal energy

576 Wh

Energy density

115 Wh/kg

Maximum continuous discharge

100A

Cycle life (#charges) (@80%DoD)

5000

Cycle life (#charges) (@100%DoD)

7500

Dimensions (in mm)

274 x 225 x 160

Weight

5.0 kg

Connectors

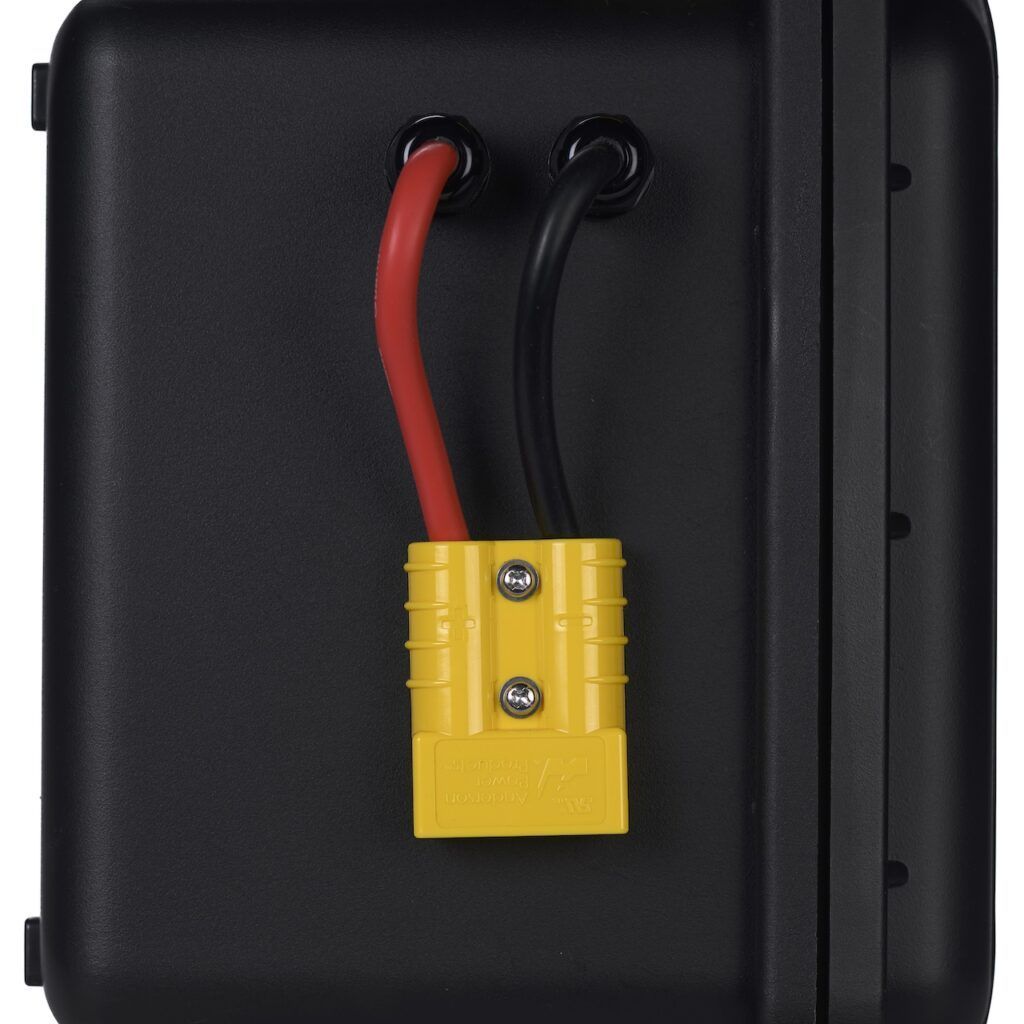

2x Anderson SB50 yellow

SUITABLE CHARGERS

CHARGING TIME

14.6V20A XT60 Lithium charger with yellow Anderson SB50-connector

3-4 h.

ELECTRONICS & BMS

Charge temperature

0°C - 45°C

Discharge temperature

-20°C - 60°C

Storage temperature

0°C - 45°C

Maximum charge current

20A (CC/CV)

Cell balancing

Yes

High temperature protection

Yes

Low temperature charging protection

Yes

Maximum discharge current protection

Yes

Short-circuit protection

Yes

Reverse polarity protection

Yes

High voltage protection

Yes

Low voltage protection

Yes

State of charge indicator

Yes, via Rebelcell BT app.

BT-App

Yes, for charge status, current, estimated runtime, temperature, cycle life.

PROTECTION & CERTIFICATION

IP-standard

IP66

Certification

CE, UN38.3, MSDS, IEC60529

Warranty

Three years

Barcode

8720964631448

EAN

8720964631448

Product code

ODB1245EDGE

HS code (International / EU)

850760 / 85076000

User manual Outdoorbox 12.45 EDGE / 12.75 EDGE / 12.105 EDGE

Reviews

There are no reviews yet.

Be the first to review “NEW! Outdoorbox 12V45 EDGE”

Product description Rebelcell Outdoorbox 12V45 EDGE

The compact, robust and lightweight Outdoorbox 12V45 EDGE (12V45 Ah / 576 Wh) combines smart LiFePO4 technology, high performance, and ease of use. With features such as IP66 waterproof protection, a 3-year warranty, an advanced Battery Management System (BMS) and seamless monitoring via the Rebelcell BT app, the Outdoorbox is the ultimate weatherproof power supply: energy supply for 12V electric motors, fish finders and camping.

Key Features:

Rugged Outdoor Design: impact-resistant and waterproof (IP66) casing for dependable use in any condition.
Bluetooth Connectivity: connects to the Rebelcell BT-app for realtime monitoring of charge status and battery performance (including estimated remaining runtime in minutes / hours).
Compatibility: seemless compabitility with all 12V trolling engines and fish finders
High-quality LiFePO4 cells: for long service life and safety.
Advanced protection: integrated Battery Management System (BMS) with advanced safety features.
Warranty: 3 year warranty.

Applications

Ideal For: Electric boating, carp fishing, kayak fishing, belly boats, marine, camping.
Versatile Use: Power 12V trolling motors, fish finders, and outdoor devices.

Product code: ODB1245EDGE

Barcode: 8720964631448

EAN: 8720964631448
