Check below for all compatible accessories for this product.

229.00 229.00

Small and lightweight 12V18 battery. Ideal for smaller fish finders and carp fishing. This battery operates at 12 volts and has a capacity of 18 Ah (amp hour).
Read more >

  • Power: 12V - 18 Amps - 199 Wh
  • Application: belly boats, bait boats, fish finders, waterside energy
  • Weight: 1,2 kg
  • Ease of use: charged within 5-6 hours with 4A charger, deep discharge up to 100%

Warranty: 2 Years

Quantity

In stock

SKU: 7106623685884
  • Compact & lightweight: the battery weighs just 1.2 kg with the same dimensions of a standard 9A lead-battery.
  • High Ease of Use: lightweight and compact, can be recharged quickly and in between charges (full recharge in 5-6 hours with 4A charger).
  • Low battery costs: up to 50% per year lower than a lead battery.
  • Top performance: deep discharge (up to 100%) without negative effects on performance or cycle life.
  • Reliable and long life: built-in abuse protection (against deep discharge, over voltage, high temperatures etc.) through BMS and service life up to 10 years.
  • Warranty: two years.

PAY ATTENTION! READ THE FOLLOWING INFORMATION BEFORE PURCHASING THE PRODUCT:

Weight 1.3 kg

PLEASE REVIEW THE BELOW INFORMATION BEFORE COMPLETING YOUR ORDER

  • 1Our batteries are splashwater proof according to the IP54 standard. They cannot be fully immersed in water or handle heavy rains. To avoid problems use a waterproof battery container or battery bag and position the battery upright on a slightly elevated level so that it is not continuously standing in the water, or water can enter via the top of the battery.
  • 2Extra (ballast) weight might be required when using with bait boats. Please consult your bait boat specialist for specific advice.
  • 3If you use a battery bag please ensure that NO water (from rain for instance) remains in the battery bag as this can damage the battery. Water damage is explicitly excluded from our warranty terms.

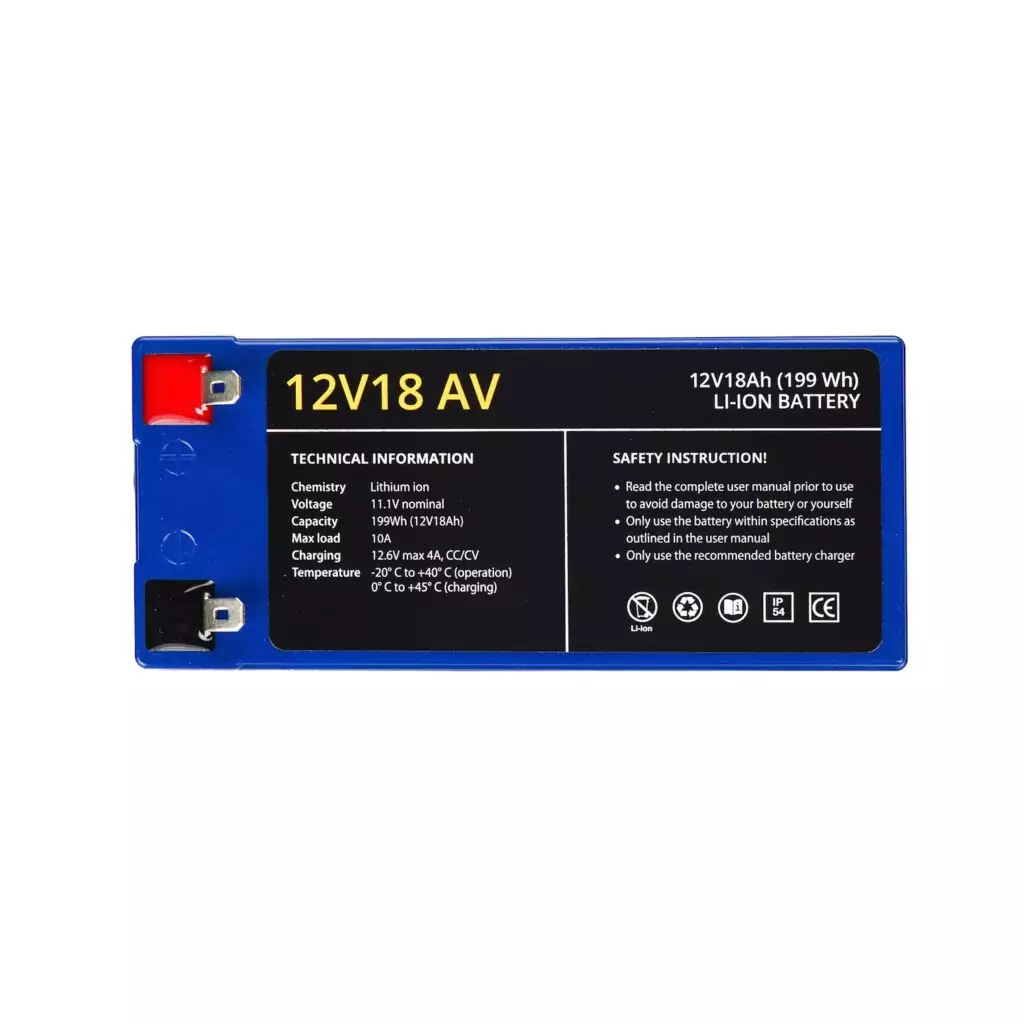

TECHNICAL SPECIFICATIONS
Chemistry
Lithium-ion
Voltage
11.1V
Capacity (C1-C20)
18Ah
EqPb (comparable lead battery)
Up to 35Ah
Self discharge
2-4% per month
Nominal energy
199 Wh
Energy density
165 Wh/kg
Maximum continuous discharge
10A
Peak discharge (10 sec)
15A
Lifetime (#charges) (@ 80% DoD)
1500
Lifetime (#charges) (@ 100% DoD)
1000
Dimensions (in mm)
151 x 65 x 95
Weight
1.2 kg
Weight package
1.3 kg
Connectors
Faston
SUITABLE CHARGERS
CHARGING TIME

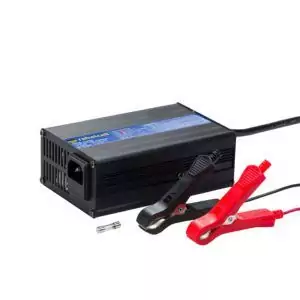

12.6V4A Li-ion charger
5-6 h.
12.6V6A Li-ion charger
3,5-4,5 h.
ELECTRONICS & BMS
Bandwidth voltage
9.0V - 12.6V
Charge temperature
0°C - 45°C
Discharge temperature
-20°C - 60°C
Storage temperature
0°C - 45°C
Charging profile
CC/CV
State of charge indicator
No
Charging via alternator
No
Maximum charging current
5A
Charging voltage
12.6V
Maximum alternator charging current
N/A
Integrated cell balancing
Yes
Temperature protection
Yes
Maximum discharge current protection
Yes
Overvoltage protection
Yes
Undervoltage protection
Yes
Short circuit protection
Yes
Bluetooth app
No
Frost control
No
PROTECTION & CERTIFICATION
Security class (IEC 529)
IP54
Certification
CE
Shipping classification
UN3480, lithium-ion batteries, class 9
Warranty
Two years
EAN
7106623685884
Product code
12018REUA1A
HS code
85076000
ADR
Yes, UN 3480

Reviews

There are no reviews yet.

Be the first to review “12V18 AV Battery”

Your email address will not be published.

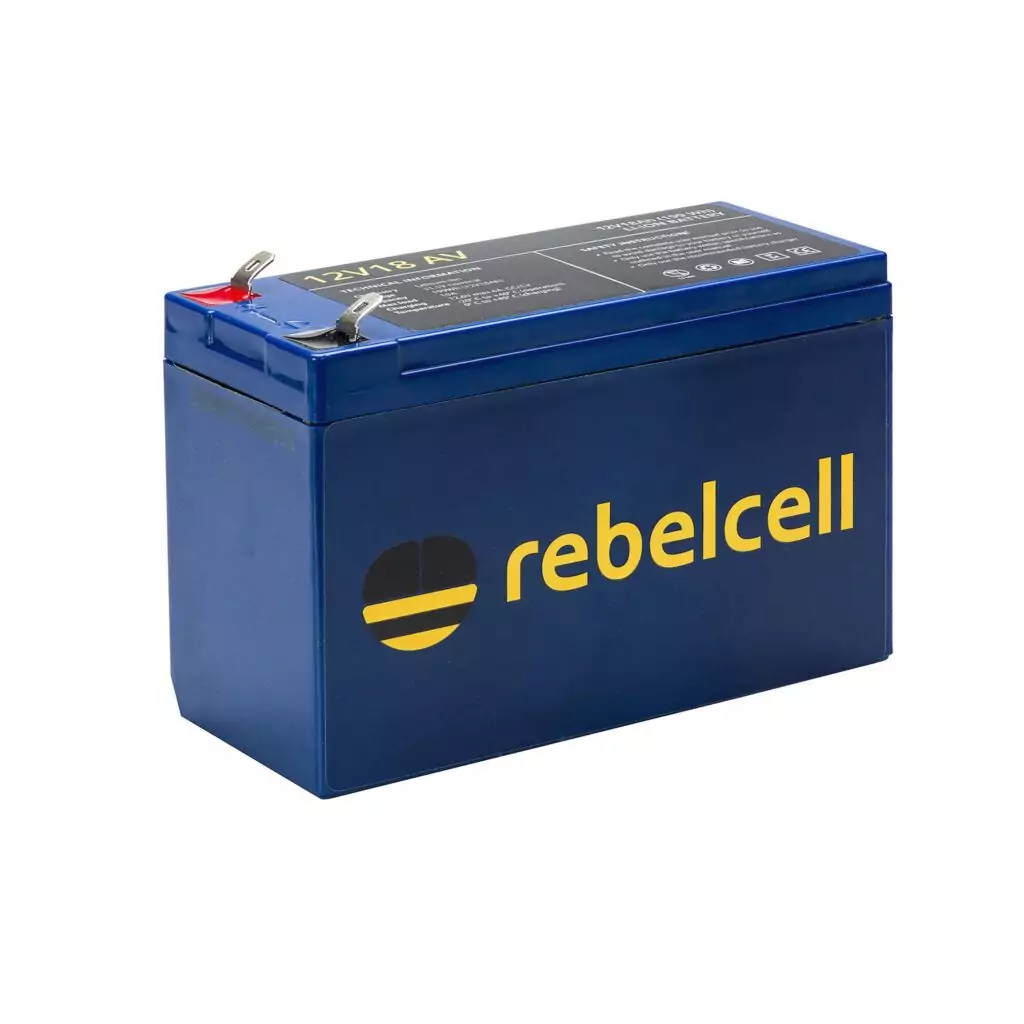

Product description Rebelcell 12V18 AV

Powerful and lightweight 12V18 AV lithium-ion battery. This battery operates at 12 volts, weighs 1.2kg and has a capacity of 18 Ah (ampere-hours).

This battery is used for the medium-sized (7-9 inch) depth gauges, fishfinders and baitboats and is ideal for energy supply on and around the water. Looking for the right battery for your fishfinder or depth sounder? We are happy to help you in our knowledge base!

The battery is completely maintenance-free and has as many as 1000 charge-cycles. That means 1,000 charges and discharges. It is significantly lighter than a comparable lead battery and has a much lower annual loss. Thanks to the built-in Battery Management System, you never have to worry about discharging the battery too deeply and damaging it.

Tip: keep your 12V18AV battery dry with our battery bag!
