14.6V20A LiFePO4 charger

Home

Products

€169.00

The 14.6V20A LiFePO4 charger has been specially engineered to charge Rebelcell 12V EDGE & PRO LiFePO4 batteries. This charger is designed for indoor use only and is not waterproof.
Read more>

Compatible: to charge 12V EDGE / PRO LiFePO4 Batteries

Weight: the charger weighs only 1.0 kg

Safety of use: no risk of overcharging, protected against reverse polarity, short circuit, overvoltage and overtemperature

Quick charging: full charging within 4-5 hours (12V75 EDGE) to 11-12 hours (12V210 EDGE)

Limited stock

Compact & lightweight: the charger weighs just 1.0 kg.

High Ease of Use: lightweight and compact, quick recharge

Reliable: Charger switches off automatically when the battery is fully charged.

Safety of use: no risk of overcharging, protected against reverse polarity, short circuit, overvoltage and overtemperature.

Warranty: 2 years.

PLEASE REVIEW THE BELOW INFORMATION BEFORE COMPLETING YOUR ORDER

1Only use to charge Rebelcell 12V EDGE or PRO LiFePO4 batteries. Charging other batteries can be unsafe and lead to irreversible damage to your battery.
2This charger is designed for indoor use only. Do not cover the charger, and only use in a properly ventilated room. Read the instructions on the sticker of the charger before use!
3Do This charger is not suitable for permanent fixing in a boat and should not be exposed to vapor, water or rain. If you need a waterproof charger please check the other options on our website.
4The phenomenon of sparking is normal when you connect your charger to your battery, this is due to the high current that flows from battery to charger.

TECHNICAL SPECIFICATIONS

Technology

Automatic charger with advanced high frequency switch mode power supply technology

Efficiency

>85%

Size (in mm)

180 x 90 x 60

Weight

1.0 kg

Weight package

1.2 kg

AC input

230 Volt 50-60Hz

Power

360 W

Charging voltage

14.6V

Maximum charge current

20A

Charging profile

Pre-charge/CC/CV/Cut-off

Connector

M8 tongue connector

Charge status indicator

Yes, via LED

Minimal battery voltage

Works at temperature

-10°C to +40°C

COMPATIBLE WITH

CHARGING TIME

12V75 EDGE LiFePO4 Battery

4-5 h.

12V105 EDGE LiFePO4 Battery

6-7 h.

12V210 EDGE LiFePO4 Battery

11-12 h.

12V80 PRO LiFePO4 Battery

4-5 h.

12V120 PRO LiFePO4 Battery

6-7 h.

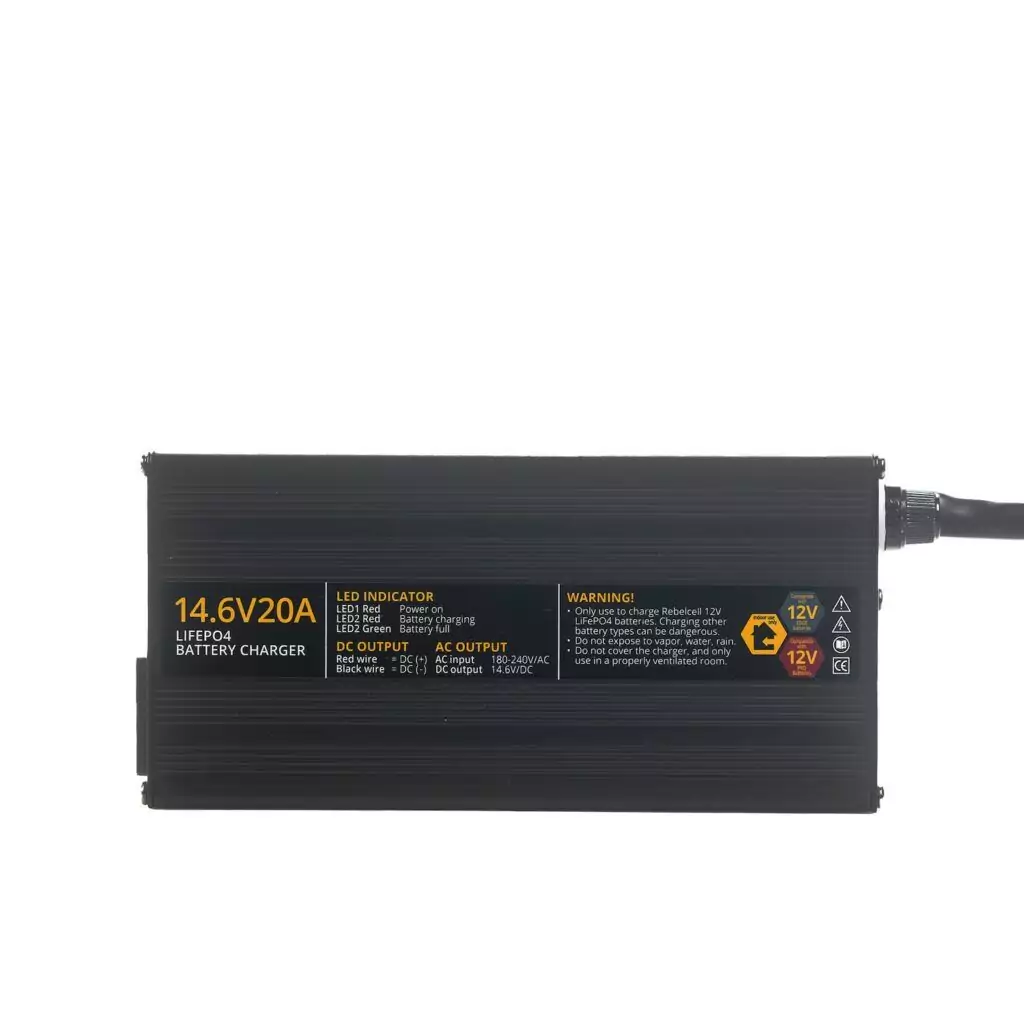

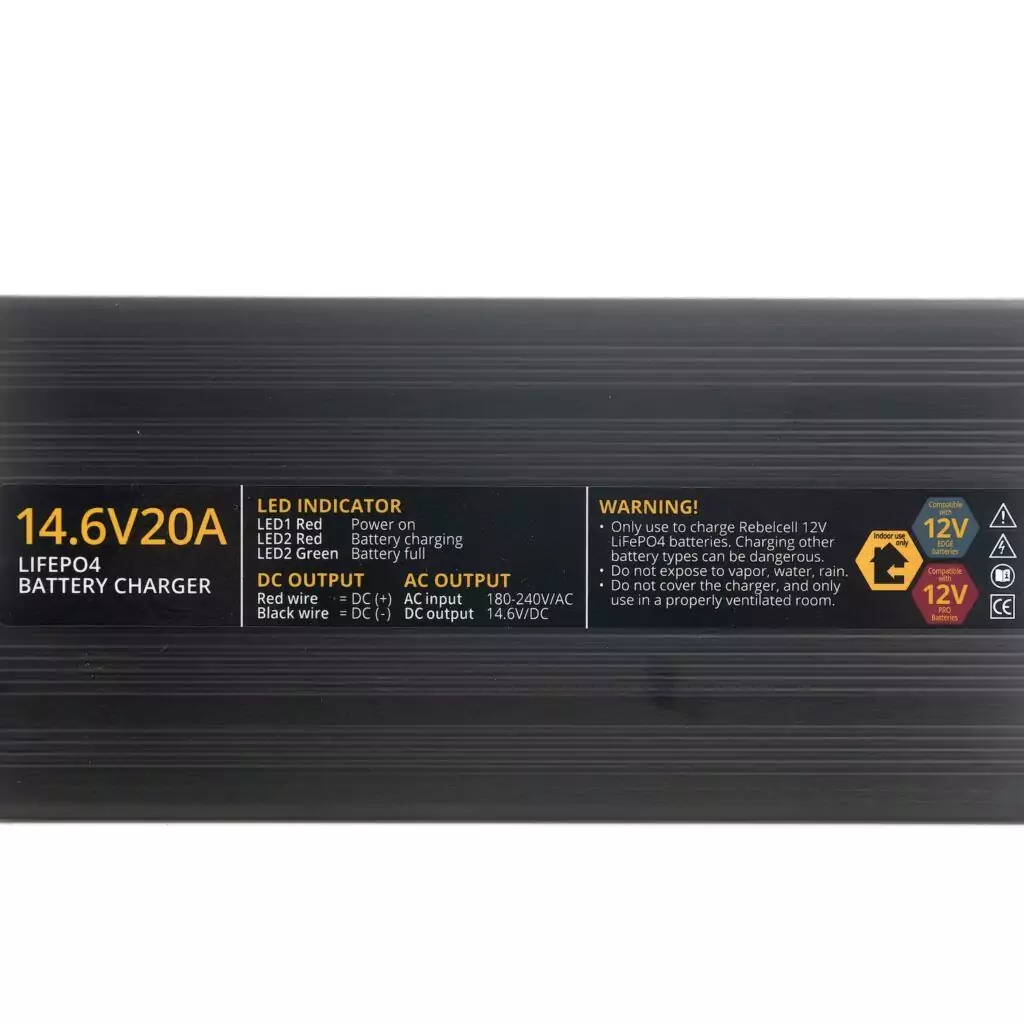

ELECTRONICS AND CHARGING INDICATOR

LED 1

Red: charging

LED 2

Red (charging on) and green (fully charged)

Over charge protection

Yes, 'auto power off' when charge process is completed

Reverse polarity protection

Yes

Short circuit protection

Yes

Overvoltage protection

Yes

High temperature protection

Suitable for outdoor use

Cooling

Yes, forced ventilation with fan to cool charger

Heat sink

Yes, the outside case of the charger functions as heat sink

CERTIFICATION AND WARRANTY

Warranty

Two years

Certification

CE, RoHS

Standards (IEC 529)

IEC 61000-3-2:2019

Barcode

8720964630663

EAN

8720964630663

Product code

LC14V20REPR

HS code (International / EU)

850440 / 85044060

Reviews

There are no reviews yet.

Be the first to review “14.6V20A LiFePO4 charger”

PRODUCT DESCRIPTION REBELCELL 14.6V20A LiFePO4 BATTERY CHARGER

The 14.6V20A LiFePO4 charger has been specially engineered to charge Rebelcell 12V EDGE or PRO LiFePO4 batteries. The specially designed charging programme ensures that your battery is charged safely and automatically with the correct charging profile (voltage / charging current). The charger shuts off automatically when the charging process is completed.

You can easily monitor the status of the charging process via the LED indicator on the charger. The charger is equipped with a number of protection features such as short-circuit, reverse-polarity and overvoltage protection.

If you charge other batteries than specified, (irreparable) damage may occur. The charger is designed for indoor use only and is not waterproof. If you need a charger for permanent fixing in your boat, check our waterproof charger here. You can find more information on our chargers in our knowledge base.

Indicative charging times
12V75 EDGE: 4-5 h
12V105 EDGE: 6-7 h
12V210 EDGE: 11-12 h
12V80 PRO: 4-5 h
12V120 PRO: 6-7 h

Product code: LC14V20REPR

Barcode: 8720964630663

EAN: 8720964630663
