42V5A Range Extender waterproof

Home

Products

€399.00

NEW! With the waterproof (IP65) Range Extender 42V05A you can extend your fishing day by recharging your Rebelcell 36V battery ‘on the go’ via the alternator of your outboard engine. It is easy to install thanks to its compact size and weight and suitable for permanent fixing in your boat. It continuously monitors the voltage in the starter battery to prevent inadvertent discharge, and provides the correct charging profile to safely charge your 36V battery.
Read more>

Compatible with: (outboard) engines with 12V alternator with at least 17A charge current. Works with both lead-acid and LiFePO4 starter batteries (minimum capacity of LiFePO4 battery is 50A). Compatible with all known brands (e.g. Honda, Mercury, Yamaha, Suzuki etc.).

In your package: 1x Range Extender 42V05A, 1x connecting cable set (with extra connector).

Charge indicator: if the LED is 'ON' your battery is being charged.

IP Rating: IP65 waterproof.

In stock

Optimal charging profile: provides the correct charging profile (charge voltage and current) to safely charge your Rebelcell 36V battery.

Starter battery discharge protection: The RE monitors the voltage in the starter battery and will only start charging if voltage starter battery is above 13.2V and stops if voltage drops below 12.8V.

Overcharge protection: will automatically adjust the alternator output charge current to avoid overcharging of your battery.

Temperature protection: the ‘dynamic thermal output control’ limits the charge current to reduce the temperature.

Short circuit and reverse polarity protection: automatic shutdown with short circuit. Reverse polarity protection on input.

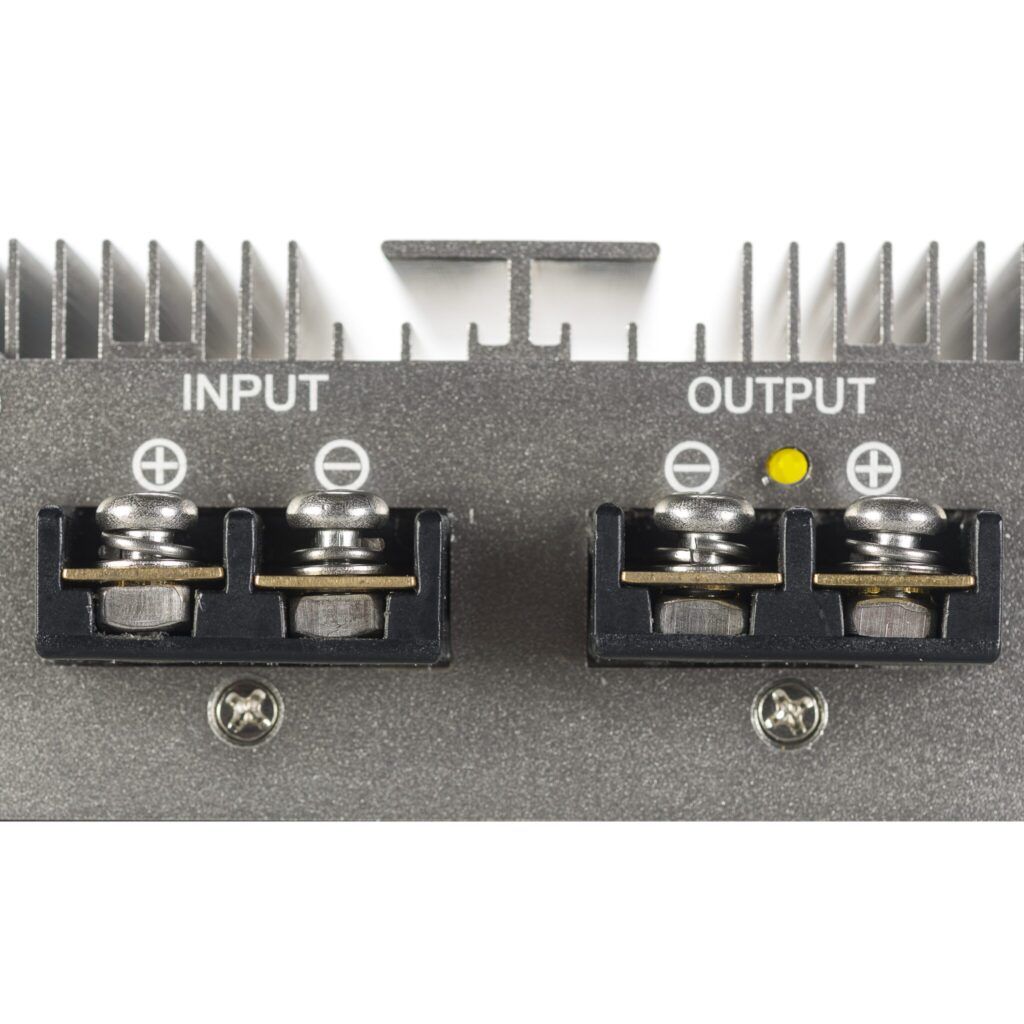

Charge indicator: if the LED on the Range Extender is 'ON' your battery is being charged.

Warranty: two years.

PLEASE REVIEW THE BELOW INFORMATION BEFORE COMPLETING YOUR ORDER

1The Range Extender is only suitable for use with (outboard) engines that meet the minimum alternator output requirements as indicated before. It is NOT suitable for use with (outboard) engines that use a charging coil instead of an alternator: the capacity is not sufficient to charge both the starter battery and Rebelcell battery. Consult the manual of your (outboard) engine for this information. Lower than specified charge current from the alternator will lead to de-activation of the Range Extender to avoid discharge of the starter battery.
2The Range Extender works with both lead-acid and LiFePO4 starter batteries (note: minimum capacity of LiFePO4 battery is 50A).
3Mount the Range Extender in accordance with the installation guidelines in a dry and cool place with sufficient space around for ventilation and cooling. Never mount it on the bottom of your boat or in a location that does not remain dry.
4Only use the Range Extender with Rebelcell 36V batteries. Using it with a different battery can lead to irreversible damage to your equipment and battery. This damage is explicitly excluded from warranty.
5Additional cables (not included) are required to connect the Range Extender to the starter battery. For specifications please see the Installation guidelines in the user manual and consult a certified electrician if you have any questions about installation.

TECHNICAL SPECIFICATIONS

Capacity

210W

Galvanic seperation

Input voltage range (alternator output)

9 – 18V

Output voltage

42V

Output charge current

Max 5A

Minimum alternator outpuot

17A

Input/ output isolated

Output Ripple & Noise

<100mV RMS

Peak efficiency

93%

Parallel connection

Temperature range

-20°C tot +80°C

Dimensions

150 x 130 x 50 (mm)

Weight

1.45 kg

Charge indicator

Yes, via LED

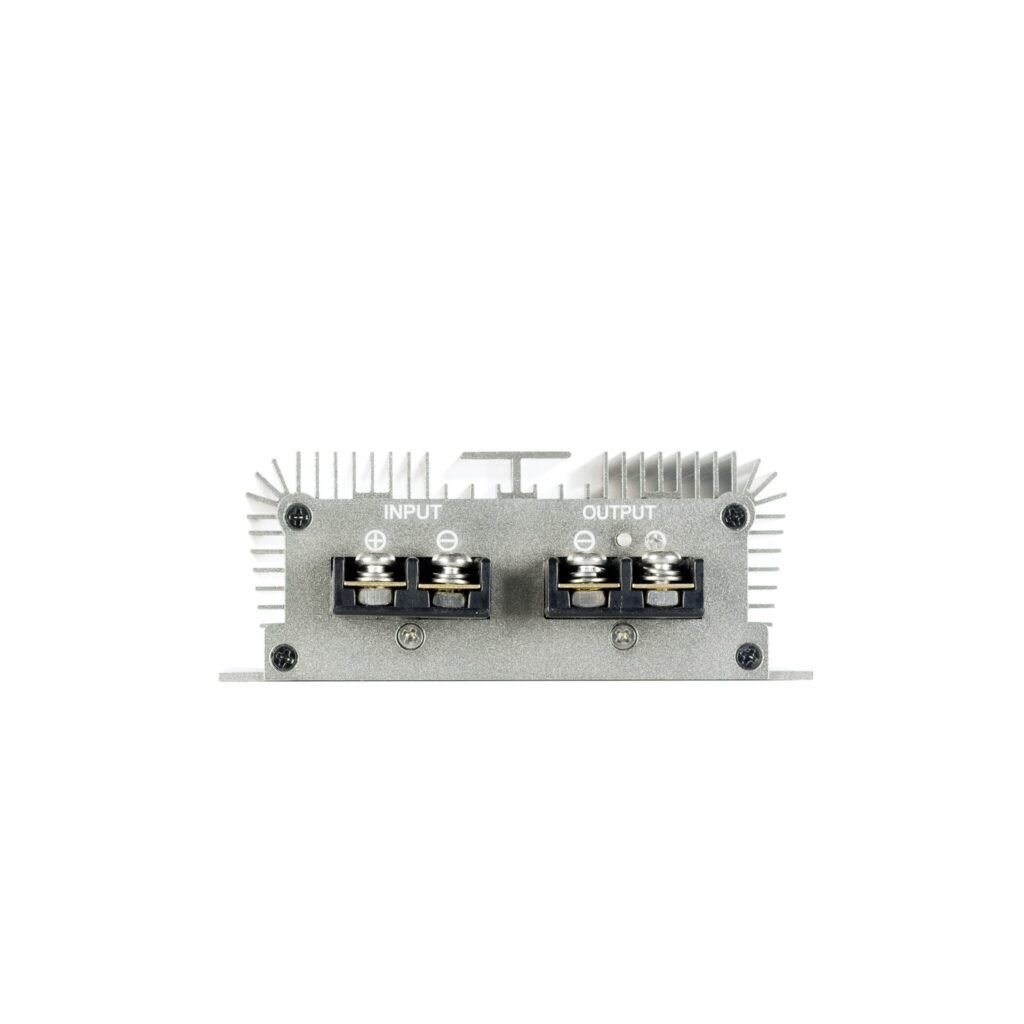

Connectors input / output

PROTECTION

Overcharge / short circuit

Yes, output only

Over voltage

Yes, output only

Reverse polarity protection

High temperature protection

Yes

Starter battery discharge protection

Yes, The RE starts charging if voltage starter battery > 13.2V and stops if voltage < 12.8V.

Input fuse

30A (internal)

Output fuse

10A (internal)

PROTECTION & CERTIFICATION

Security class (IEC 529)

IP65

Certification

CE, UKCA, RoHS (EU 2015/863 and EU 2017/2102)

EU-EMC standard

EN55032:2015/A11:2020, EN55035:2017/A11:2020, EN61000-3-2:2019/A1:2021, EN61000-3-3:2013/A2:2021

UKCA-EMC standard

BS EN55032:2015/A11:2020, BS EN55035:2017/A11:2020, BS EN61000-3-2:2019/A1:2021, BS EN61000-3-3:2013/A2:2021

Warranty

Two years

Barcode

7106623697870

EAN

8720964630977

Product code

DC42V05REWP

HS code (International / EU)

850440 / 85044060

Reviews

There are no reviews yet.

Be the first to review “42V5A Range Extender waterproof”

PRODUCT DESCRIPTION REBELCELL RANGE EXTENDER 42V5A WATERPROOF

The waterproof (IP65) Range Extender 42V05A allows you to extend your fishing day by recharging your Rebelcell 36V battery ‘on the go’ via the alternator of your outboard engine. The Range Extender is easy to install thanks to its compact size and weight and suitable for permanent fixing in your boat. It delivers an output 42V and max 5A.

The Range Extender continuously monitors the voltage in the starter battery to prevent accidental discharge, limits the alternator output current if necessary, and provides the correct charging profile (voltage, current) to safely charge your 36V battery. Thanks to the built-in LED indicator, you can easily see if your battery is charging. This Range Extender model can be used with all well-known outboard brands such as Honda, Yamaha, Mercury and Suzuki (note: the alternator of the outboard engine needs to deliver a minimum output of 17A, otherwise the Range Extender will not work!)

Note: This Range Extender (42V05A) is only suitable for use with the Rebelcell 36V batteries. Check our webshop for applicable models for 12V and 24V Range Extenders.

Product code: DC42V05REWP
Barcode: 7106623697870
EAN: 8720964630977

42V5A Range Extender waterproof

PLEASE REVIEW THE BELOW INFORMATION BEFORE COMPLETING YOUR ORDER

Reviews

PRODUCT DESCRIPTION REBELCELL RANGE EXTENDER 42V5A WATERPROOF
