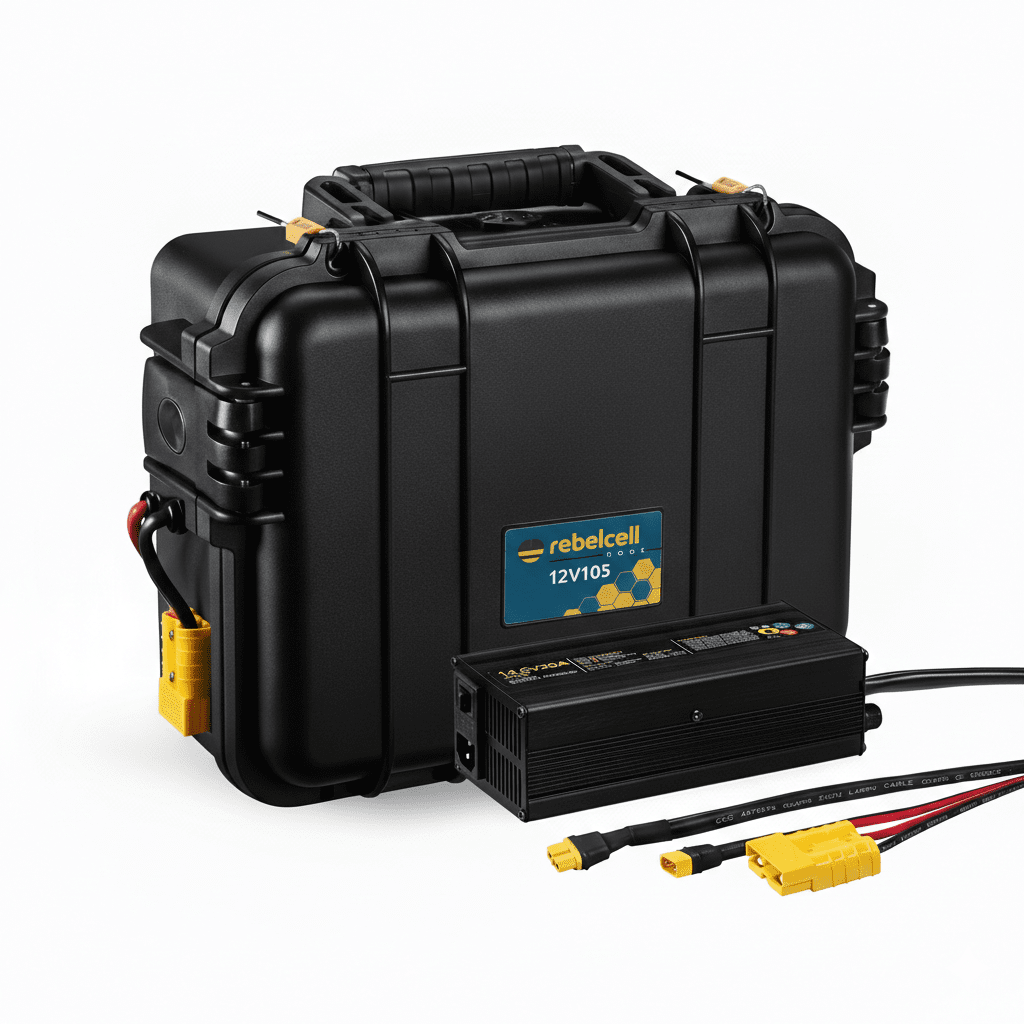

Outdoorbox EDGE 12.105 with Charger 14.6V20A LiFePO4 met XT60

Home

Products

€1,168.00

This bundle combines the Outdoorbox 12V105 EDGE with the 14.6V 20A XT60 LiFePO4 charger to deliver high-capacity, rugged portable power and fast, safe recharging. Perfect for extended outdoor use, demanding 12 V devices and reliable energy wherever you go.
Read more>

Power: 12V - 105 Amps - 1.3 kWh

Application: 12V trolling engine, depth sounders, camping

Runtime: depends on boat load, weather conditions, currents and type and use of e-motor. The ODB 12V105 EDGE replaces a lead-battery pack up to 12V210Ah (indicative runtime: 11-13 hours with 55 Lbs electric motor).

BT-App bluetooth enabled for use with Rebelcell App

In your package: Outdoorbox 12V105 EDGE, yellow Anderson SB50-connector, user manual

Stacked from 4 images. Method=B (R=7,S=3)

NEW! Outdoorbox 12V105 EDGE

NEW! The compact, robust and lightweight Outdoorbox 12V105 EDGE (12V105 Ah / 1.3 kWh) combines smart LiFePO4 technology, high performance, and superior reliability, perfect for your next outdoor adventure. Featuring bluetooth connectivity, it ensures seemless compatibility with almost all 12V trolling engines, fish finders, and camping equipment, making it the ultimate weatherproof 12V power supply.
Read more>

€999.00

In stock

Charger_14.6V20A_XT60_top_side_overview_A

14.6V20A XT60 LiFePO4 Charger

The 14.6V20A XT60 LiFePO4 charger has been specially engineered to charge Rebelcell 12V EDGE / Outdoorbox EDGE / PRO LiFePO4 batteries. The specially designed charging programme ensures that your battery is charged safely and automatically with the correct charging profile (voltage / charging current). The charger features an automatic shut-off function, LED-indicator for charging status and protection features such as short-circuit, reverse-polarity and overvoltage protection.
Read more>

€169.00

In stock

Warranty: 3 Years

In stock

Compact and lightweight: the Outdoorbox 12V105 EDGE weighs just 9.8 kg, replacing a lead-battery pack up to 12V210 Ah.

Top performance: up to 100A continuous discharge with deep discharge (up to 100%) without negative effects on performance or cycle life.

BT-App: to view charge status, current, charge cycles, estimated runtime, temperature, battery health.

Compatibility: seamless compatibility with nearly all 12V electric motors and fish finders.

High ease of use: easy connection of trolling motor, fish finder or camping-equipment. BT app to monitor battery performance.

Reliable and long life: built-in abuse protection (against deep discharge, high voltage, high temperatures etc.) by BMS. User life up to 10 seasons.

Warranty: 3 years.

PLEASE REVIEW THE BELOW INFORMATION BEFORE COMPLETING YOUR ORDER

1Only charge with the Rebelcell 14.6V20A XT60 Lithium battery charger with yellow Anderson SB50 connector. Other connector plugs are not compatible with the connector of the ODB 12V105 EDGE!
2Do not use the ODB as a starter battery for combustion engines (e.g., cars or outboard motors).
3The ODB is waterproof according to IP66 standards, making it suitable for use in rainy conditions. To prevent issues, do not submerge the Outdoorbox in water for extended periods
4Never try to open or remove the seal between the lid and the bottom of the Outdoorbox. Doing so may be dangerous and will automatically void the warranty.

TECHNICAL SPECIFICATIONS

Chemistry

Lithium

Voltage

10V-14.6V (nominal 12.8V)

Capacity (C1-C20)

105Ah

EqPb (comparable lead battery)

Up to 210Ah

Nominal energy

1.3 kWh

Energy density

137 Wh/kg

Maximum continuous discharge

100A

Cycle life (#charges) (@80%DoD)

5000

Cycle life (#charges) (@100%DoD)

7500

Dimensions (in mm)

355 x 260 x 185

Weight

9.8 kg

Connectors

2x Anderson SB50 yellow

SUITABLE CHARGERS

CHARGING TIME

14.6V20A XT60 charger with yellow Anderson SB50 connector

7-8 h.

ELECTRONICS & BMS

Charge temperature

0°C - 45°C

Discharge temperature

-20°C - 60°C

Storage temperature

0°C - 45°C

Maximum charge current

50A (CC/CV)

Cell balancing

Yes

High temperature protection

Yes

Low temperature charging protection

Yes

Maximum discharge current protection

Yes

Short-circuit protection

Yes

Reverse polarity protection

Yes

High voltage protection

Yes

Low voltage protection

Yes

State of charge indicator

Yes, via Rebelcell BT app.

BT-App

Yes, for charge status, current, estimated runtime, temperature, cycle life.

PROTECTION & CERTIFICATION

IP-standard

IP66

Certification

CE, UN38.3, MSDS, IEC60529

Warranty

Three years

Barcode

8720964631462

EAN

8720964631462

Product code

ODB12105EDGE

HS code (International / EU)

850760 / 85076000

User Manual Outdoorbox 12V45 / 12V75 / 12V105 EDGE

Reviews

There are no reviews yet.

Be the first to review “Outdoorbox EDGE 12.105 with Charger 14.6V20A LiFePO4 met XT60”

Product description Rebelcell Outdoorbox 12V105 EDGE

The compact, robust and lightweight Outdoorbox 12V105 EDGE (12V105 Ah / 1.3 kWh) combines smart technology, high performance, and superior reliability. With features such as IP66 waterproof protection, a 3-year warranty, an advanced Battery Management System (BMS) and seamless monitoring via the Rebelcell BT app, the Outdoorbox is the ultimate weatherproof power supply: energy supply for 12V electric motors, fish finders and camping.

Key Features:

Rugged Outdoor Design: Impact-resistant and waterproof (IP66) casing for dependable use in any condition.
Bluetooth Connectivity: Fully compatible with the Rebelcell BT-app for realtime monitoring of charge status and battery performance (including estimated remaining runtime in minutes / hours).
Seemless compatibility: seemless compabitility with all 12V trolling engines and fish finders.
High-quality LiFePO4 cells: for long service life and safety.
Advanced protection: integrated Battery Management System (BMS) with advanced safety features.
Warranty: 3 year warranty.

Applications

Ideal For: Electric boating, carp fishing, kayak fishing, belly boats, marine, camping.
Versatile Use: Power 12V trolling motors, fish finders, and outdoor devices.

Not sure whether to go for a regular lithium battery or an Outdoorbox? On our knowledge base, we list all the advantages an outdoor box has!

Product code: ODB12105EDGE

Barcode: 8720964631462

EAN: 8720964631462

PRODUCT DESCRIPTION REBELCELL 14.6V20A XT60 LiFePO4 BATTERY CHARGER

The 14.6V20A XT60 LiFePO4 charger has been specially engineered to charge Rebelcell 12V EDGE / Outdoorbox EDGE / 12V PRO LiFePO4 with XT60 connector for both M8 connectors and ANEN Yellow SB50 connector. The specially designed charging programme ensures that your battery is charged safely and automatically with the correct charging profile (voltage / charging current). The charger shuts off automatically when the charging process is completed.

You can easily monitor the status of the charging process via the LED indicator on the charger. The charger is equipped with a number of protection features such as short-circuit, reverse-polarity and overvoltage protection.

If you charge other batteries than specified, (irreparable) damage may occur. The charger is designed for indoor use only and is not waterproof. If you need a charger for permanent fixing in your boat, check our waterproof charger here. You can find more information on our chargers in our knowledge base.

Indicative charging times
Outdoorbox 12.105 EDGE: 7-8h.

Product code: LC14V20XT60

Barcode: 8720964631561

EAN: 8720964631561
