On Sale

€599.00 €599.00

Compact, robust and lightweight Outdoorbox 12.50 AV. This Outdoorbox is ideal for use in carp angling, belly boat and kayak. The 12.50 AV Outdoorbox has an integrated 12V50 Ah lithium battery – 634Wh, is waterproof (IP65), is packed in a robust impact-resistant case and weighs only 5.0Kg.
Read more>

  • Power: 12V - 50 Amps - 634 Wh
  • Application: 12V electric outboard engine to 55 Lbs, depth sounders, waterside energy needs.
  • Runtime: depends on boat load, weather conditions, currents and use of e-motor. The ODB 12.50 AV replaces a lead-battery pack up to 12V105Ah (indicative runtime: 4-5 hours with 55 Lbs electric motor).
  • Included: Outdoorbox 12.50 AV, extra blue ANEN connector, USB-charger, user manual

Warranty: 2 Years

Quantity

In stock

SKU: 7106623694886
  • Compact & lightweight: the Outdoorbox weighs just 5.0 kg, while it replaces a lead-battery pack up to 12V105Ah.
  • Top performance: more power and high thrust even when battery is nearly empty, deep discharge (up to 100%) without negative effects on performance or cycle life.
  • Low costs: up to 50% lower battery cost per year compared to lead batteries.
  • High Ease of Use: 1 click connection of trolling engine. Waterproof (IP65). Full recharge in less than 4 hours with 20A charger. 12V socket, separate USB charger + extra blue ANEN connector for trolling engine.
  • Reliable and long life: built-in abuse protection (against deep discharge, high voltage, high temperatures etc.) by BMS. Integrated 10A / 60A circuit breaker. User life up to 10 seasons.
  • Warranty: 2 years.

PAY ATTENTION! READ THE FOLLOWING INFORMATION BEFORE PURCHASING THE PRODUCT:

Weight 4.9 kg
Target

, , ,

PLEASE REVIEW THE BELOW INFORMATION BEFORE COMPLETING YOUR ORDER

  • 1Only charge with a Rebelcell li-ion battery charger with CC/CV charge profile (12.6V max 20A) with blue ANEN connector plug. Other connector plugs (e.g. the grey of yellow ANEN connector plug) are not compatible with the connector of the Outdoorbox

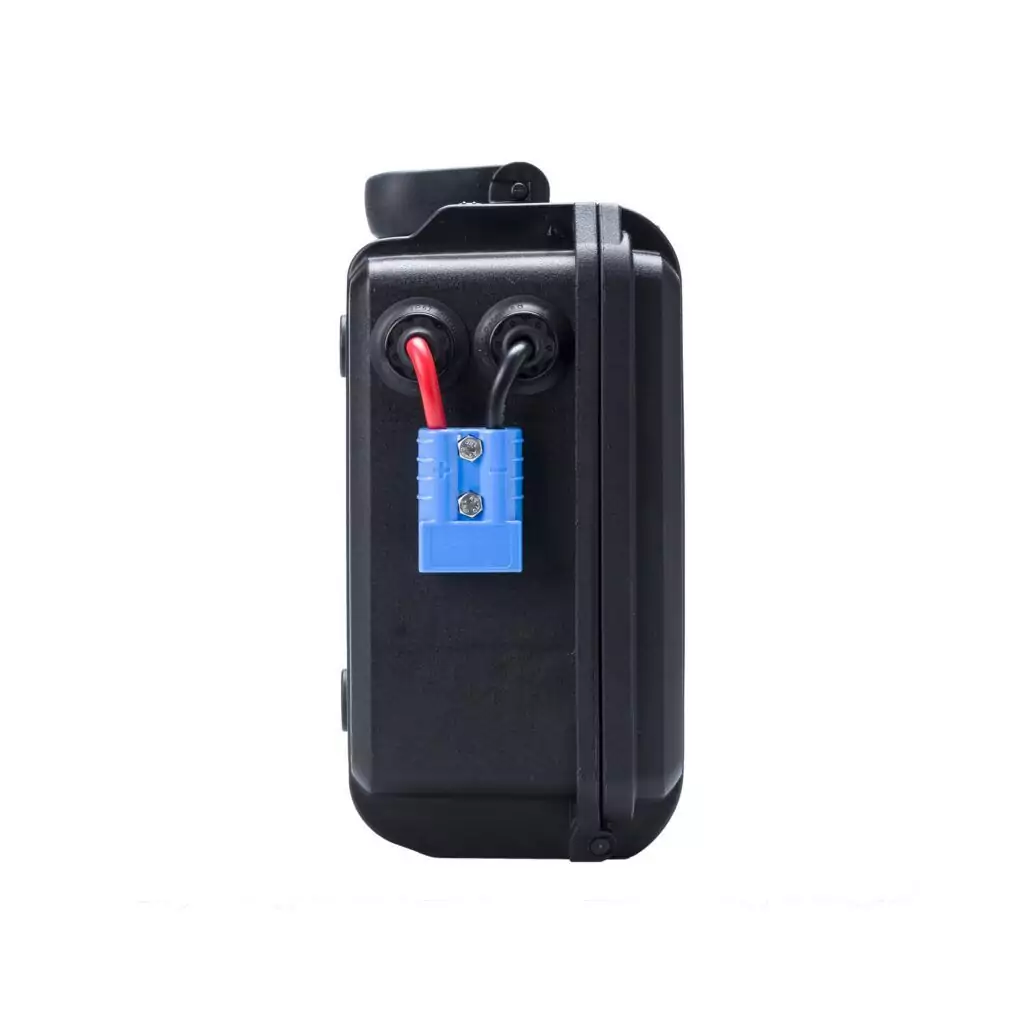

  • 2Only use the blue ANEN connector plug to connect your trolling motor to the Outdoorbox. Never connect your e-motor via the 12V socket, it is not suitable!

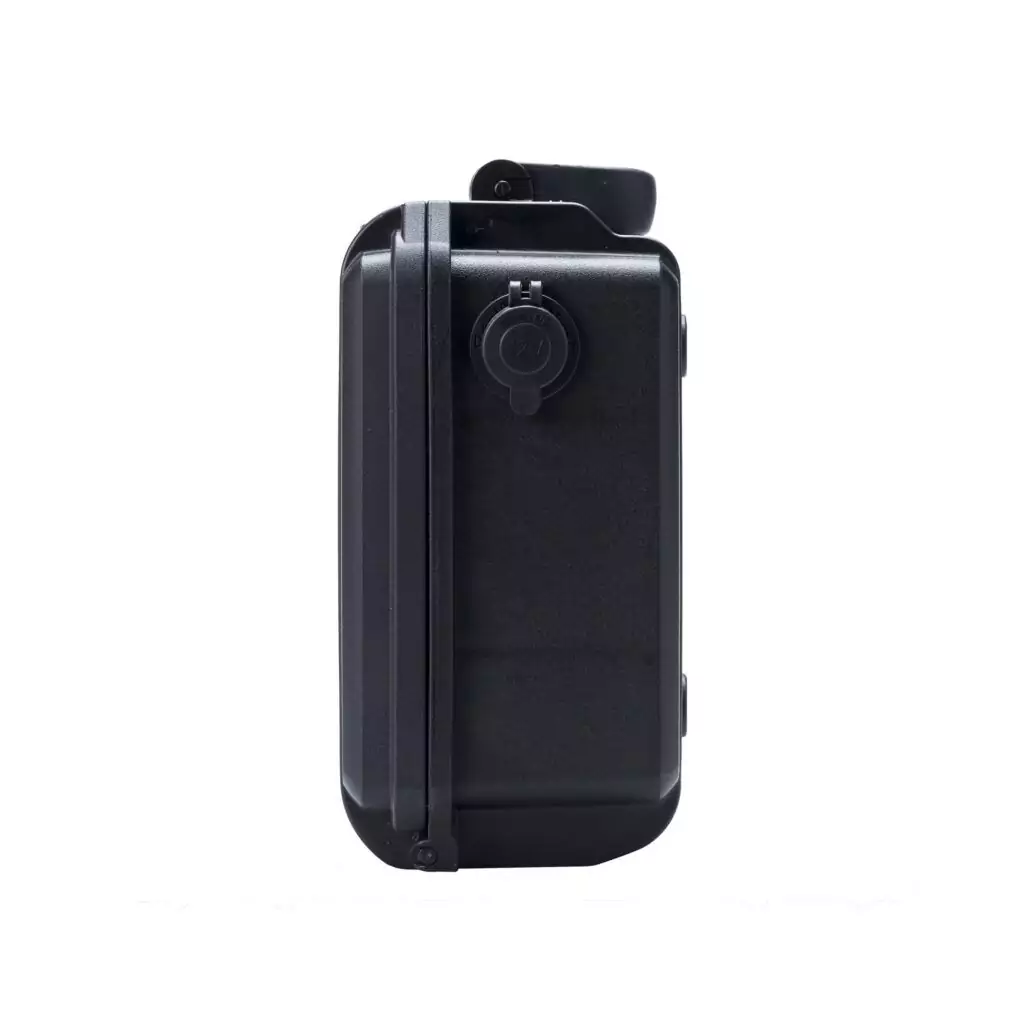

  • 3The Outdoorbox 12.50 AV is waterproof according to the IP65 standard and is suitable for use in rainy conditions. Please ensure that the Outdoorbox 12.50 AV is completely closed and there is no dirt in between the two parts of the case.  Also ensure that the 12V power socket is never fully immersed in water! This socket is splash waterproof if fully closed, but cannot be fully immersed in water.
TECHNICAL SPECIFICATIONS
Chemistry
Lithium
Voltage
9.0V-12.6V (nominal 11.1V)
Capacity (C1-C20)
50Ah
EqPb (comparable lead battery)
up to 105Ah
Nominal energy
634 Wh
Energy density
127 Wh/kg
Maximum continuous discharge
50A
Cycle life (#charges) (@80%DoD)
1500
Cycle life (#charges) (@100%DoD)
1000
Dimensions (in mm)
258 x 243 x 118
Weight
5.0 kg
Connector
ANEN blue
SUITABLE CHARGERS
CHARGING TIME
12.6V10A Lithium charger for Outdoorbox
6-7 h.
12.6V20A Lithium charger for Outdoorbox (Normal or Waterproof)
3-4 h.
ELECTRONICS & BMS
Charge temperature
0°C - 45°C
Discharge temperature
-20°C - 60°C
Storage temperature
0°C - 45°C
Maximum charge current
20A (CC/CV)
Integrated cell balancing
Yes
Temperature protection
Yes
Maximum discharge current protection
Yes
High voltage protection
Yes
Low voltage protection
Yes

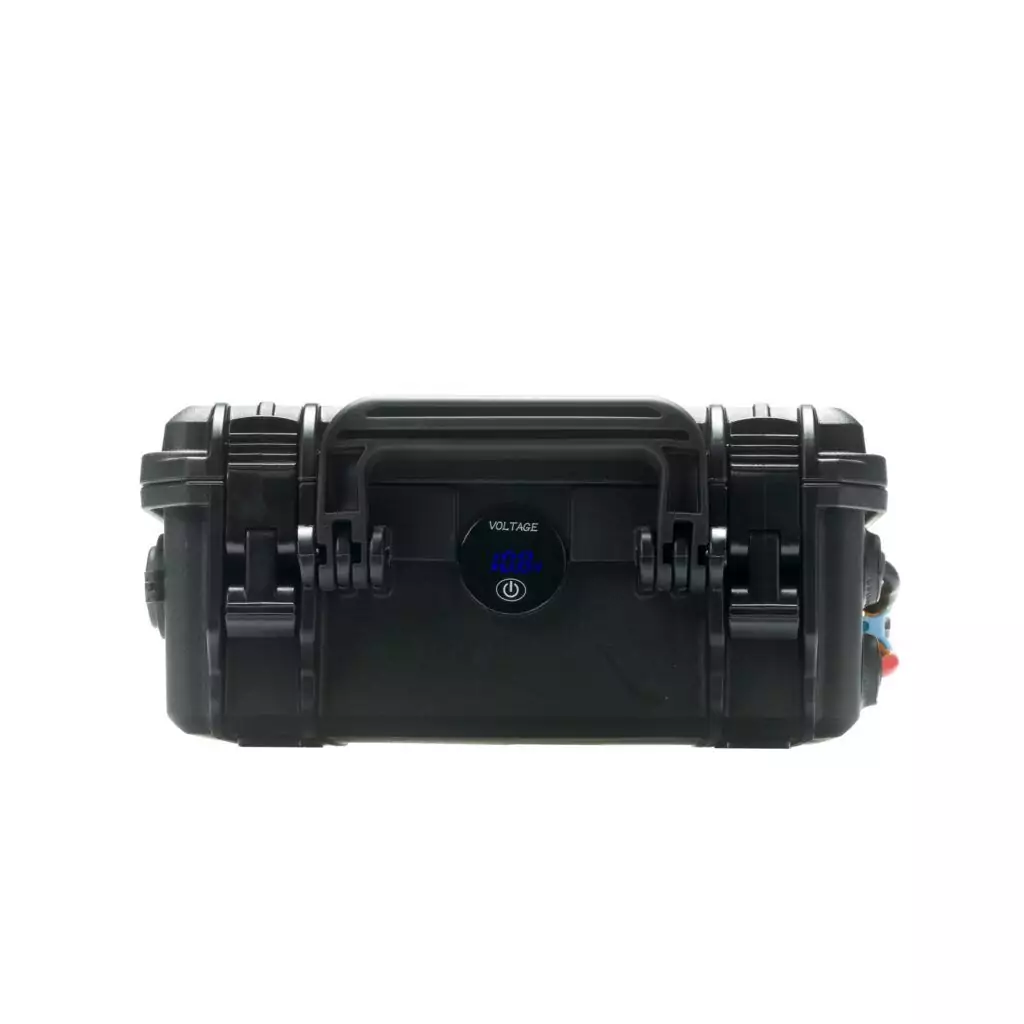

State of charge indicator
Yes, digital (% / voltage)
ANEN connector for e-motor
Yes (with 60A thermal fuse)
USB charger
Yes, separate
12V socket
Yes, (with 10A thermal fuse)
PROTECTION & CERTIFICATION
Standards (IEC 529)
IP65
CE-certificate
Yes
Warranty
Two years
Barcode
7106623694886
EAN
8720964630069
Product code
12050ODBAV
HS code (International / EU)
850760 / 85076000

User Manual Rebelcell Outdoorbox 12.50 AV

Reviews

There are no reviews yet.

Be the first to review “Outdoorbox 12.50 AV”

Your email address will not be published. Required fields are marked *

Product description Rebelcell Outdoorbox 12.50 AV

Compact, robust and lightweight Outdoorbox 12.50 AV. Thanks to its robust, impact-resistant and waterproof casing, this Outdoorbox is ideal for use in carp fishing, belly boat and kayak. The 12.50 AV Outdoorbox has an integrated 12V50 Ah lithium battery – 634Wh, weighs only 5.0Kg and features a digital charge status indicator.

  • Application: 12V trolling engine to 55 Lb, depth sounder, outdoor power supply
  • Protection: protected against water (IP65)
  • Expected use: carp fishing, bellyboat, kayak

Due to the adapted voltage, this Outdoorbox can be used without any problems with any trolling motor (12V). Curious about which Outdoorbox you need for your engine, fishfinder or depth sounder? Our knowledge base – the right battery for my engine or our knowledge base – the right battery for my fishfinder will provide all your answers.

The Outdoorbox is completely maintenance-free and has as many as 1000 charge-cycles. That means 1,000 charges and discharges. It is significantly lighter than a comparable lead battery and has a much lower annual loss. Thanks to the built-in Battery Management System, you never have to worry about discharging the battery too deeply and damaging it.

Not sure whether to go for a regular AV battery or an Outdoorbox? On our knowledge base, we list all the advantages an outdoor box has!

Product code: 12050ODBAV

Barcode: 7106623694886

EAN: 8720964630069
